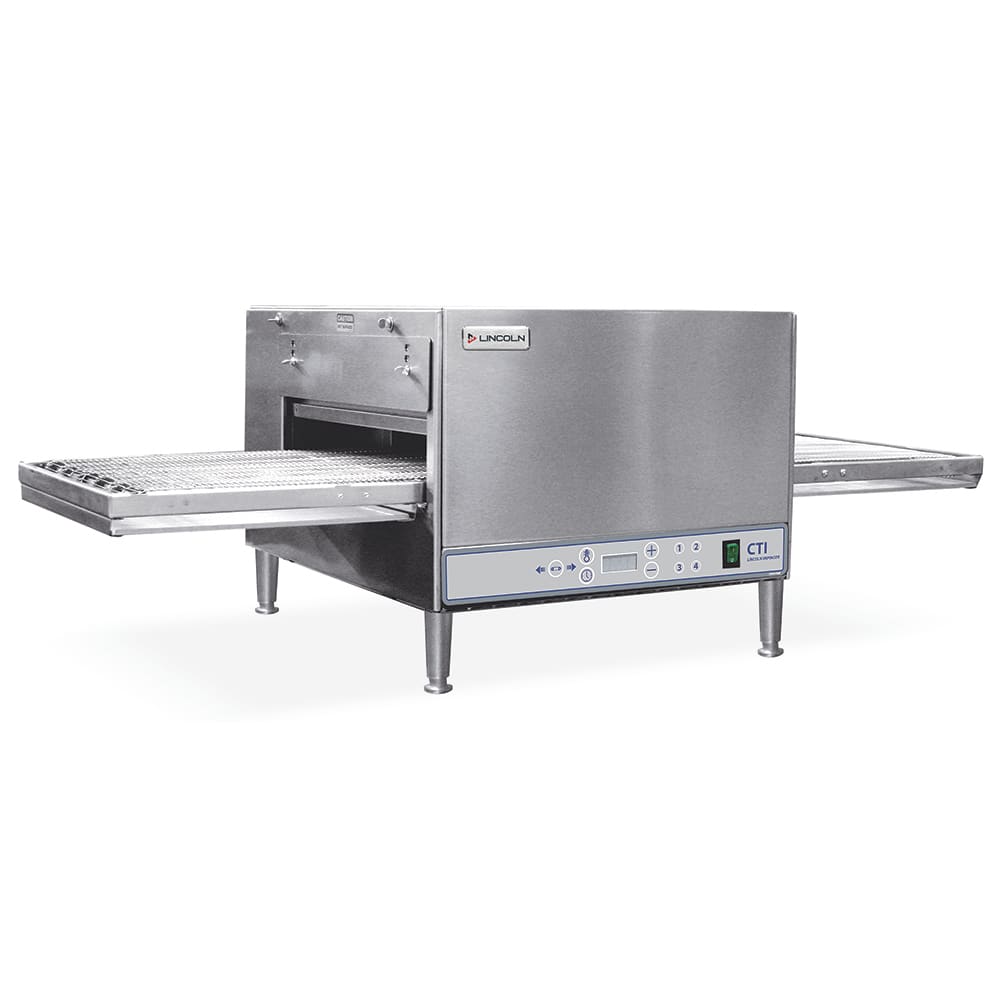

Lincoln 2502/1346 50" Countertop Impinger Conveyor Oven - 240v/1ph

Image may not depict product color, inclusions or accessories.

KaTom #: 054-25021346 • MPN: 2502/1346
Ships Free

Typically ships within 4 - 8 business days

(0 reviews)Write a Review
Price: $6,463.00
Login or call us for more info!

Image may not depict product color, inclusions or accessories.

Lincoln 2502/1346 Description


The Lincoln 2502/1346 countertop Impinger® conveyor oven cooks product with hot pressurized air. Since the air fingers send heat to the product from the top and bottom, cook times are quick. The self-contained heating system is easy to service since all the components are built together. Temperatures range from 200 to 550 degrees Fahrenheit. On the 50-inch conveyor, product is moved through a 20-inch oven, ensuring an even heat while improving product flow and reducing labor needs.

To meet varying demands, the speed and direction of the conveyor can be adjusted with the digital controls. Four preset menu buttons make the unit easy to operate. The controls provide the current time and temperature in the oven, and since they are located on the lower front, they are easy to access. Simplifying the cleaning process, the exterior of the Lincoln 2502/1346 countertop Impinger conveyor oven is made of stainless steel.

Product Details

  • Hot pressurized air surrounds food to provide quick cook times and crispiness
  • Air fingers provide air above and below the conveyor for even heat
  • Removable fingers make cleanup easy
  • Self-contained heating system is easy to service
  • Temperatures range from 200-550 degrees F
  • Stainless steel exterior construction resists corrosion and simplifies cleanup
  • Crumb pans facilitate cleaning since they collect liquid and food particles
  • (4) 4-in. legs provide ventilation
  • Requires a 24-in. clearance on both sides from other equipment
  • Requires a 6-in. clearance from combustible surfaces
  • 240 V/60 Hz/1 ph, 5600 W, 24 A, 6 kW, NEMA 6-50 plug
  • Overall Dimensions: 50 in. W x 3114 in. D x 18 in. H
  • cULus and UL-EPH listed

50-in. Conveyor Features

  • Product is moved through the 20-in. oven by the 50-in. conveyor belt
  • Helps create an even heat for each item
  • Improves product flow while reducing labor needs
  • Flexible design glides through the oven easily
  • Made of stainless steel to resist minor damage and corrosion
  • Robust stepper motor is durable for commercial applications
  • Can be removed for cleaning
  • Conveyor Dimensions: 50 in. L x 16 in. W

Digital Controls

  • Positioned on the lower front to make it easy to reach and use
  • Controls can be programmed and adjusted to fit certain demands
  • Speed and direction of the conveyor can be adjusted
  • Easily make adjustments to the temperature
  • Provides the current time and temperature
  • Easy to operate with 4 preset menu buttons
  • Convenient On/Off switch

Lincoln Impinger® Countertop Oven, electric, single-deck, with extended 50" conveyor, digital controls, 240v/60/1-ph, 24.0 amps, 3 wires, 6.0 KW, cULus, UL EPH

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

Lincoln 2502/1346 Specifications

PDF Spec Sheet
Manufacturer Lincoln
Belt Length (in) 50
Belt Width (in) 20
Heat Electric
Stacking Options Single
Type Countertop
Hertz 60
Voltage 240
Phase 1
Product Impinger Oven
Product Type Cooking Equipment
Weight 203.00
Lincoln 2502/1346 Certifications
  • UL
  • NSF
