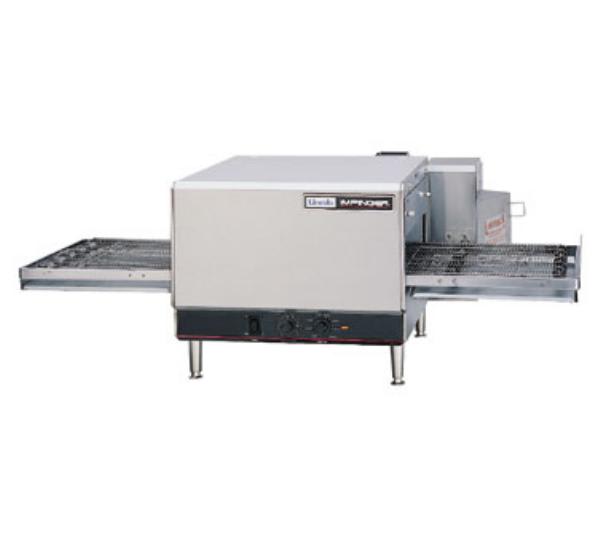

Lincoln 1301/1353 35" Countertop Impinger Conveyor Oven - 208v/1ph

KaTom #: 054-13011353 • MPN: 1301/1353

Extended Lead Time (14+ days)

(0 reviews)Write a Review
Retail Price: $6,554.00

Lincoln 1301/1353 Description

With a 16 inch wide conveyor belt, this impingement oven is a good choice for cooking pizzas, sandwiches, pasta dishes and more. The impingement cooking design of this oven gives quicker cooking than a conventional or a convection oven by surrounding the food with pressurized hot air that is forced through four distribution fingers. The 5600 watt heating element and the axial-type fan powered by a 1/10 horsepower AC motor provide plenty of power for rapid cooking. A stackable design allows for units to be stacked two high, freeing up space in the kitchen. The stainless steel exterior and conveyor belt are easily cleaned with a damp towel.

Product Details

  • Electric countertop conveyor oven with 31-in. long conveyor belt
  • 16-in. wide conveyor belt allows it to accommodate large items like pizzas
  • Self-contained heating system with a 5600W heating element
  • Impingement cooking design uses pressurized hot air which surrounds the food, allowing for rapid cooking
  • Can cook and bake 2 to 4 times as much food as a similar-sized conventional oven
  • Axial-type fan powered by a 1/10 hp AC motor forces air through 4 distribution fingers—2 above and 2 below the conveyor
  • Air distribution fingers allow for heat to be adjusted and controlled by zoning
  • Stackable design allows for up to 2 units to be placed on top of each other, freeing up space
  • Cooking time is adjustable from 1-min. to 24-mins.
  • Conveyor belt is powered by a direct-drive DC motor
  • Front mounted controls are easy to reach
  • Fuses for controls and blower motor are mounted on the side of the control box for easy access
  • 208 V/60 Hz/1-Ph, 29A, 6 KW, plug and cord not included, professional installation required
  • Overall Dimensions: 35-3/8 in. W x 31-1/4 in. D x 18-in. H
  • cULus Listed; NSF Certified
  • Note: Ventilation recommended, but not required

Easy to Clean

  • Stainless steel exterior is easily cleaned with a damp towel
  • Flexible stainless steel conveyor belt is easy to clean and durable
  • Crumb pans below conveyor belt allow for quick clean-up of debris that may have fallen
  • Air distribution fingers and conveyor are removable for easy access when cleaning

Lincoln Impinger Countertop Oven, electric, single deck, with standard 31" conveyor, standard CTI, UL/CSA, 208V/60/1PH, 29.0 amps, 3 wires, 6.0kW

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Lincoln 1301/1353 Specifications

PDF Spec Sheet
Manufacturer Lincoln
Belt Length 35
Belt Width 16
Heat Electric
Stacking Options Single
Type Countertop
Voltage 208/60/1
Weight 203.00
Lincoln 1301/1353 Certifications
  • UL
