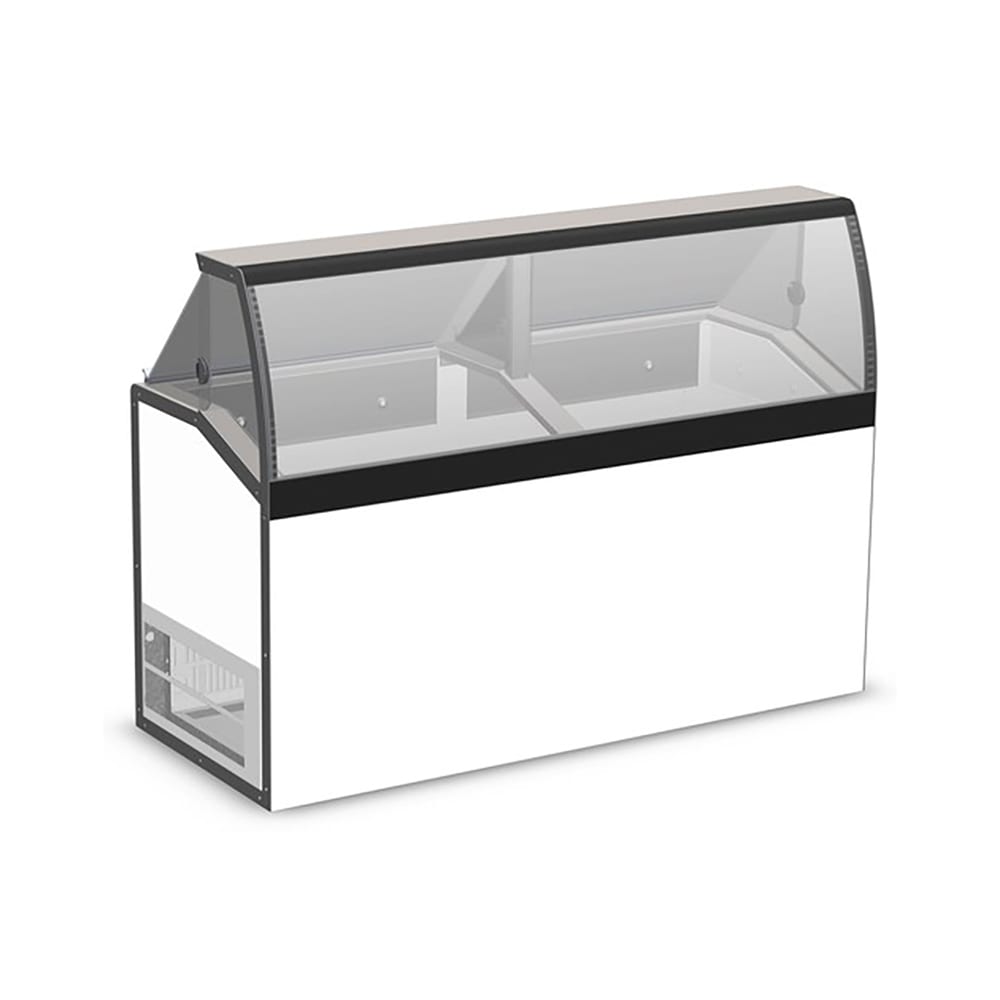

Master-Bilt DD-66LCG 69 1/4" Low Curved Glass Stand Alone Ice Cream Dipping Cabinet w/ 20 Tub Capacity - White, 115v

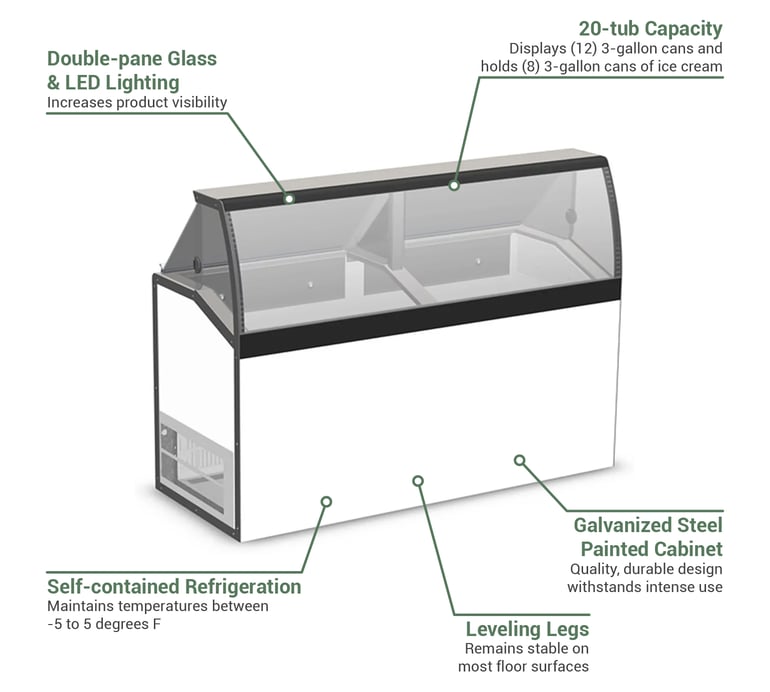

The Master-Bilt DD-66LCG ice cream dipping and display cabinet comes with a white textured finish. To ensure product visibility, this unit is constructed with a tempered, double-pane viewing glass and side panels. This unit can display (12) 3-gallon tubs and hold (8) 3-gallon tubs—all supported with epoxy-coated racks. The serving deck is made of stainless steel for simple cleaning at the end of the day, and the LED interior light illuminates the whole cabinet. A front grille is not needed because this unit takes in and puts out air from the rear.

The drain at the bottom of the Master-Bilt DD-66LCG WH cabinet has a garden hose connector to ease cleaning. While there is no requirement for clearance on the sides of the ice cream dipping and display cabinet, the back, front, and top must have room to be opened for operator and customer access. This heavy-duty unit is built with a self-sufficient refrigeration system that uses R290 hydrocarbon refrigerant to hold conditions between -5 and 5 degrees Fahrenheit. The walls and floor are foamed in with urethane for temperature retention. Through use, this unit can furnish most floor plans with its leveling legs.

Product Details

1
• Display (12) 3-gal. tubs and hold (8) 3-gal. tubs
• Epoxy-coated wire support racks
• Front, back, and top need to be in an open space for operator and customer access
• Rear air intake and output
• Independent light switch turns unit on or off

Cabinet Construction

• Tempered viewing glass and side panels
• Stainless steel top structure
• Stainless steel serving deck resists corrosion
• Compartment lids are hinged and made of transparent acrylic
• White textured finish inside and out
• 2¹⁄₂-in. foamed-in-place urethane insulation in floor
• 3-in.-thick insulation in walls
• Leveling legs included
• Garden hose connector on the drain

Refrigeration System

• Bare-tube condenser coil
• Condenser screen is removable
• Cold-wall evaporator
• Standard electronic controller
• Temperature holding range: -5 to 5 degrees F
• R290 hydrocarbon refrigerant/li>

Dimensions & Utilities

• 69¹⁄₄ in. W x 27¹⁄₂ in. D x 50 in. H
• 7.2 A, ⁵/₆ HP
• 115 V/60 Hz/1 ph, 10-ft. cord with a NEMA 5-15 P plug

Product Features

*Free shipping on Master-Bilt DD-66LCG within the 48 contiguous states.

From The Manufacturer

Ice Cream Dipping/Display Cabinet, low-glass, (12) 3 gallon can display, (8) 3 gallon storage, painted galvanized steel interior and exterior, 50" high stainless steel serving deck, curved glass view windows, LED interior lighting switch, temperature range 5° to -5°F, 5/6 HP, 115v/60/1-ph, 7.2 amps, NEMA 5-15P, cULus, UL EPH Classified

*Image may not depict product color, inclusions or accessories.

2-year Limited Parts & Labor; 5-year Compressor

Master-Bilt DD-66LCG Specifications

Documents

Spec Sheet

Warranty

Manual
