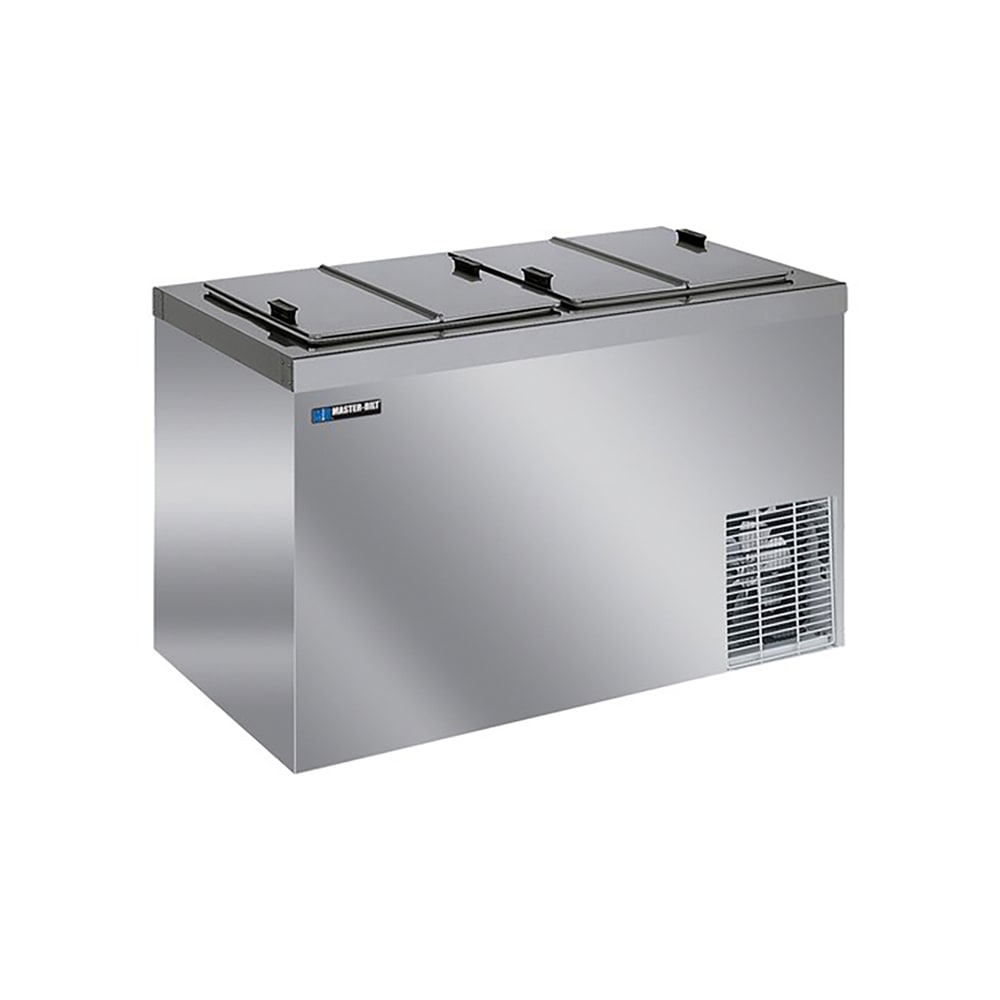

Master-Bilt DC-8DSE 54 3/4" Stand Alone Ice Cream Dipping Cabinet w/ 19 Tub Capacity - Stainless, 115v
QUICK SHIP: Typically ships in 1 - 3 Business Days
$4,782.75 /Each
Selected Color: Stainless Steel
White Glove Delivery
Contact your sales rep for availability
Attention: Order by 06-01-2025 to save before the price increases!
Master-Bilt DC-8DSE Description
The Master-Bilt DC-8DSE stand alone ice cream dipping cabinet has a 19-tub capacity, displaying 11 3-gallon cans and storing eight 3-gallon cans simultaneously. At the top of the unit are four hinged lids designed to open and close with integrated handles so employees can smoothly dip products. These lids are made of impact-resistant stainless steel and feature heavy-duty gaskets for a secure, reliable closure. The cabinet is made of 24-gauge galvanized stainless steel, while the interior and liner sport the same material for abrasion resistance. This unit retains cold conditions with the assistance of 21/4-inch, foamed-in-place urethane to reduce operational costs.
The self-contained refrigeration of the Master-Bilt DC-8DSE stand-alone ice cream dipper makes it simple to install. Via the forced draft hermetic condenser, this dipping cabinet operates at a set temperature between -10 and 10 degrees Fahrenheit. Its built-in cold-wall evaporator holds even temperatures throughout the cabinet, and because it eliminates the need for air blowing, it maintains the texture and quality of ice cream and gelato. It’s heavy-duty design measures 54 inches wide and stands stable on leveling legs.
Product Details
- 19-tub capacity
- Stainless steel exterior cabinet
- Galvanized steel interior
- Stainless steel tops feature anti-condensate heaters
- Flip-lid opening via handles
- Heavy-duty gaskets
- 21/4-in. foamed-in-place urethane
- Leveling legs
- Floor drain with garden hose fitting
Refrigeration System
- Self-contained, factory-tested refrigeration system
- R290 hydrocarbon refrigerant
- Cold-wall evaporator
- Force-draft hermetic condensing unit
- Temperature holding range: -10 to 10 degrees F
Dimensions & Utilities
- 54 in. W x 301/8 in. D x 341/8 in. H
- 3.6 A, 1/3 HP
- 115 V/60 Hz/1 ph, 9-ft. cord with NEMA 5-15P plug
Product Features
*Free shipping on Master-Bilt DC-8DSE within the 48 contiguous states.
From The Manufacturer
Ice Cream Dipping Cabinet, dip (11) 3 gallon, store (8) 3 gallon, cold-wall evaporator, stainless steel exterior cabinet, galvanized steel interior, stainless steel top with anti-condensate heater, flip lid, temperature range 10° to -10°F, 1/3 hp, 115v/60/1-ph, 3.6 amps, 9' cord, NEMA 5-15P, cULus, NSF
*Image may not depict product color, inclusions or accessories.
Master-Bilt DC-8DSE Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Master-Bilt |
| Application | Stand Alone |
| Capacity (3 gal cans) | 19 |
| Color | Silver |
| Containers | Tubs |
| Depth (in) | 30.13 |
| Design | Flip-Lid |
| Height (in) | 34.13 |
| Hertz | 60 |
| Phase | 1 |
| Product | Ice Cream Freezers |
| Product Type | Commercial Refrigeration |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Refrigeration Type | Cold Wall |
| Special Features | Cold Storage |
| Type | Dipping Cabinet |
| Voltage | 115 |
| Warranty | 2-year Limited Parts & Labor; 5-year Compressor |
| Width (in) | 54 |
| Weight | 365.00 |
