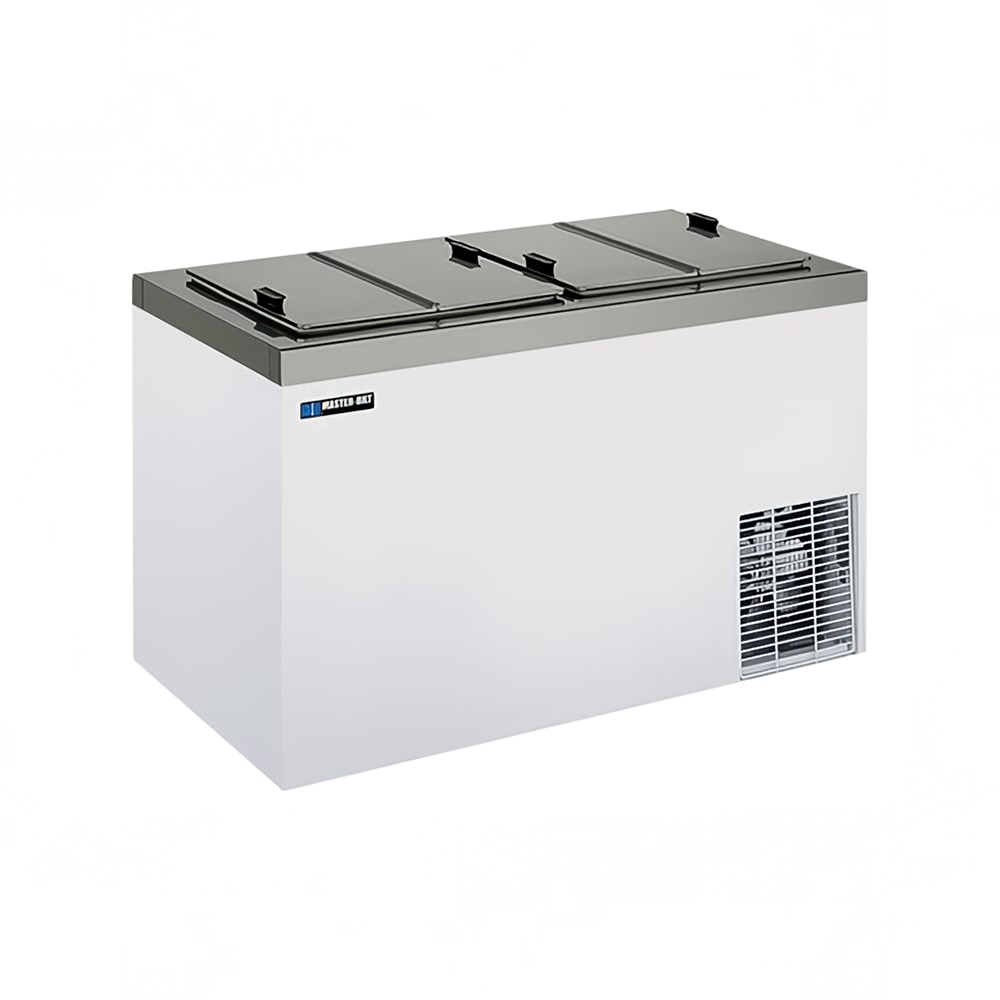

Master-Bilt DC-8D 54" Stand Alone Ice Cream Dipping Cabinet w/ 19 Tub Capacity - White, 115v

The Master-Bilt DC-8D ice cream dipping freezer holds (19) 3-gallon tubs of ice cream at -10 to 10 degrees Fahrenheit, ensuring the perfect texture for ice cream, gelato, sorbet, and more while preventing product from melting. Cold air is kept inside the cabinet using urethane insulation measuring 2¹⁄₄ inches thick and foamed in place to give the cabinet structure. Heaters beneath the stainless steel top cap prevent condensation, which keeps a clear line of visibility and maintains product quality. This cabinet requires a minimum clearance of 4 inches between the rear and the wall or other surfaces.

The interior of the Master-Bilt DC-8D standalone ice cream dipping cabinet is made of galvanized steel for durability. The cold-wall evaporator ensures the entire unit is consistently cooled without the use of a fan. The four stainless steel lids are hinged and have gaskets that keep cold air inside the unit, ensuring the ice cream dipping freezer can efficiently hold ice cream and other frozen foods.

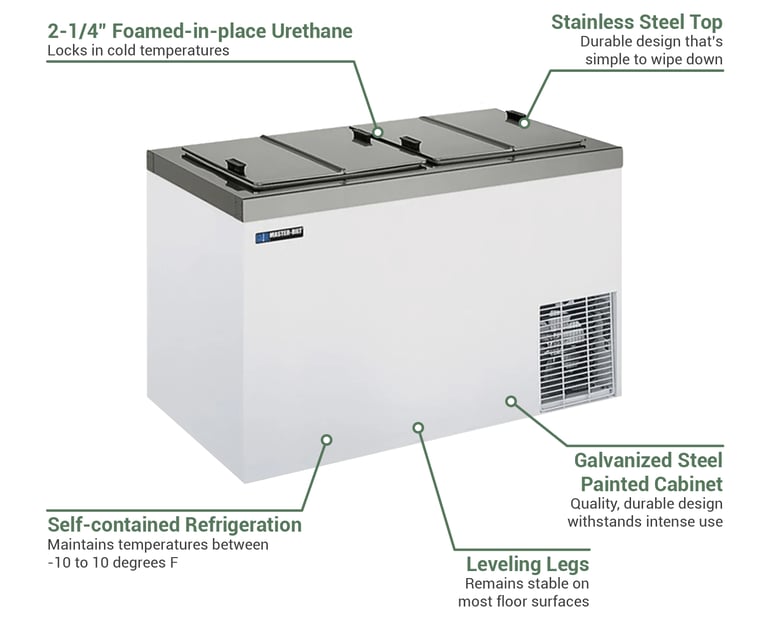

Product Details

• Dip (11) 3-gal. cans and store (8) 3-gal. cans
• 4 hinged stainless steel lids have handles that ease opening and closing
• Gaskets on the lids keep cold air inside the unit
• Stainless steel top cap is surrounded by heaters to prevent condensation
• Stainless steel top
• Inner liner made of galvanized steel
• Cabinet interior and exterior are galvanized steel
• 2¹⁄₄-in.-thick urethane insulation
• Floor drain in the cabinet has a garden hose for easy cleaning
• 4-in. clearance required in rear
• Leveling legs

Refrigeration System

• Temperature holding range: -10 to10 degrees F
• Self-contained refrigeration system helps maintain even temperatures
• Force-draft hermetic condensing unit is accessible for maintenance and service
• Cold-wall evaporator maintains set temperatures without fan
• R290 hydrocarbon refrigerant keeps temperatures cool

Dimensions & Utilities

• 54 in. W x 30¹⁄₈ in. D x 34¹⁄₈ in. H
• 3.6 A, ¹⁄₃ HP
• 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug

Product Features

*Free shipping on Master-Bilt DC-8D within the 48 contiguous states.

From The Manufacturer

Ice Cream Dipping Cabinet, dip (11) 3 gallon, store (8) 3 gallon, cold-wall evaporator, painted galvanized steel exterior, galvanized steel interior, stainless steel top with anti-condensate heater, flip lid, temperature range 10° to -10°F, 1/3 hp, 115v/60/1-ph, 3.6 amps, 9' cord, NEMA 5-15P, cULus, NSF

*Image may not depict product color, inclusions or accessories.

2-year Limited Parts & Labor; 5-year Compressor

Master-Bilt DC-8D Specifications

Documents

Spec Sheet

Warranty

Manual

Installation Guide
