Master-bilt DC-4D 30.63" Stand Alone Ice Cream Freezer w/ 5 Tub Capacity & 2 Tub Storage, 115v

Image may not depict product color, inclusions or accessories.

KaTom #: 050-DC4D • MPN: DC-4D

Extended Lead Time (14+ days)

(0 reviews)Write a Review
Price: $2,262.00
Call Us For Pricing

Image may not depict product color, inclusions or accessories.

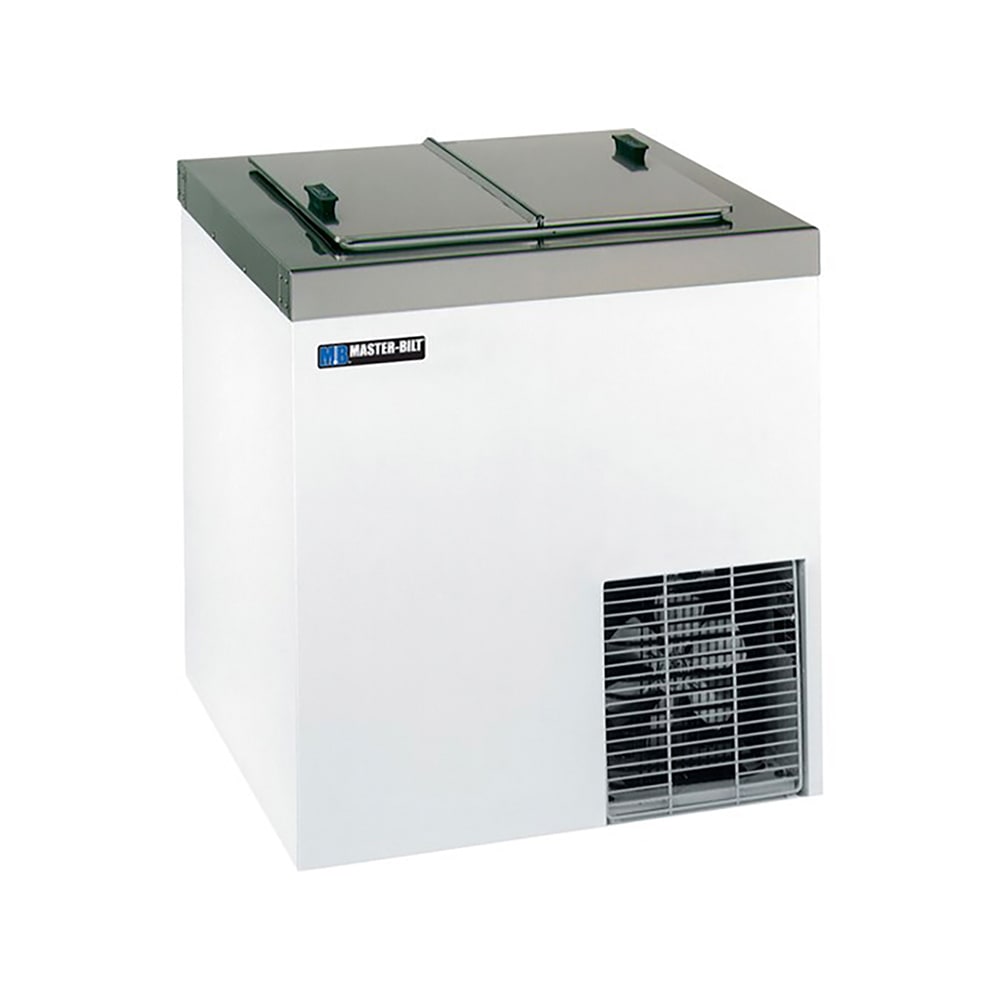

Master-bilt DC-4D Description


The Master-Bilt DC-4D ice cream storage and dipping cabinet stays cool with the self-contained refrigeration system that uses R-134A refrigerant and a temperature range of -10 to 10 degrees Fahrenheit. Cold air stays inside the cabinet because it is insulated with 214 inches of urethane that is foamed in place, also making the cabinet rigid. The galvanized steel interior and exterior are durable and scratch resistant. Cleaning the interior of the cabinet is simple since there is a floor drain with a garden hose fitting. Gaskets on the lids keep cold air from escaping the cabinet. The stainless steel lids are hinged with handles so opening them is easy. The Master-Bilt DC-4D ice cream storage and dipping cabinet has leveling legs so it can be installed on uneven flooring.

Product Details

  • -10-10 degrees F temperature range
  • Heaters are built under the stainless top cap to prevent condensation
  • Stainless steel lids are hinged with handles to make opening them easy
  • Lids have gaskets that keep cold air from escaping
  • Self-contained refrigeration system maintains even temperatures
  • Force draft hermetic condensing unit
  • Uses R-134A refrigerant maintains freezing temperatures
  • 4-in. clearance between the back of the cabinet and the wall
  • 115 V/60 Hz/1 ph, 5.7 A, 14 HP, 9-ft. cord with a NEMA 5-15P plug
  • Overall Dimensions: 3058 in. W x 3018 in. D x 3418 in. D
  • cULus listed; NSF certified

Durable Construction

  • Stainless steel top is seamless and easy to clean
  • 24 gauge, textured, galvanized steel, white exterior creates a clean appearance
  • Galvanized steel interior is durable
  • Floor drain with garden hose fitting makes cleaning the interior easy
  • Cold wall evaporator helps keep the interior cold
  • 214-in. urethane insulation keeps cold air inside the cabinet and gives it structure since it is foamed in place
  • Leveling legs make installing the cabinet easy on uneven flooring

Ice Cream Dipping Cabinet, dip (5) 3 gallon, store (2) 3 gallon, cold-wall evaporator, painted textured galvanized steel exterior, galvanized steel interior, stainless steel top with anti-condensate heater, flip lid, temperature range 10° to -10°F, 1/4 hp, 115v/60/1-ph, 5.7 amps, 9' cord, NEMA 5-15P, cULus, NSF, Made in USA

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

Master-bilt DC-4D Specifications

PDF Spec Sheet
Manufacturer Master-bilt
Containers Tubs
Depth (in) 30
Exterior Finish White
Refrigeration Type Cold Wall
Specialty Options Cold Storage
Type Dipping Cabinet
Warranty 2 years part & labor/5 years compressor
Width (in) 30.5
Capacity (3 Gal Cans) 7
Application Stand Alone
Width (in) Range 16 - 32 in
Hertz 60
Voltage 115
Phase 1
Product Type Refrigerators & Freezers
Product Ice Cream Freezer
Weight 220.00
Master-bilt DC-4D Certifications
  • UL
  • NSF
