Mars LPV242-1UA-OB/99-014 42" Unheated Air Curtain w/ Auto Switch - Low Profile, Obsidian Black, 115v

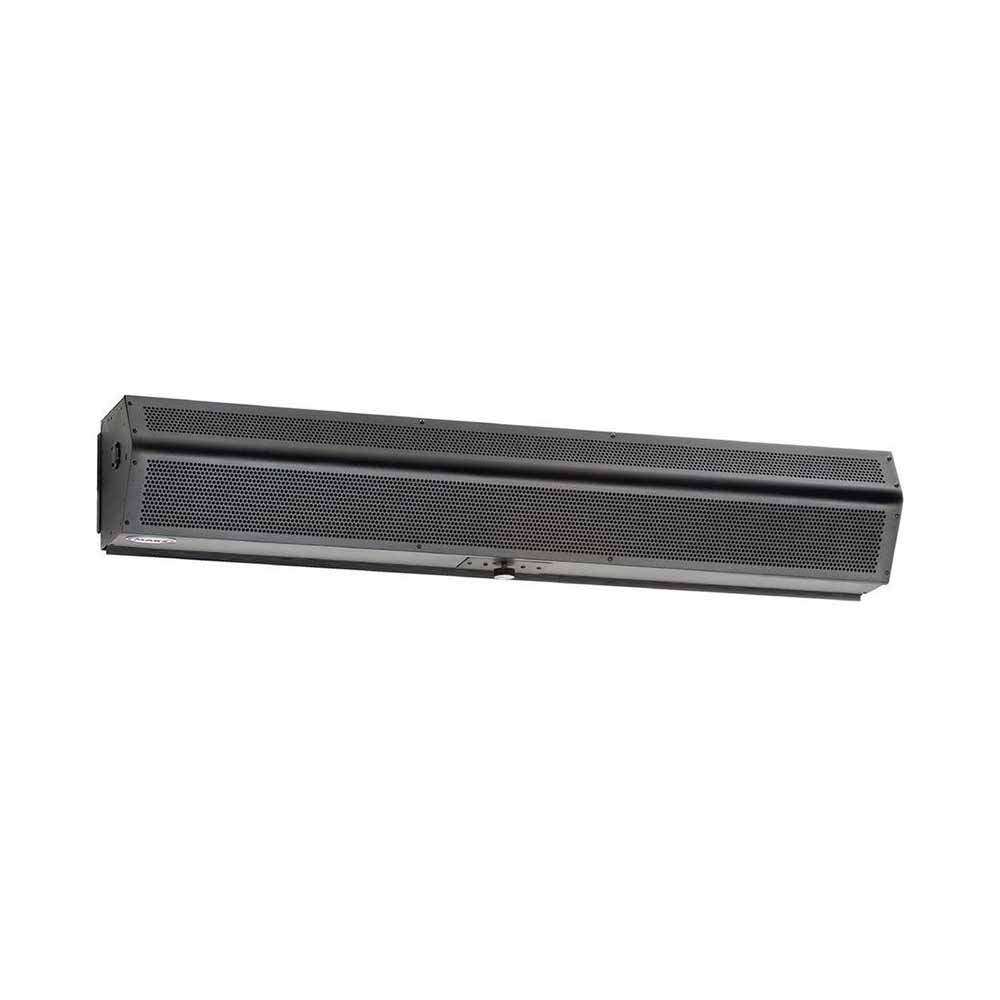

For customer-facing applications in bakeries, offices, and retail stores, the Mars LPV242-1UA-OB/99-014 LoPro Series 2 air curtain sports a low-profile, one-piece design for a sleek, unobtrusive look. Its rust-resistant electrostatic polyurethane powder coating is obsidian black, matching common decorative themes. Compatible with wall or overhead installation, this 42-inch-wide by 9-inch-deep by 8-inch-high unit includes ¹⁄₄-inch mounting holes and a removable wall mounting bracket that simplifies installation.

To maintain ambient temperatures and protect against pests, this Mars LPV242-1UA-OB/99-014 unheated air curtain's air directional vane blows air toward the doorway with a 40-degree front-to-back sweep. Operators can adjust air velocity with the variable speed controller knob as needs change, and when the door opens or closes, this unit automatically shuts on or off to save energy. To withstand heavy use, its aluminum crossflow wheels are corrosion resistant and dynamically balanced.

Product Details

• Part of the LoPro Series 2 collection
• Self-contained, 1-piece design with low profile
• Unheated
• Fire-retardant, corrosion-proof paint-lock metal construction
• Rust-preventive electrostatic polyurethane powder coating
• Obsidian black
• 42-in.-wide air discharge nozzle
• ¹⁄₆-HP continuous-duty motor
• Adjustable air directional vane with 40-degree front-to-back sweep
• Adjustable speed controller knob mounted on unit
• Shuts on or off automatically as door is opened to closed
• Includes ¹⁄₄-in. mounting holes for wall or overhead installation
• Doesn't require intermediate support
• Maximum velocity: 1800 FPM
• Maximum volume: 1050 CFM

Dimensions & Utilities

• 42 in. W x 9 in. D x 8 in. H
• 2.4 A, ¹⁄₆ HP
• 115 V/60 Hz/1 ph

*Free shipping on Mars LPV242-1UA-OB/99-014 within the 48 contiguous states.

From The Manufacturer

LoPro Series 2 Air Curtain, for 42" wide door, Unheated, (1) 1/6 HP motor, 115v/60/1-ph, includes 99-014 Level 1 control package to automatically shut on and off the curtain when the door is opened or closed, Obsidian Black powder coated cabinet (Standard Production Color), cETLus

*Image may not depict product color, inclusions or accessories.

Mars LPV242-1UA-OB/99-014 Specifications

Spec Attribute	Spec Value
Manufacturer	Mars
Color	Black
Hertz	60
Length (in)	42
Phase	1
Product	Air Curtains
Product Type	Facility Maintenance
Series	LoPro Series 2
Temperature	Unheated
Type	Unheated
Voltage	115
Warranty	5-year Parts
Weight	43.00
