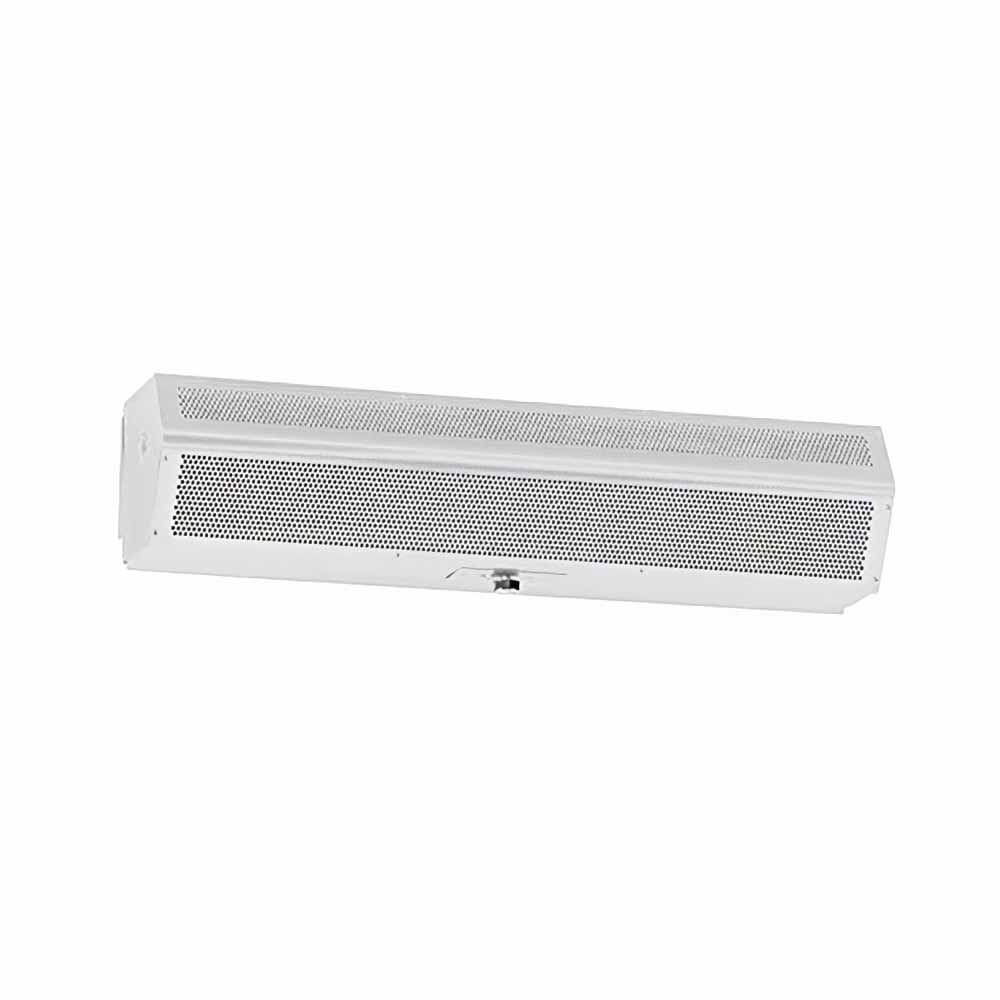

Mars LPV236-1UA-PW/99-014 36" Unheated Air Curtain w/ Auto Switch - Low Profile, Pearl White, 115v

The Mars LPV236-1UA-PW/99-014 unheated air curtain has an automatic on/off functionality to create separation between environments and prevent contamination from airborne pollutants. Because of the super low-profile design, this air curtain is convenient to incorporate in pass-thru areas with limited space. Its continuous-duty, direct-drive motor is designed with automatic thermal overload protection for safe operation, even in heavy use areas. Designed with a one-piece cabinet, this unit is straightforward to install and is powder-coated Pearl White to resist rust. Movable air vanes on this unit provide flexible coverage in a 40-degree sweep, and the motor speed can be adjusted for quiet operation. This air curtain is unheated, which makes it useful in temperature-controlled food prep areas.

Product Details

• Maintains sanitary environment when installed at 5 to 7 ft.
• ¹⁄₆-HP, continuous-duty motor is speed adjustable
• Conserve electricity with an automatic 99-014 door limit switch with an on/off function
• Pearl White
• Thermostatic polyurethane powder coating resists corrosion
• Unheated air maintains interior temperatures
• Galvanized steel housing
• Adjustable air vanes enable precise coverage
• Mounting brackets sold separately

Dimensions & Utilities

• 36 in. L x 8⁷⁄₈ in. W x 8 in. H
• 115 V/60 Hz/1 ph

*Free shipping on Mars LPV236-1UA-PW/99-014 within the 48 contiguous states.

From The Manufacturer

LoPro Series 2 Air Curtain, for 36" wide door, Unheated, (1) 1/6 HP motor, 115v/60/1-ph, includes 99-014 Level 1 control package to automatically shut on and off the curtain when the door is opened or closed, Pearl White powder coated cabinet (Standard Production Color), cETLus

*Image may not depict product color, inclusions or accessories.

Mars LPV236-1UA-PW/99-014 Specifications

Spec Attribute	Spec Value
Manufacturer	Mars
Color	White
Hertz	60
Length (in)	36
Phase	1
Product	Air Curtains
Product Type	Facility Maintenance
Series	LoPro Series 2
Temperature	Unheated
Type	Unheated
Voltage	115
Warranty	5-year Parts
Weight	40.00
