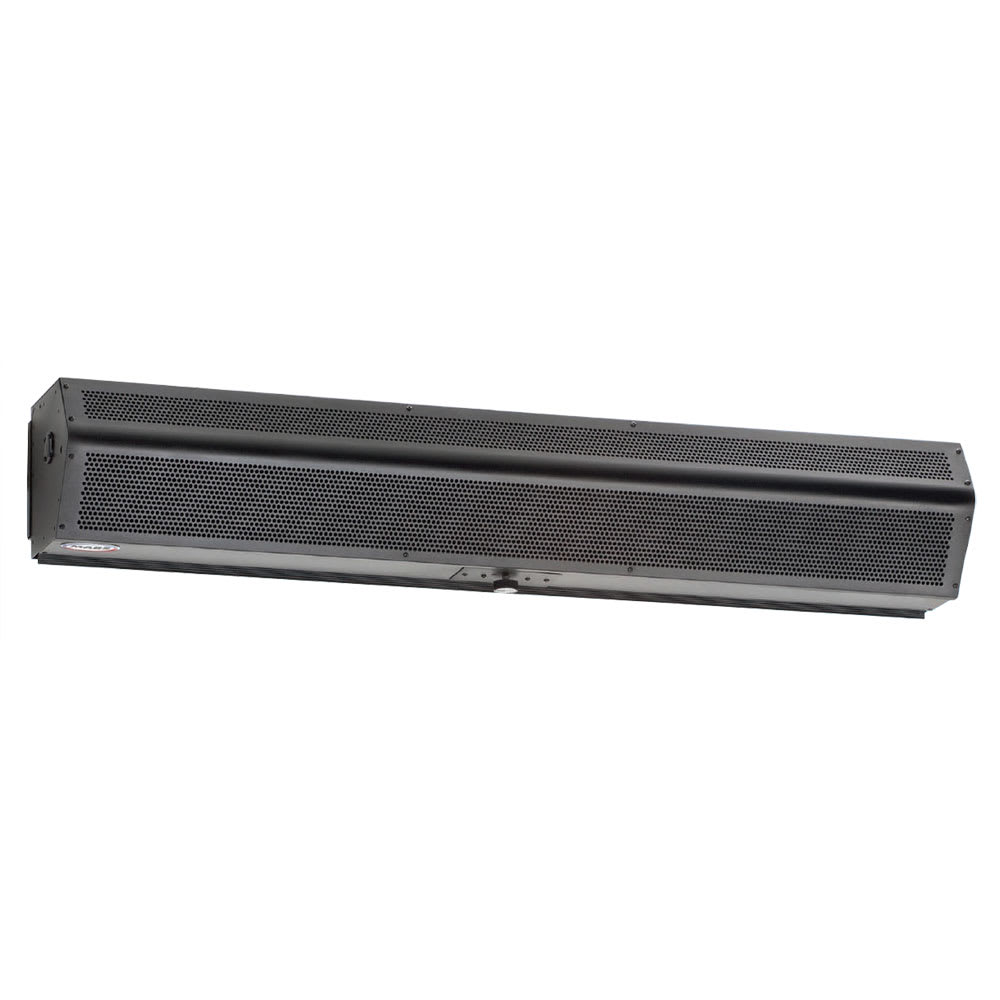

Mars LPV236-1UA-OB/99-014 36" Unheated Air Curtain - Auto Switch, Low Profile, Black

Image may not depict product color, inclusions or accessories.

KaTom #: 049-LPV2361UAOB99014 • MPN: LPV236-1UA-OB/99-014
Ships Free

Typically ships within 1 - 3 business days

(0 reviews)Write a Review
Retail Price: $728.37

Image may not depict product color, inclusions or accessories.

Mars LPV236-1UA-OB/99-014 Description


The Mars Air Systems 36 inch unheated air curtain is part of the LoPro Series 2; using a 1/6 horsepower motor it operates at a low noise level to not disrupt employees or customers when they enter or exit. This air curtain maintains the temperature of the interior up to eight feet from the ground and keeps out flying insects up to seven feet. The low profile design of this air curtain is easy to incorporate, install, and has a variable speed control so you can create the perfect balance between noise an airflow.

Standard Features and Benefits:

  • Unheated
  • For doors that are 36-in. W
  • Continuous duty, direct drive, double shaft motors have an automatic thermal overload protection to protect from burnout
  • Creates environmental separation for doors up to 8-ft. H by minimizing dirt, drafts, and fumes
  • Prevents flying insects from entering doors up to 7-ft. H
  • Air directional vanes have a 40 degree sweep front to back to compensate for drafts
  • Provides unobstructed views in doorways
  • Blower wheels are dynamically balanced for quiet operation and are rust proof
  • Low noise levels - 49-dBA
  • Variable speed controller is located on the right hand side
  • Includes 99-014 Level 1 control package to automatically shut on and off the curtain when the door is opened or closed
  • One piece cabinet construction with one layer of fire retardant paint and second layer of powder coat paint
  • Obsidian black powder coat prevents rust and static charge
  • 115 V/60 Hz/1-ph, 2.4 A, 1/6 HP motor
  • Overall Dimensions: 36-in. W x 8-in. D x 8-7/8 in. H
  • CE and cETLus Listed; Meets National Electric Code (N.E.C)
  • Made in USA

LoPro Series 2 Air Curtain, for 36" wide door, Unheated, (1) 1/6 HP motor, 115v/60/1-ph, Obsidian Black powder coated cabinet (Standard Production Color), steel mechanical universal surface-mounted plunger/roller switch, cETLus

Mars LPV236-1UA-OB/99-014 Specifications

PDF Spec Sheet
Manufacturer Mars
Hertz 60
Voltage 115
Phase 1
Product Type Facility Maintenance
Product Air Curtain
Weight 40.00
Mars LPV236-1UA-OB/99-014 Certifications
  • ETL
