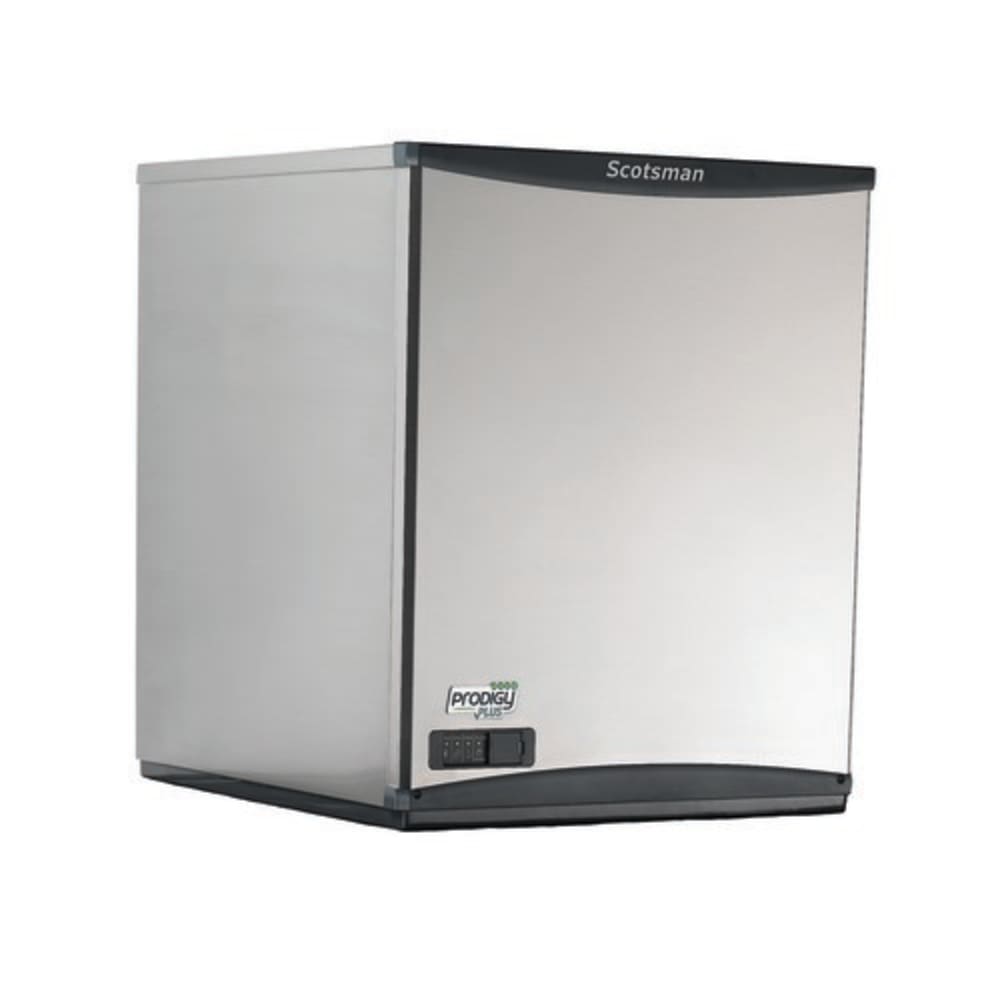

Scotsman NS1322W-3 22" Prodigy Plus® Nugget Ice Machine Head - 1513 lb/24 hr, Water Cooled, 208-230v/3ph

The Scotsman NS1322W-3 Prodigy Plus® ice machine head operates with R-404A refrigerant and a simple-to-install, self-contained condenser. It produces chewable nugget ice—a type that's absorbent and perfect for serving in iced tea and soft drinks. To inhibit germ growth between cleanings, its interior surfaces are treated with AgION™ antimicrobial protection. Because this unit's auger and evaporator are made of stainless steel, they're durable and resistant to corrosion.

To keep up with high-volume demand, the Scotsman NS1322W-3 ice maker produces as much as 1,129 pounds of ice per day in realistic environmental conditions. It features AutoAlert™ indicator lights that grant operational updates; for further in-depth information, users can scan its unit-specific QR code. To simplify operation, it has sealed, maintenance-free bearings and a one-touch cleaning function. This unit measures 22⁷/₁₀ inches wide by 24 inches deep by 27 inches high, overall.

Product Details

• 1,513-lb. maximum daily ice production
• 1,129-lb. AHRI-certified daily ice production
• Produces nugget-style ice
• Ice nugget dimensions: ⁷⁄₁₆ in. x ⁵⁄₁₆ in. x ³⁄₈ in.
• Evaporator and auger made of heavy-duty stainless steel
• Stainless steel exterior finish
• Unit-specific QR code
• Operational updates provided by AutoAlert indicator lights
• AgION antimicrobial protection on internal surfaces
• 1-touch cleaning simplifies operation
• Water cooled with self-contained condenser
• Sealed, maintenance-free bearings
• Self-aligning front panel offers access to key components
• Air filter located at front
• Ice bin sold separately
• Operates with R-404A refrigerant
• Operating ambient air temperature range: 50-100 degrees F
• Operating incoming water temperature range: 40-100 degrees F
• Incoming water pressure: 20-80 PSI
• 7,200-BTU heat-transfer capacity

Product Features

Dimensions & Utilities

• 22⁷/₁₀ in. W x 24 in. D x 27 in. H
• 9.9 A
• 208-230 V/60 Hz/3 ph

*Free shipping on Scotsman NS1322W-3 within the 48 contiguous states.

From The Manufacturer

Prodigy Plus® Ice Maker, nugget style, Original Chewable Ice®, water-cooled, self-contained condenser, production capacity up to 1513 lb/24 hours at 70°/50° (1129 lb AHRI certified at 90°/70°), sealed maintenance-free bearings, AutoAlert™ indicating lights, unit specific QR code, stainless auger and evaporator, one-touch cleaning, stainless steel finish, AgION™ antimicrobial protection, R-404A refrigerant, 9.9 amps, 208-230v/60/3-ph, NSF, cULus, engineered and assembled in USA

*Image may not depict product color, inclusions or accessories.

Scotsman NS1322W-3 Specifications

Spec Attribute	Spec Value
Manufacturer	Scotsman
24 Hr. Production (lb)	1513
Compressor Type	Water Cooled
Depth (in)	24
Height (in)	27
Ice Type	Nugget
Phase	3
Product	Ice Machine Heads
Product Type	Ice Makers & Bins
Rating	Best
Refrigerant	R404A
Series	Prodigy Plus®
Voltage	208/230
Warranty	Commercial: 3-year Limited Parts & Labor; 5-year Limited Parts & Labor Evaporator; 5-year Limited Compressor & Condenser Parts; Residential: 1-year Parts & Labor
Width (in)	22
Weight	225.00
