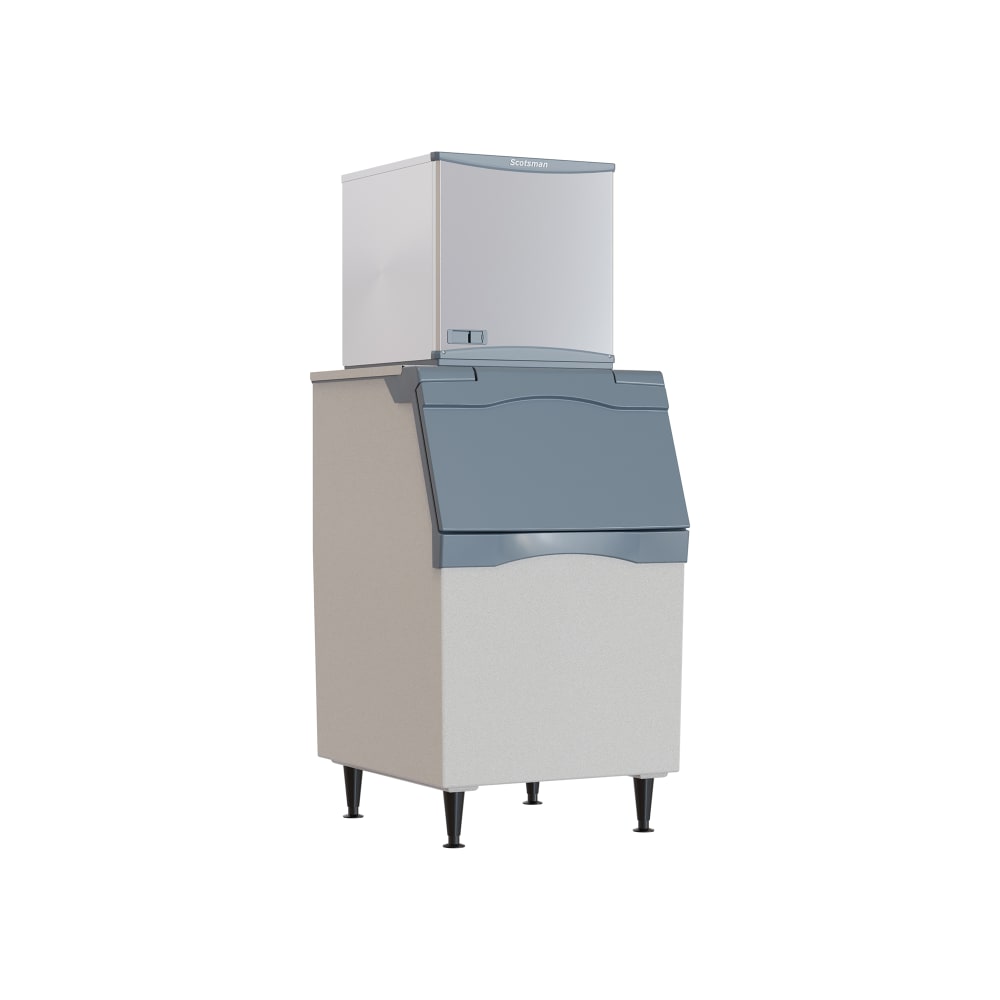

Scotsman NS0622W-1/B530P/KBT27 715 lb Prodigy Plus® Nugget Ice Machine w/ Bin - 536 lb Storage, Water Cooled, Softer Nugget, 115v

Providing continued use, the Scotsman NS0622W-1/B530P/KBT27 nugget ice maker with bin operates with maintenance-free bearings, which are sealed to prevent any water damage. This unit can be cleaned with the push of a button, and to slow the growth of germs, it's protected by AgION™ antimicrobial. Its refrigeration system is self-contained to streamline installation and cools using R404A refrigerant, crafting as much as 715 pounds of ice each day. If ambient and water temperatures are too high, it makes closer to 581 pounds per day.

The Scotsman NS0622W-1/B530P/KBT27 ice machine with bin includes a scoop to retrieve ice, so employees don't place their hands directly into the bin. For use when needed, the bin accommodates 536 pounds of ice and is insulated with polyurethane to prevent product from melting during storage. After the scoop has been used, it can be stored safely in the built-in holder. The ice maker's finish, auger, and evaporator are made of stainless steel to provide rust and corrosion resistance.

Ice Machine Details

• Part of the Prodigy Plus® series
• 715-lb. maximum daily ice production
• 581-lb. AHRI-certified daily ice production
• Makes Original Chewable Ice®
• Ice dimensions: ⁷⁄₁₆ in. x ⁵⁄₁₆ in. x ³⁄₈ in.
• Water-cooled, self-contained condenser
• R404A refrigerant
• Can be cleaned using 1 button
• AgION antimicrobial inhibits growth of microbes

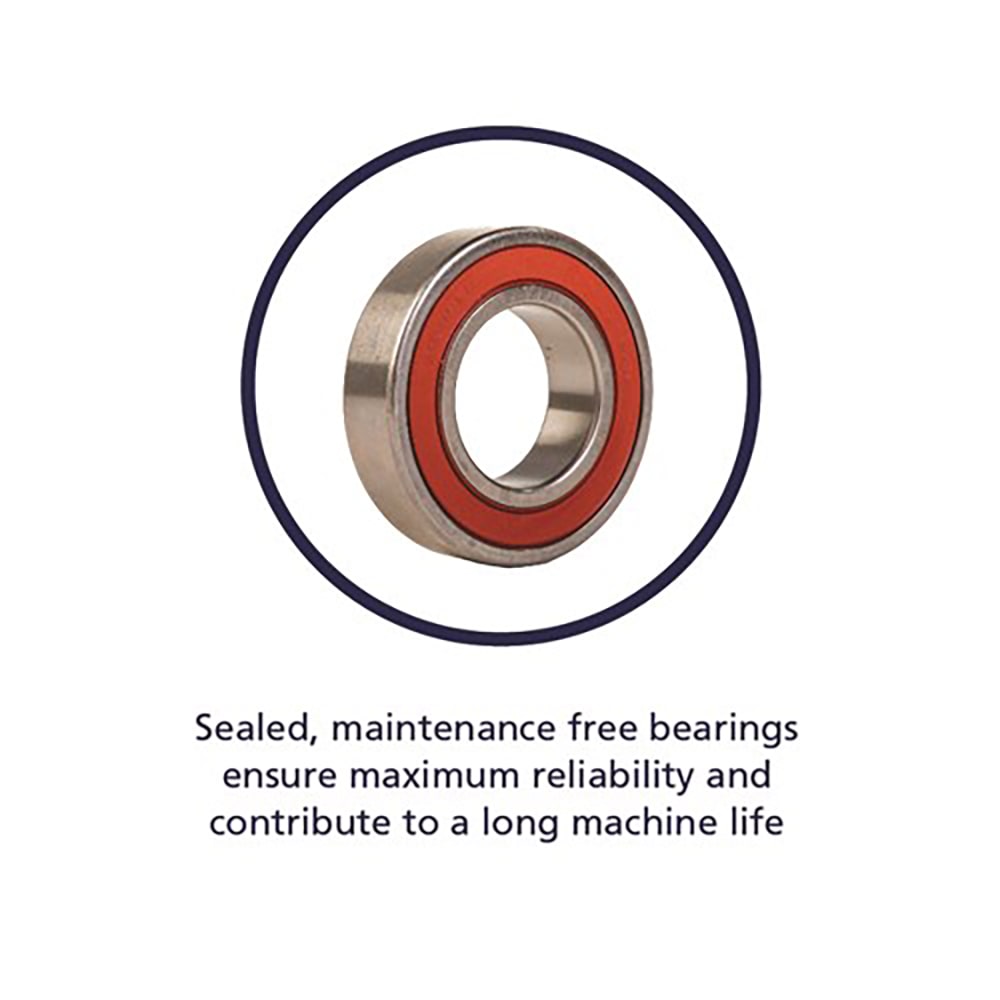

• Maintenance-free, sealed bearings
• AutoAlert™ indicating lights
• QR code is unit specific to display warranty information
• Stainless steel evaporator and auger
• Stainless steel finish
• Ideal incoming air temperature: 50-100 degrees F
• Ideal incoming water temperature: 40-100 degrees F
• Ideal incoming water pressure: 20-80 PSIG
• 7,100-BTU heat transfer capacity

Ice Bin Details

• 536-lb. application capacity
• Polyurethane insulation prevents ice from melting
• Made of rotocast plastic
• Polyethylene liner
• Includes an ice scoop with a built-in holder
• Door opens from the front and is top hinged
• Removable baffle
• 6-in. legs
• Includes KBT27 bin top kit to secure machine head

Dimensions & Utilities

• Ice maker: 22⁹/₁₀ in. W x 24 in. D x 23 in. H
• Ice bin: 30 in. W x 34 in. D x 50 in. H
• 14.4 A
• 115 V/60 Hz/1 ph

*Free shipping on Scotsman NS0622W-1/B530P/KBT27 within the 48 contiguous states.

From The Manufacturer

Prodigy Plus® Ice Maker, nugget style, Original Chewable Ice®, water-cooled, self-contained condenser, production capacity up to 715 lb/24 hours at 70°/50° (581 lb AHRI certified to 90°/70°), sealed maintenance-free bearings, AutoAlert™ indicating lights, unit specific QR code, stainless auger and evaporator, one-touch cleaning, stainless steel finish, AgION™ antimicrobial protection, R-404A refrigerant, 115v/60/1-ph, 14.4 amps, NSF, cULus, engineered and assembled in USA

Ice Bin, top-hinged front-opening door, 536 lb application capacity, for top-mounted ice maker, 30" width, roto cast plastic construction, toolless removable baffle, polyurethane insulation, polyethylene liner, includes 6" legs, NSF, engineered and assembled in USA; (KBT27) Bin Top, for use with all 22" cubers, flakers & nugget makers (except EH222) on B230, B330 & B530 bins

*Image may not depict product color, inclusions or accessories.

Commercial: 3-year Parts & Labor; 5-year Compressor Parts; Residential: 1-year Parts & Labor

Scotsman NS0622W-1/B530P/KBT27 Specifications

Scotsman offers one of the largest selections of commercial and residential ice makers. It has innovated the industry and provided customer-friendly service since the 1950s. Scotsman is a major global player with distributors and service agents in more than 100 countries.
