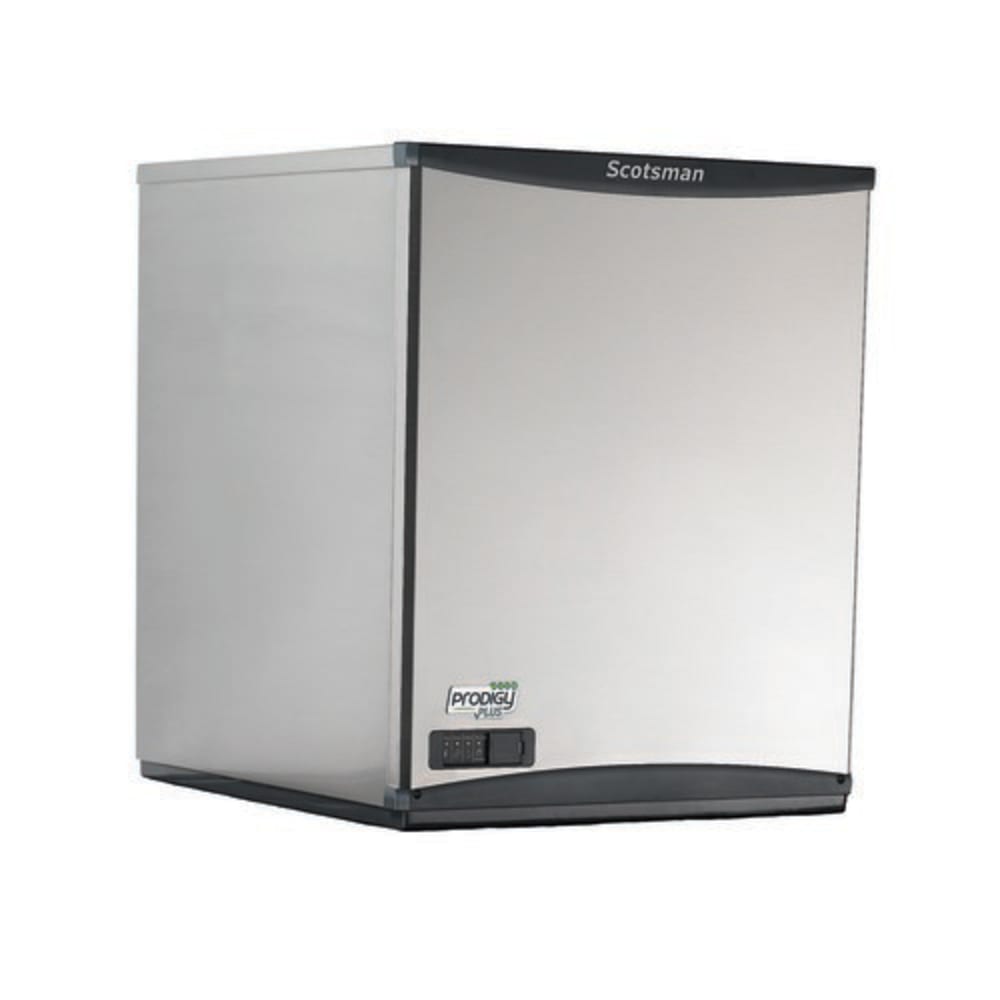

Scotsman NH1322L-1 22" Prodigy Plus® Nugget Ice Machine Head - 1191 lb/24 hr, Remote Cooled, 115v/1ph

The Scotsman NH1322L-1 nugget ice machine head has several features that reduce downtime and the need for service calls. Sealed, maintenance-free bearings are made with a self-lubricating polymer and eliminate the need for greasing, while a QR code on the front panel provides immediate access to user manuals, warranty information, and other unit documents. With a self-aligning front panel, access to the head's key components and diagnostic board is simplified, saving owners time when troubleshooting. The AutoAlert™ LED indicator lights also help identify service needs, displaying when it's time to descale, clean, whether the unit has water, and other information indicated by different colored lights and easy-to-identify symbols.

With an exterior, auger, and evaporator all made of stainless steel, the Scotsman NH1322L-1 nugget ice machine head is built to deliver a long service life. Antimicrobial protection in the food zone slows the growth of mold between cleanings, and because the refrigeration system is self-contained, it's also protected from airborne contaminants.

Product Details

• Part of the Prodigy Plus® series
• Requires remote condenser to function (sold separately)
• 1,191-lb. maximum daily ice production
• 1,018-lb. AHRI-certified daily ice production

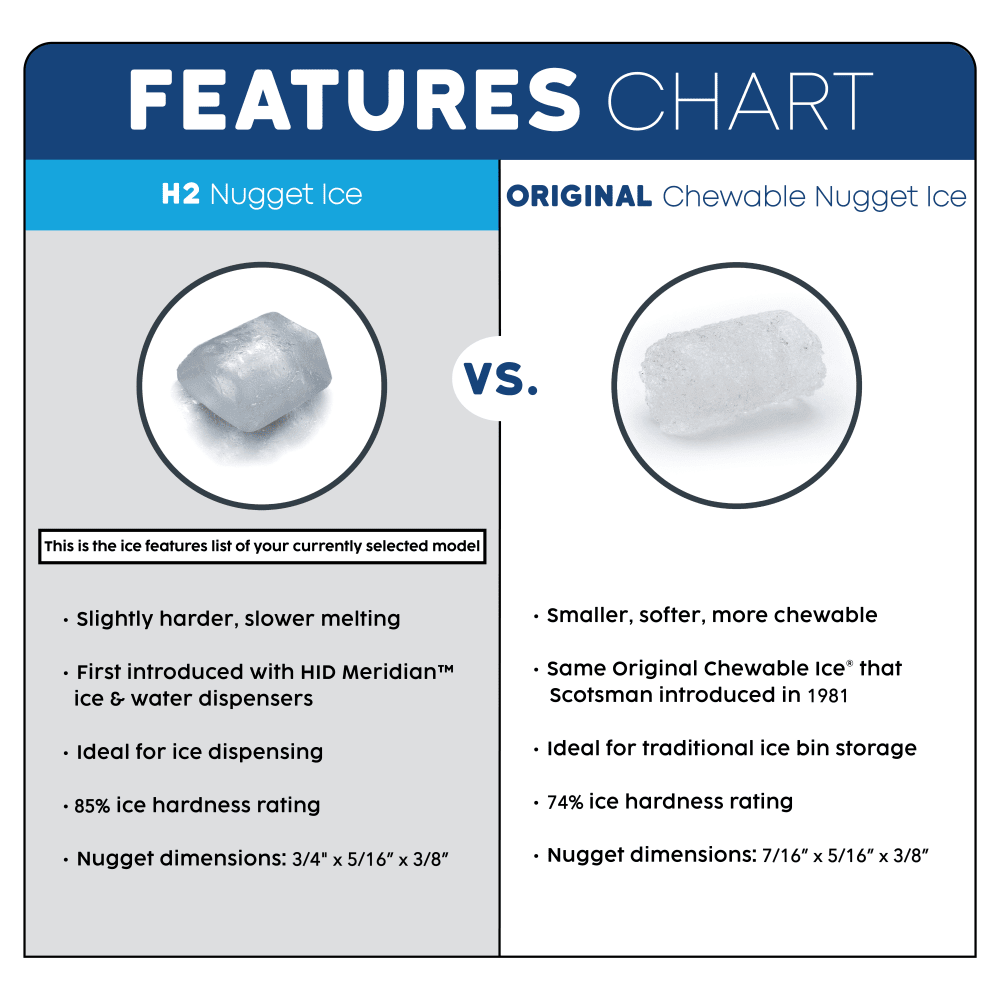

• Makes H² nugget ice

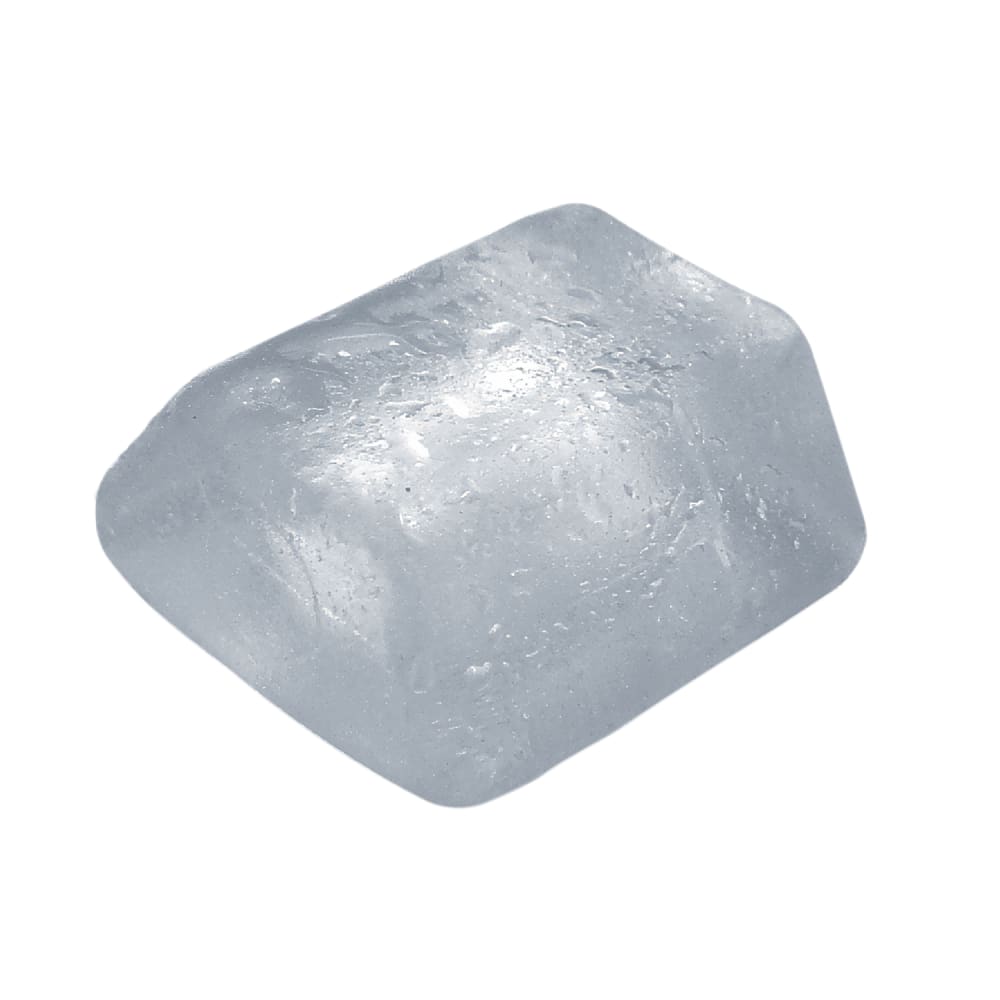

• Nugget ice size: ³/₄ in. x ⁵/₁₆ in. x ³/₈ in.
• Made with stainless steel auger and evaporator

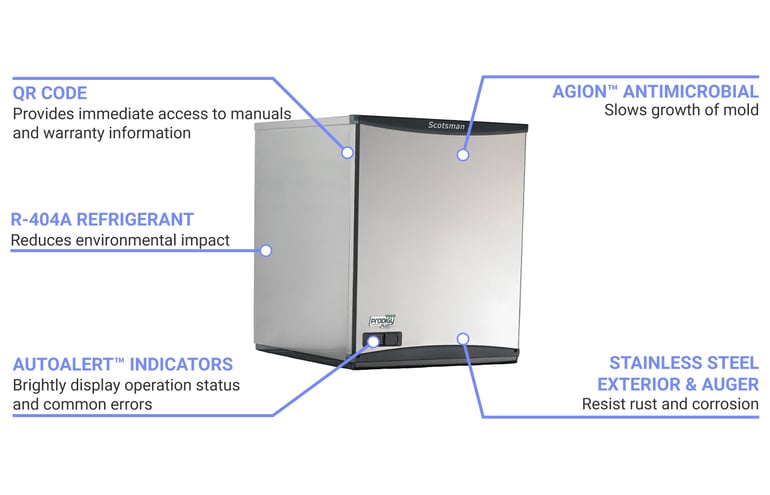

• AutoAlert indicator lights for increased visibility
• Model-specific QR code provides access to manuals, care instructions, and warranty history
• Self-aligning front panel with simple access to front filter
• Smart-Board™ expands diagnostic capabilities
• Antimicrobial protection
• Sealed refrigeration system
• Must add R-404A refrigerant at initial startup
• Ice bin sold separately

Operating Requirements

• Ideal ambient air temperature: 50-100 degrees F
• Ideal incoming water temperature: 40-100 degrees F
• Ideal incoming water pressure: 20-80 PSIG
• 7,200-BTU heat transfer capacity

Product Features

Dimensions & Utilities

• 22⁷/₁₀ in. W x 24 in. D x 27 in. H
• 0.87 kW
• 115 V/60 Hz/1 ph

*Free shipping on Scotsman NH1322L-1 within the 48 contiguous states.

From The Manufacturer

Prodigy Plus® Ice Maker, nugget style, H2 Nugget Ice, remote low side (condenser & compressor separate), production capacity up to 1191 lb/24 hours at 70°/50° (1018 AHRI certified at 90°/70°), sealed maintenance-free bearings, AutoAlert™ indicating lights, unit specific QR code, stainless auger and evaporator, heat and noise reduced via remote low side configuration, one-touch cleaning, stainless steel finish, AgION™ antimicrobial protection, R-404A refrigerant, 115v/60/1-ph, NSF, cULus, engineered and assembled in USA

*Image may not depict product color, inclusions or accessories.

Scotsman NH1322L-1 Specifications

Spec Attribute	Spec Value
Manufacturer	Scotsman
24 Hr. Production (lb)	1191
Compressor Type	Remote Cooled
Depth (in)	24
Height (in)	27
Ice Type	Nugget
Phase	1
Product	Ice Machine Heads
Product Type	Ice Makers & Bins
Rating	Best
Refrigerant	R404A
Series	Prodigy Plus®
Voltage	115
Warranty	Commercial: 3-year Limited Parts & Labor; 5-year Limited Parts & Labor Evaporator; 5-year Limited Compressor & Condenser Parts; Residential: 1-year Parts & Labor
Width (in)	22
Weight	225.00
