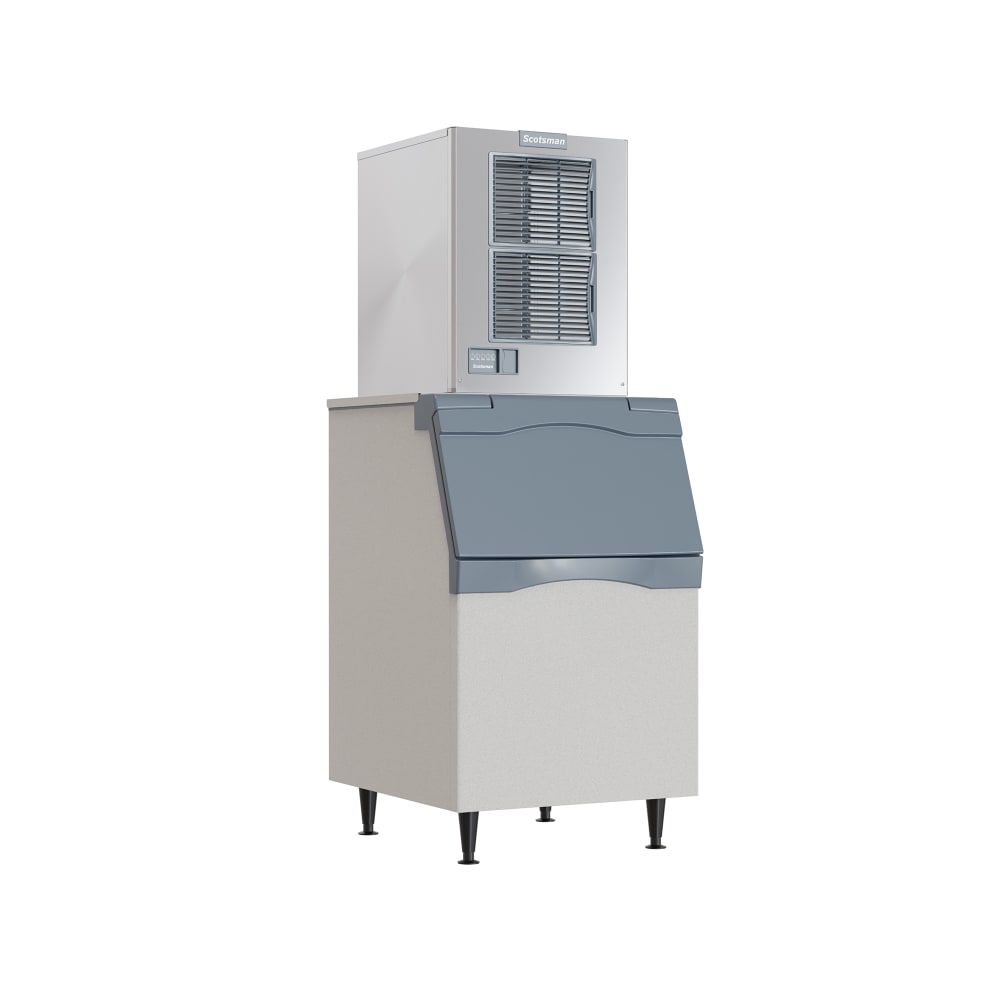

Scotsman MC0722MA-32/B530S/KBT27 758 lb Prodigy ELITE® Full Cube Ice Machine w/ Bin - 536 lb Storage, Air Cooled, 208-230v

Because the Scotsman MC0722MA-32/B530S Prodigy ELITE® ice maker with bin has a stainless steel and metallic finish, it doesn't corrode when exposed to cleaning chemicals and water. Its condenser is self-contained to streamline installation, and it cools with R-404A refrigerant to produce 758 pounds of ice per day. If the room's ambient temperature rises, this unit produces closer to 566 pounds per day, and the bin can hold 536 pounds.

The Scotsman MC0722MA-32/B530S full-cube ice maker with bin comes with a scoop to prevent employees from reaching into the bin to grab ice. An integrated scoop holder provides sanitary storage and the bin is lined with polyethylene to streamline cleaning. To keep ice fresh for customers, this unit has WaterSense adjustable purge controls that rid it of impurities, and because the bin is insulated with polyurethane, the ice doesn't melt quickly.

Ice Maker Details

• Part of the Prodigy ELITE series
• 758-lb. maximum daily ice production
• 566-lb. AHRI-certified daily ice production
• Makes medium cube-style ice
• Cube size: ⁷⁄₈ in. x ⁷⁄₈ in. x ⁷⁄₈ in.
• Self-contained condenser
• Air cooled with R-404A refrigerant
• Components on self-aligning front panel

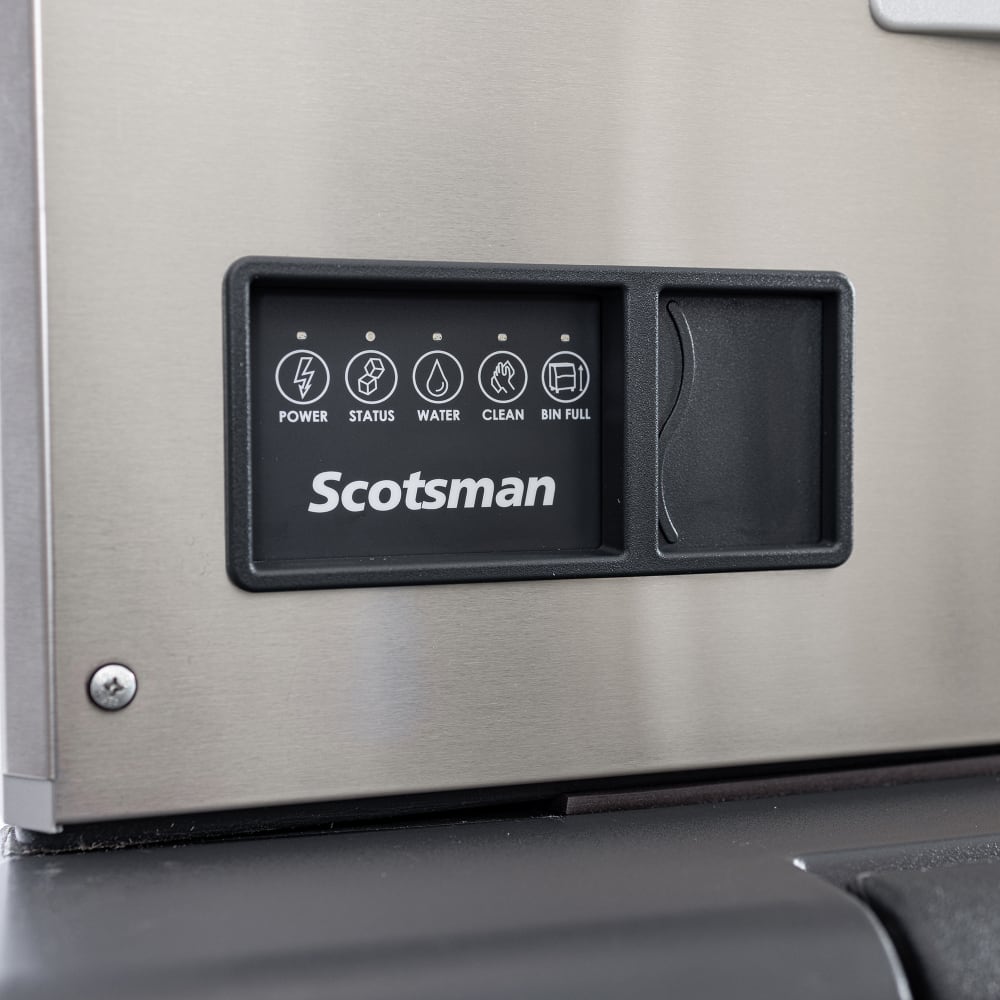

• Status updates provided by AutoAlert™ indicator lights
• WaterSense adjustable purge controls clean ice
• 1-touch cleaning
• Ice moved with harvest assist
• QR code is scannable to provide information

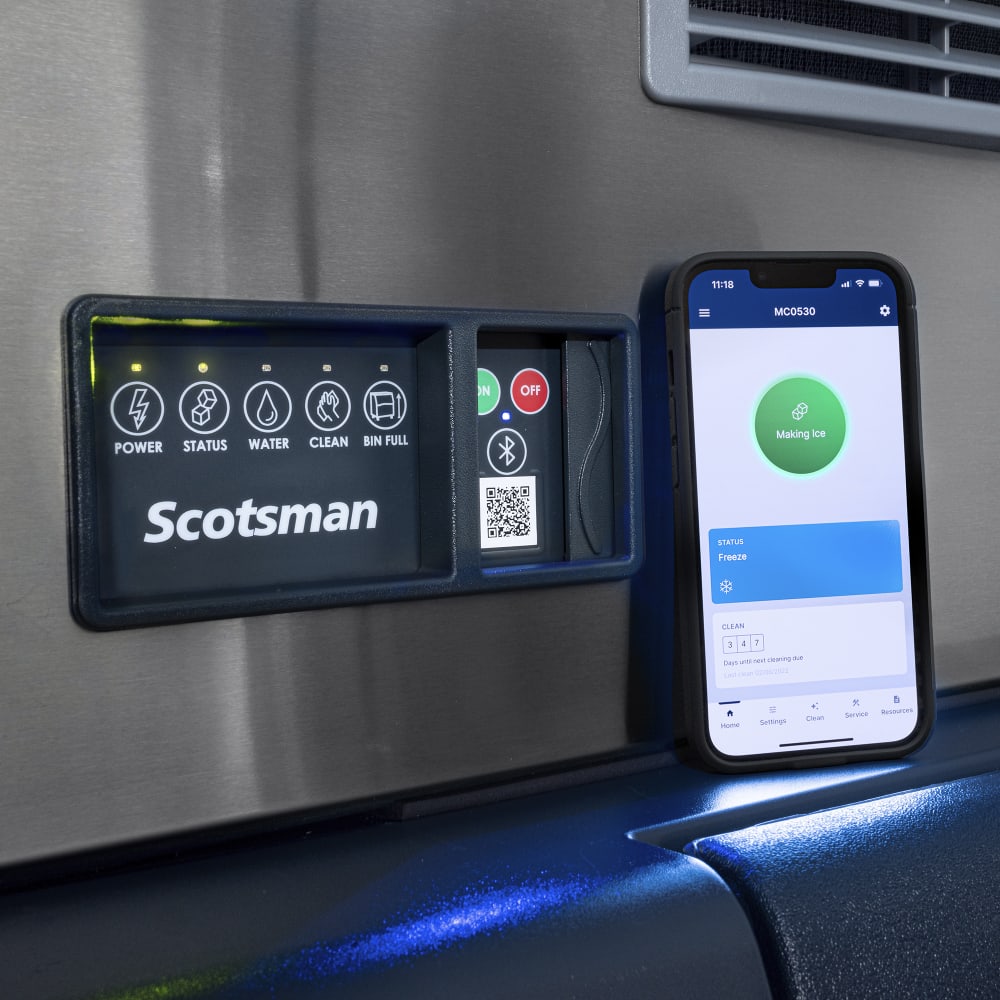

• Compatible with ICELINQ® app
• Preservation mode minimizes downtime and alerts operators to potential issues
• Bluetooth® connectivity
• Resilient stainless steel finish
• AgION™ antimicrobial slows microbe formation

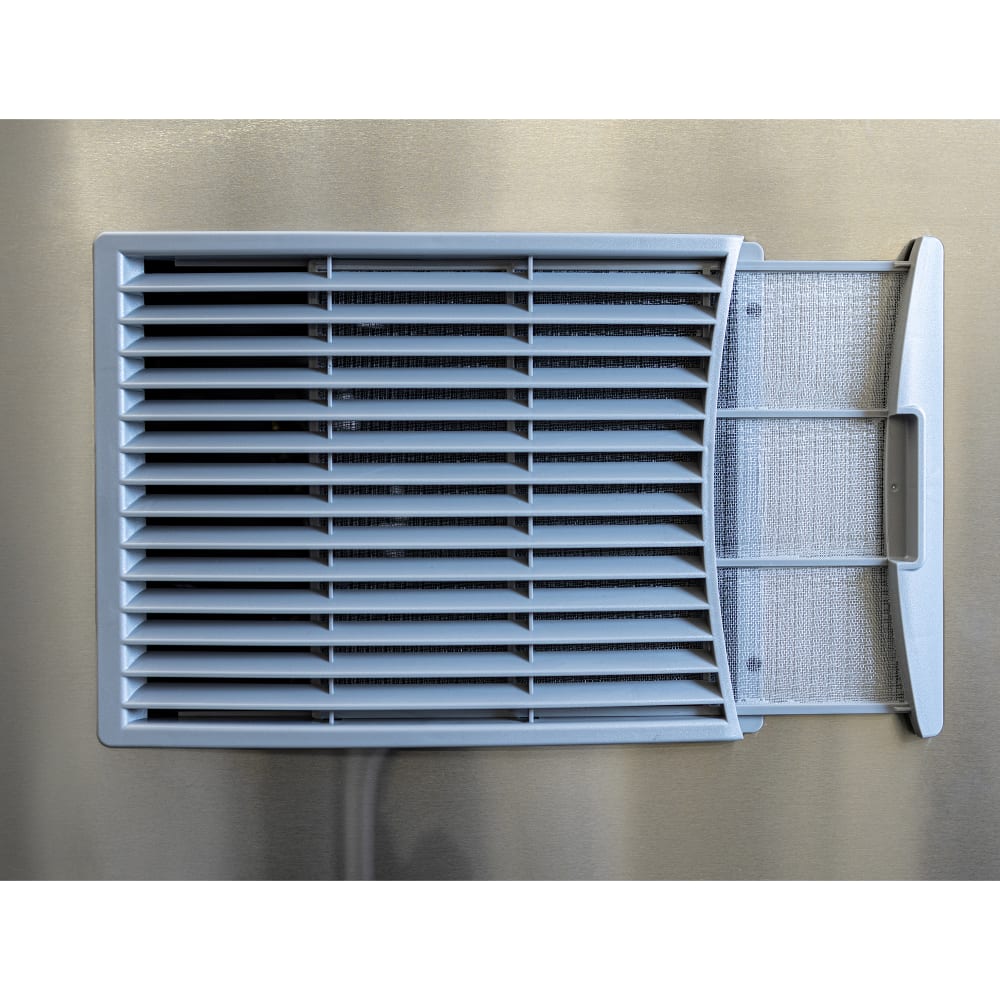

• Front-facing, removable air filter
• Ideal ambient air temperature: 50-100 degrees F
• Ideal incoming water temperature: 40-100 degrees F
• Ideal incoming water pressure: 20-80 PSIG
• 12,750 BTU

Ice Bin Details

• 536-lb. application capacity
• Includes a scoop with a holder
• Front-opening, spring-loaded door
• Baffle can be removed without tools
• Ice melts slowly with polyurethane insulation
• Bin lined with polyethylene
• Mounted on 6-in. legs
• Metallic finish exterior is corrosion resistant

Dimensions & Utilities

• Ice machine: 22 in. W x 24 in. D x 29 in. H
• Bin: 30¹/₂ in. W x 34 in. D x 50 in. H
• 11 A, 5.26 kW
• 208-230 V/60 Hz/1 ph

Product Features

*Free shipping on Scotsman MC0722MA-32/B530S/KBT27 within the 48 contiguous states.

From The Manufacturer

Prodigy ELITE® Ice Maker, cube style, air-cooled, self-contained condenser, production capacity up to 758 lb/24 hours at 70°/50° (566 lb AHRI certified at 90°/70°), medium cube size, ICELINQ® mobile app, Bluetooth® connectivity, preservation mode, external bin full indicator, AutoAlert™ indicating lights, WaterSense adjustable purge control, one-touch cleaning, harvest assist, front facing removable air filters, unit specific QR code, stainless steel finish, AgION™ antimicrobial protection, 208-230v/60/1-ph, 11.0 amps, cULus, NSF, engineered and assembled in USA

Ice Bin, top-hinged front-opening door, 536 lb application capacity, for top-mounted ice maker, 30" width, metallic finish exterior, toolless removable baffle, polyurethane insulation, polyethylene liner, includes 6" legs, NSF, engineered and assembled in USA; (KBT27) Bin Top, for use with all 22" cubers, flakers & nugget makers (except EH222) on B230, B330 & B530 bins

*Image may not depict product color, inclusions or accessories.

Commercial: 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor
