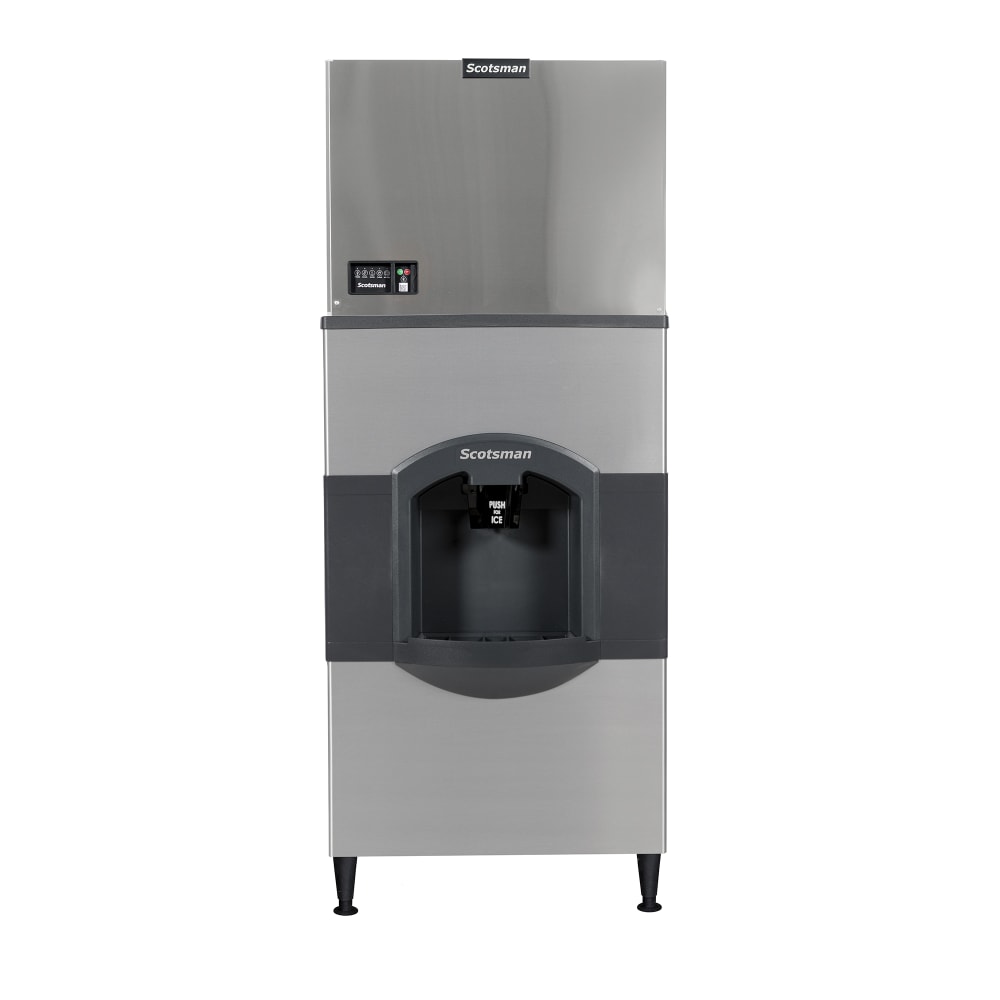

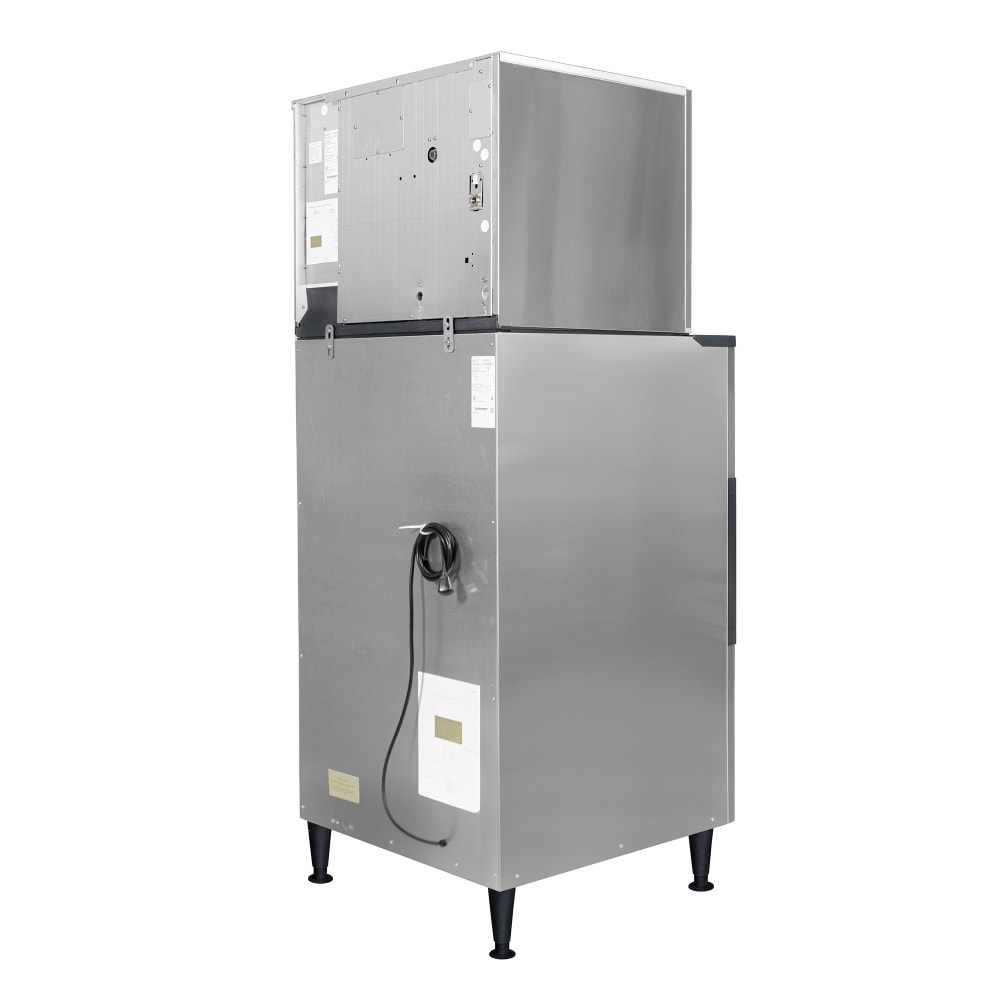

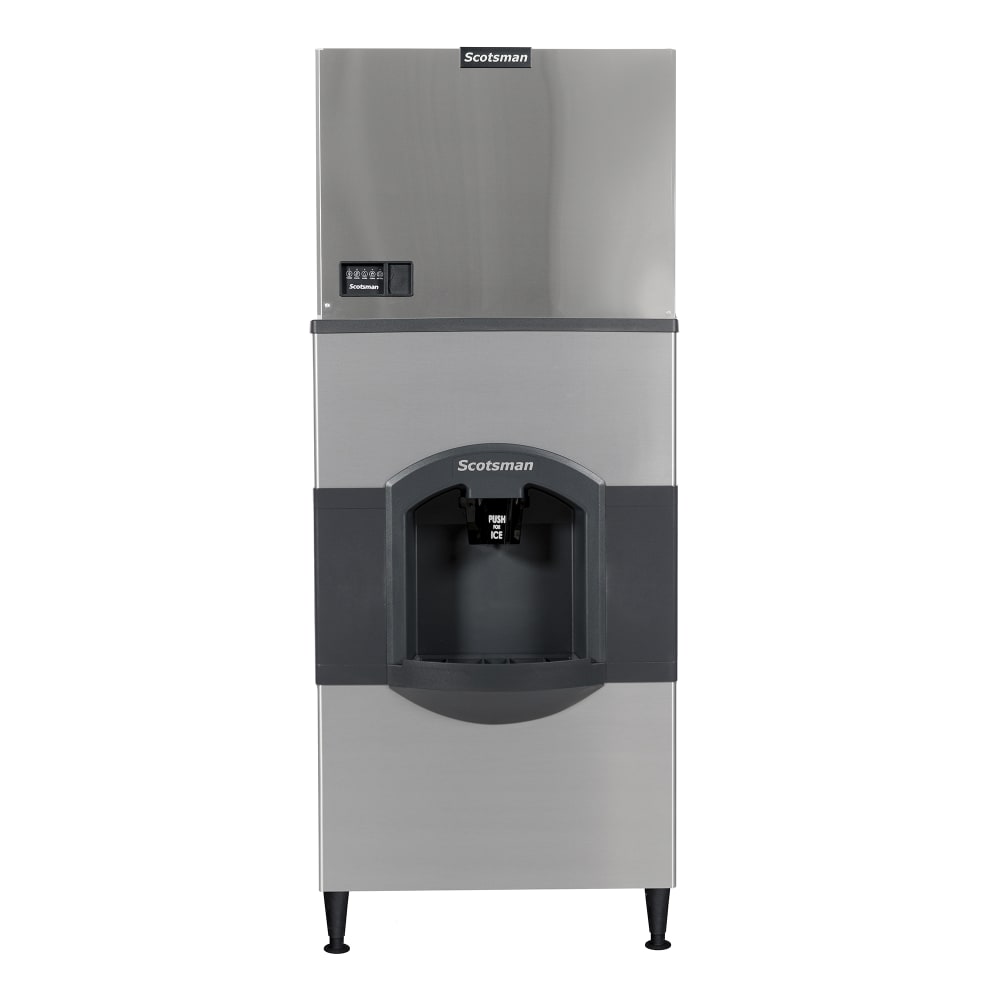

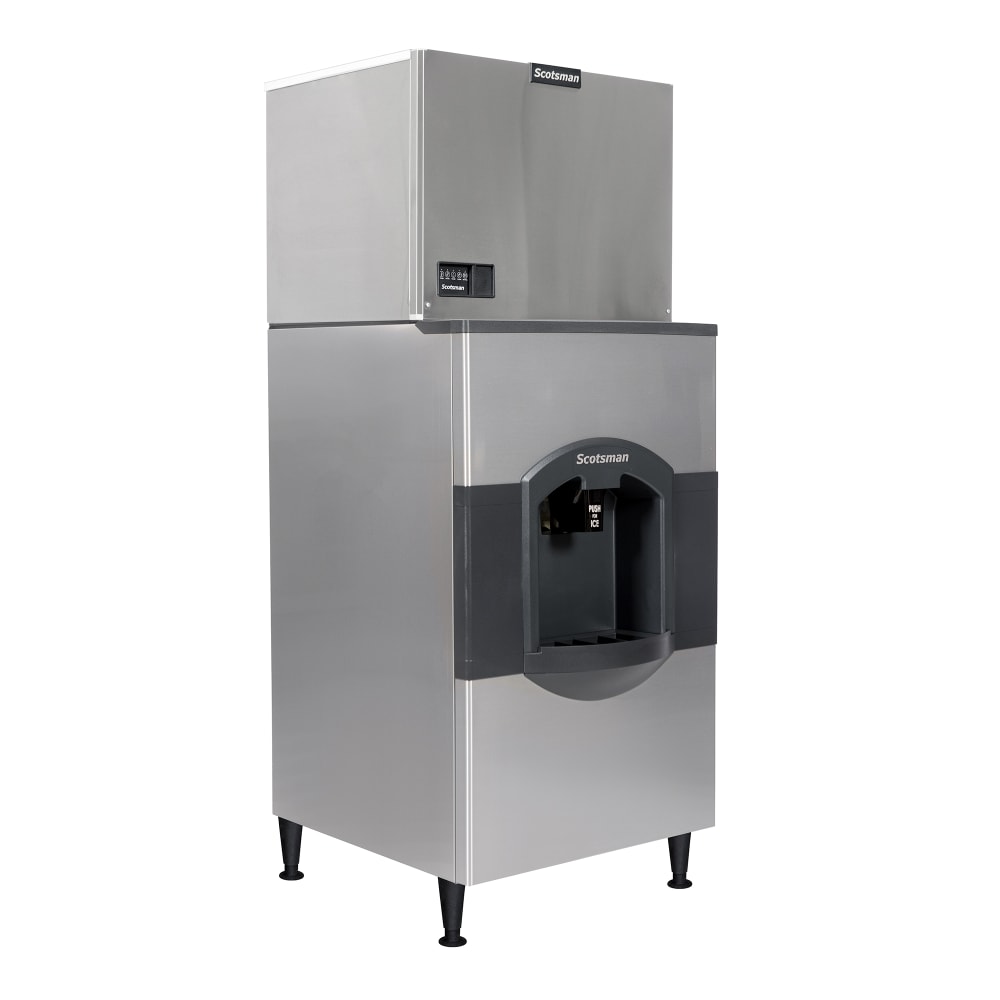

Scotsman MC0630MR-32/HD30B-1 614 lb Prodigy ELITE® Full Cube Ice Machine w/ Ice Dispenser - 180 lb Storage, Bucket Fill, 208-230v

The front panel on the Scotsman MC0630MR-32/HD30B-1 Prodigy ELITE® ice maker with dispenser gives users access to key components, as well as lights that indicate the unit's operating status. When the ambient air and water temperatures are at an ideal level, it can produce 614 pounds of ice in one day, and if the levels are off, the unit produces as much as 540 pounds. Of this amount, 180 pounds can be stored in the dispenser for use as soon as it's needed.

This Scotsman MC0630MR-32/HD30B-1 ice machine with dispenser has a push button that releases ice through a chute. It can be used to fill buckets to transport ice in a banquet hall, kitchen, or hotel. To prevent melting ice, the dispenser is insulated with polyurethane, and the unit's WaterSense adjustable purge controls provide clean ice. AgION™ antimicrobial coats the unit to inhibit germ growth.

Ice Maker Details

• Part of the Prodigy ELITE series
• 614-lb. maximum daily ice production
• 540-lb. AHRI-certified daily ice production
• Makes medium cube-style ice
• Cube size: ⁷⁄₈ in. x ⁷⁄₈ in. x ⁷⁄₈ in.
• Remote condenser
• Air-cooled operation
• Self-aligning front panel with key components
• AutoAlert™ indictor lights provide status updates
• Uses R-404A refrigerant
• Provides clean ice with WaterSense adjustable purge controls
• 1-touch cleaning reduces maintenance needs
• Ice pushed into the dispenser using harvest assist
• Important information displayed by scanning the QR code
• Compatible with ICELINQ app
• Preservation mode minimizes downtime and alerts operators to potential issues
• Bluetooth® connectivity
• Stainless steel finish provides durability
• AgION antimicrobial prevents quick germ growth
• Air filter can be removed to facilitate cleaning
• Ideal ambient air temperature: 50-100 degrees F
• Ideal incoming water temperature: 40-100 degrees F
• Ideal incoming water pressure: 20-80 PSIG
• 12,700 BTU

Ice Dispenser Details

• Part of the iceValet® series
• 180-lb. application capacity
• Useful for filling hotel ice buckets
• Polyurethane insulation prevents ice from melting
• Unit-specific QR code can be scanned to provide information
• Push chute dispenses ice
• Removable top panel provides cleaning access
• Metallic finish is corrosion resistant
• Sits on 6-in. legs

Dimensions & Utilities

• Ice machine: 30 in. W x 24 in. D x 23 in. H
• 10.8 A, 5.35 kW
• 208-230 V/60 Hz/1 ph
• Dispenser: 30 in. W x 33¹/₂ in. D x 53¹/₄ in. H
• 2.1 A
• 115 V/60 Hz/1 ph, 11-ft. cord with a NEMA 5-15P plug

Product Features

*Free shipping on Scotsman MC0630MR-32/HD30B-1 within the 48 contiguous states.

From The Manufacturer

MC0630MR-32 Ice Maker: Prodigy ELITE® Ice Maker, cube style, air-cooled, no condenser (remote), production capacity up to 614 lb/24 hours at 70°/50° (540 lb AHRI certified at 90°/70°), medium cube size, ICELINQ® mobile app, Bluetooth® connectivity, preservation mode, external bin full indicator, AutoAlert™ indicating lights, WaterSense adjustable purge control, one-touch cleaning, harvest assist, unit specific QR code, stainless steel finish, AgION™ antimicrobial protection, 208-230v/60/1-ph, 10.8 amps, cULus, NSF, ENERGY STAR®, engineered and assembled in USA; HD30B-1: iceValet® Hotel/Motel Ice Dispenser, floor model, push dispensing, 180 lb storage capacity, designed for 30" wide top mount cube-type ice makers, ADA compliant dispensing area, polyurethane insulation, unit specific QR code, includes 6" legs, metallic finish, includes 11’ power cord with NEMA 5-15P plug, 115v/60/1-ph, 2.1 amps, NSF, cULus, engineered and assembled in USA

*Image may not depict product color, inclusions or accessories.

Commercial: 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor
