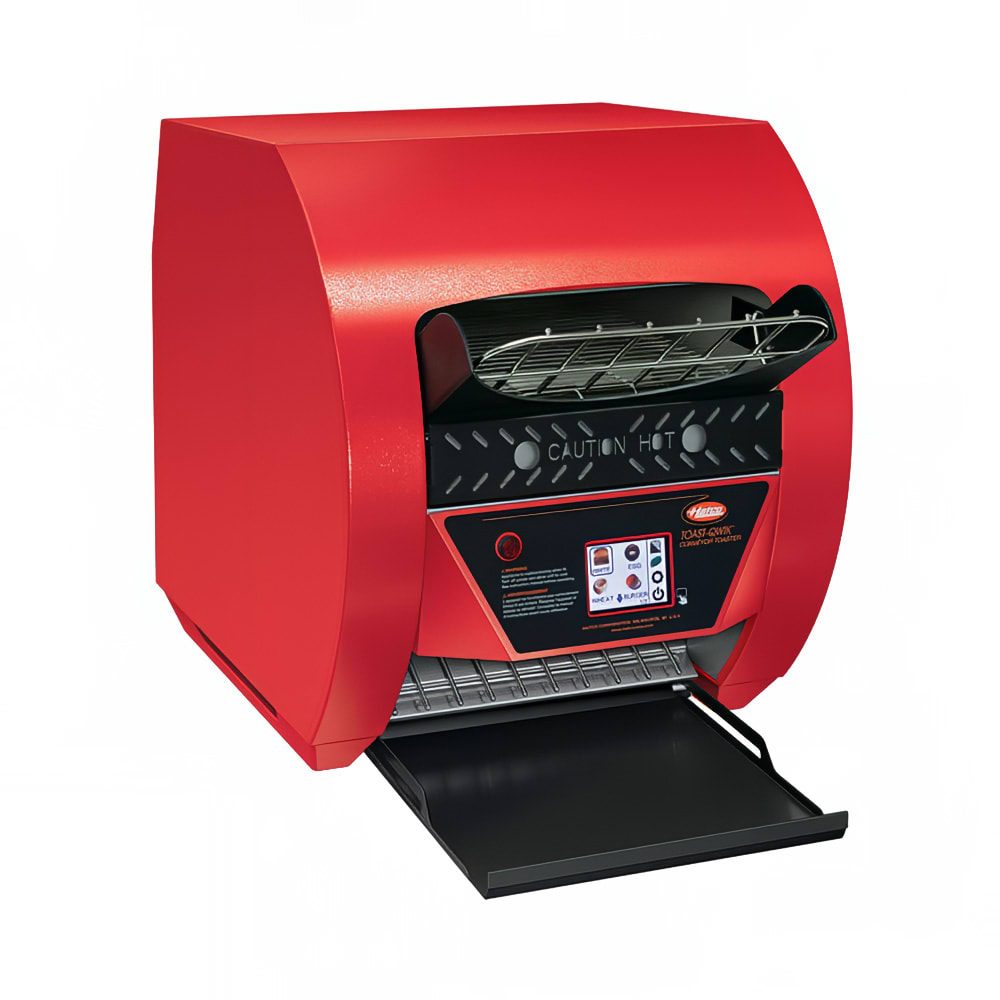

Hatco TQ3-500H Conveyor Toaster - 480 Slices/hr w/ High 3" Product Opening, Red, 208v/1ph

Made of red powder-coated steel, the Hatco TQ3-500H Toast-Qwik® conveyor toaster is compact in size, can produce as many as 480 slices of toast per hour, and adds an attractive splash of color to service areas. To fit larger bread items, this toaster is designed with an opening that measures 10³/₂₀ inches wide by 3 inches high. Its metal-sheathed heating elements withstand heavy use, and its horizontal conveyor belt has variable speed settings to adjust product crispness.

For user-friendly control, the Hatco TQ3-500H conveyor toaster has touchscreen technology, and the controls are front mounted for comfortable accessibility. Designed with a removable fan filter and crumb tray, this unit is simple to clean. It can be programmed with 12 toast recipes to enable quick changes between product batches, and its power-save mode can be activated manually or programmed for automatic activation to reduce energy consumption during slow periods.

Product Details

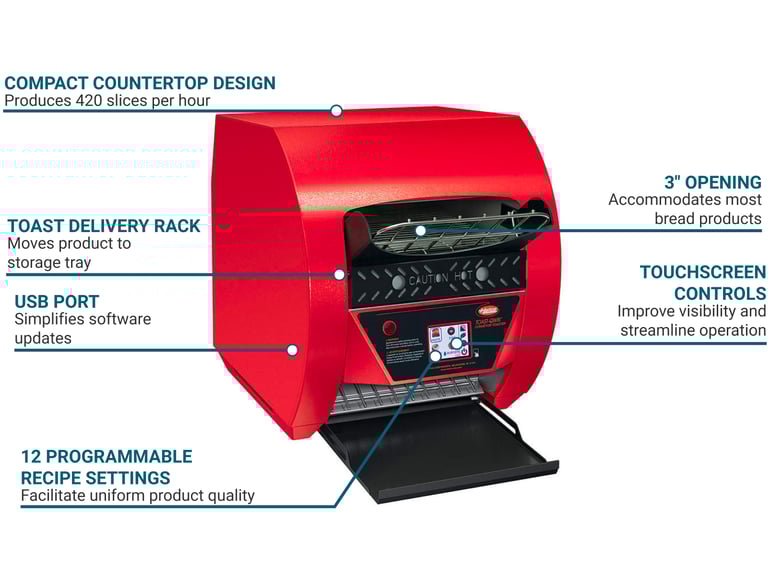

• Part of the Toast-Qwik series
• Works with horizontal conveyor
• Countertop design
• Steel exterior is red powder coat finished
• 8 slices per minute/480 slices per hour capacity
• 3-in. product opening
• Quick setting adjustments with touchscreen controls
• 12 recipe settings can be programmed
• USB port is integrated for streamlined software updates
• Maintenance is simple with detachable fan filter
• Cleanup facilitated with removable crumb tray
• Variable speed adjustment for precise toasting level control
• Programmable power-saving mode with manual or automatic activation
• Products moved to stainless steel toast tray with toast delivery rack
• Metal-sheathed heating elements offer increased durability

Product Features

Dimensions & Utilities

• Opening: 10³/₂₀ in. W x 3 in. H
• Overall: 14⁷/₁₀ in. W x 20³¹/₅₀ in. D x 17¹/₈ in. H
• 10.7 A, 2.22 kW
• 208 V/50-60 Hz/1 ph, cord with a NEMA 6-15P plug

*Free shipping on Hatco TQ3-500H within the 48 contiguous states.

From The Manufacturer

Toast-Qwik® Conveyor Toaster, horizontal conveyor, touchscreen controls, (12) programmable recipes, countertop design, all bread types toaster, approximately 7-8 slices/min capacity, 3" opening height, 4" legs, cULus, UL EPH Classified, ANSI/NSF 4, Made in USA

*Image may not depict product color, inclusions or accessories.

1-year Parts & Labor; 2-year Element Parts

Hatco TQ3-500H Specifications

Wisconsin-based Hatco has been a pioneer in the food warming and holding market since 1950. The brand also offers light cooking equipment and dishwasher boosters that keep dishwashing machines up to proper sanitizing temperatures, helping operations stay safe and efficient.
