Wisconsin-based Hatco has been a pioneer in the food warming and holding market since 1950. The brand also offers light cooking equipment and dishwasher boosters that keep dishwashing machines up to proper sanitizing temperatures, helping operations stay safe and efficient.
Hatco PMG-200 Powermite® Gas Booster Water Heater, 4 3/4 Gal, 195,000 BTU, Liquid Propane
Free Shipping Item
Retail Price: $21,631.00
$11,897.05 /Each
Selected Gas Type: Liquid Propane
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Similar Products in Stock Now
Previous
Next
Hatco PMG-200 Description

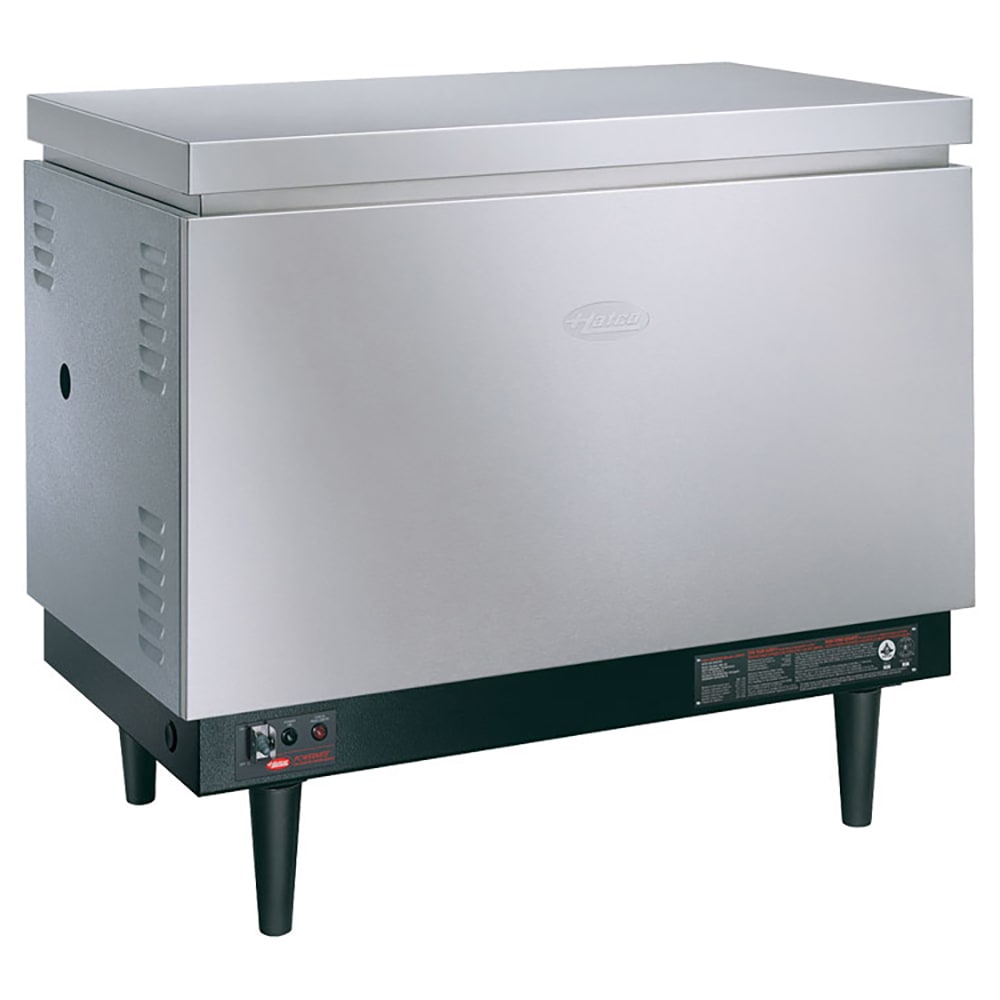

Designed for installation under a dishtable, the Hatco PMG-200 Powermite® gas booster water heater has six tube-type burners using both primary and secondary air for efficient ignition. This heater provides the 180-degree-Fahrenheit water needed to sanitize dishware and flatware thoroughly. For instant startup, this unit features a spark-to-light standing pilot. The stainless steel construction expedites cleaning and its tank is protected by phosphate water treatment.
The Hatco PMG-200 gas booster water heater is powder coated on the sides and back to resist scratches. This unit can be adjusted with the temperature-relief valve and the pressure-reducing valve and monitored using two pressure gauges. The shock absorber muffles noise generated by the booster and the low-water cut-off feature protects the elements from burnout when water is low.
Product Details
- 43/4-gal. capacity
- Provides 180-degree-F water
- Started with a spark-to-light standing pilot
- Finned-tube, copper heat exchanger
- Durably built with the stainless steel front, top, and tank
- Powder-coated sides and back
- Fits under a dishtable
- Shock absorber deadens banging noises
- 2 pressure gauges
- Temperature-relief valve
- Pressure-reducing valve
- Water tank is treated with blended phosphate
- 3⁄4-in. NPT pipe
- Fittings for water inlet and outlet
- 195,000 BTU
Temperature Rise Ratings
- 602 GPH at 30-degree-F rise
- 452 GPH at 40-degree-F rise
- 361 GPH at 50-degree-F rise
- 301 GPH at 60-degree-F rise
- 258 GPH at 70-degree-F rise
Dimensions & Utilities
- 403/20 in. W x 2416/25 in. D x 31 in. H
- 3 A, 360 W
- 120 V/60 Hz/1 ph
- Heated by LP gas
- 3⁄4-in. NPT gas connection
Call customer care at (800) 541-8683 for areas with elevations of 2,000 ft. or more
*Free shipping on Hatco PMG-200 within the 48 contiguous states.
From The Manufacturer
Powermite® Booster Heater, gas, 4.75 gal storage capacity, blended phosphate water treatment system, low water cut-off, temp./pressure relief valve, pressure reducing valve, (2) temp./pressure gauges, indicator light & on/off switch, stainless steel tank & front, painted body & legs, 195,000 BTU, UL EPH Classified, CSA, Made in USA
*Image may not depict product color, inclusions or accessories.
10-year Parts; 1-year Labor
Hatco PMG-200 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hatco |
| 40F Recovery (gph) | 452 |
| 70F Recovery (gph) | 258 |
| Amps | 3 |
| Capacity (gallons) | 4.75 |
| Gas Type | LP |
| Heat | Gas |
| kW | 45.7 |
| Product | Booster Heaters |
| Product Type | Dishwashing Equipment & Supplies |
| Series | Powermite® |
| Total BTU | 195000 |
| Usage Level | Medium Duty |
| Voltage | 120 |
| Warranty | 10-year Parts; 1-year Labor |
| Watts | 360 |
| Width (in) | 35.95 |
| Weight | 215.00 |
Documents
Residential Users: The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.
Important Prop 65 information for California residents.
