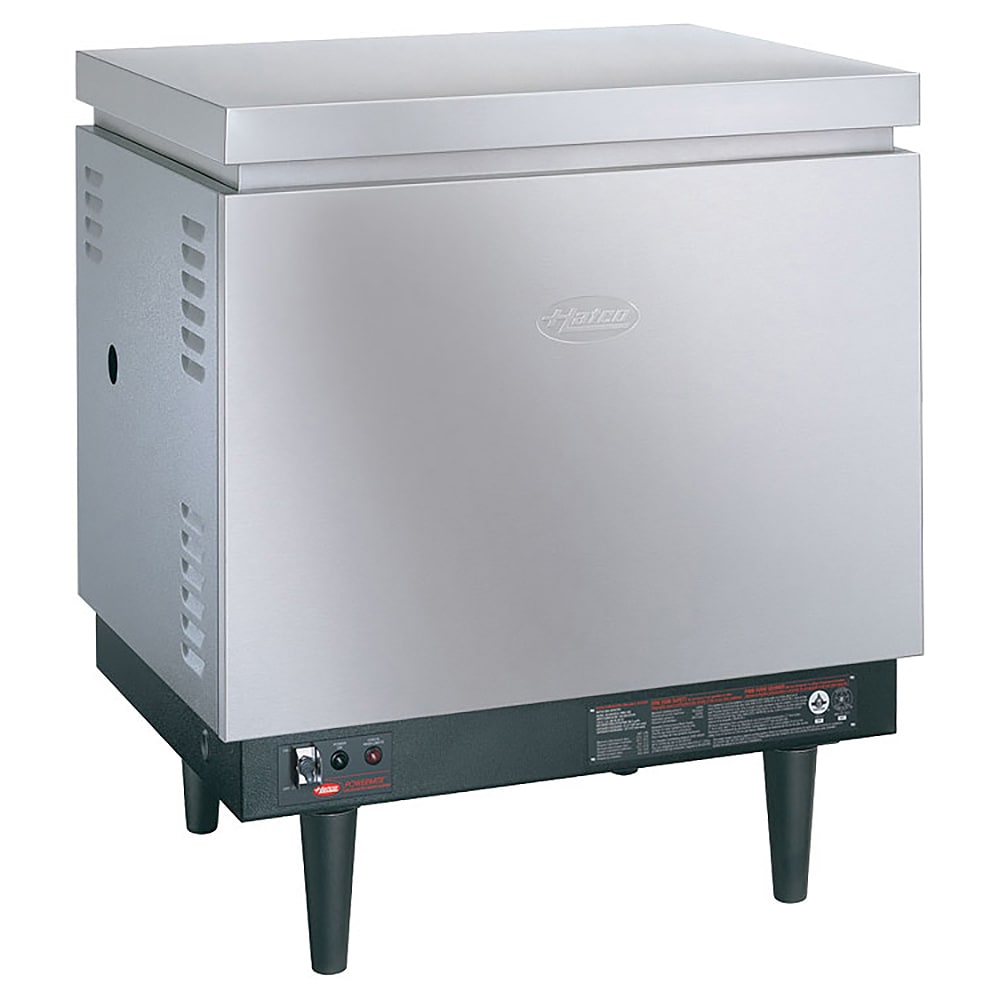

Hatco PMG-100 Powermite Booster Heater, NG Gas, 5 Gal, 105,000 BTU

Image may not depict product color, inclusions or accessories.

KaTom #: 042-PMG100NG • MPN: PMG-100-120-QS
Ships Free

Typically ships within 1 - 3 business days

(0 reviews)Write a Review
Retail Price: $12,561.00
$6,908.55 / Each

Selected Gas Type: Natural Gas

Image may not depict product color, inclusions or accessories.

Hatco PMG-100 Description


The Hatco PMG-100-120-QS Powermite® booster heater quickly brings water to a sanitizing 180 degrees Fahrenheit. This unit is heated by natural gas and has three tube-type burners with a sparking standing pilot. Its stainless steel tank, front, and top resist corrosion and withstand heavy use. The powder-coated sides and back match the rest of the unit.

A finned tube copper heat exchanger heats the water to its proper temperature. When the pressure gets too high, gauges alert the operator and a valve releases water to stabilize it. A low water cut-off feature activates when the tank water is low. The Hatco PMG-100-120-QS Powermite booster heater’s phosphate water treatment system reduces scale buildup.

Product Details

  • Heated by natural gas
  • Provides sanitizing 180-degrees-F water to a dishmachine
  • Burner system uses primary and secondary air for regular ignition
  • Stainless steel tank, front, and top can endure heavy use
  • Powder-coated sides and back
  • Finned tube copper heat exchanger ensures water reaches its proper temperature
  • Standing pilot ensures gas flow
  • 3 tube-type burners provide heat
  • Temperature/pressure relief valve releases water when the pressure is too high
  • Pressure-reducing valve stabilizes flow pressure
  • 2 temperature/pressure gauges enable the user to monitor and adjust as needed
  • Automatic low water cut-off
  • Phosphate water treatment system reduces scale buildup
  • Shock absorber softens water hammer
  • 120 V/60 Hz/1 ph, 360 W, 3 A
  • 105,000 BTU
  • Overall dimensions: 27.45 in. W x 20.73 in. D x 31 in. H
  • cCSAus Gas-Fired and UL-EPH listed; ANSI/NSF 5 certified
  • Made in the U.S.

Powermite® Booster Heater, gas, 4.75 gal storage capacity, blended phosphate water treatment system, low water cut-off, temp./pressure relief valve, pressure reducing valve, (2) temp./pressure gauges, indicator light & on/off switch, stainless steel tank & front, painted body & legs, 105,000 BTU, UL EPH Classified, ANSI/NSF 4, CSA, Made in USA

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

Hatco PMG-100 Specifications

PDF Spec Sheet
Manufacturer Hatco
40F Recovery 241 gph
70F Recovery 138 gph
BTU 105,000
Heat Gas
Width (in) 27-1/2
Width (in) Range 21 - 30 in
Gas Type NG
Product Booster Heater
Product Type Dishwashing Equipment & Supplies
Weight 180.00
