Wisconsin-based Hatco has been a pioneer in the food warming and holding market since 1950. The brand also offers light cooking equipment and dishwasher boosters that keep dishwashing machines up to proper sanitizing temperatures, helping operations stay safe and efficient.

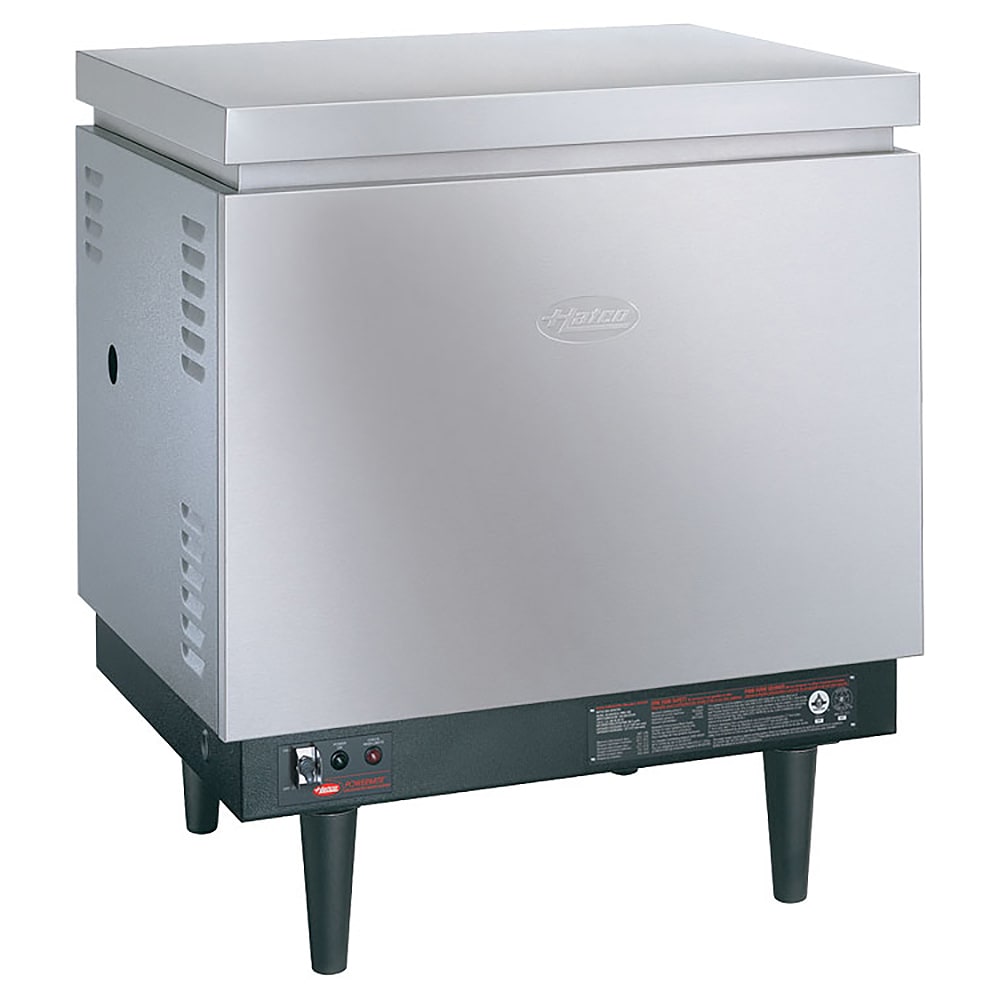

Hatco PMG-100 Powermite® Gas Booster Water Heater, 4 3/4 Gal, 105,000 BTU, Liquid Propane
Free Shipping Item
Retail Price: $18,236.00
$10,029.80 /Each
Selected Gas Type: Liquid Propane
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Attention: Order by 07-01-2025 to save before the price increases!
Similar Products in Stock Now
Previous
Next
Hatco PMG-100 Description
The Hatco PMG-100 Powermite® gas booster water heater has three tube-type burners to provide sanitizing water at 180 degrees Fahrenheit. Designed to fit beneath a dishtable, this unit can be close when needed. The front, top, and tanks are made of durable stainless steel, and the sides and back are powder coated to resist scratches. The standing pilot must be sparked to light for operation.
Operated by an efficient fin-tubed heat exchanger, the Hatco PMG-100 gas booster water heater can be checked using two temperature gauges. The water is treated with blended phosphate to fight limestone buildup. For safe operation, this unit cuts off when water gets too low. The shock absorber eliminates potential knocking noises, keeping this booster quiet. As a safety measure, a temperature-relief valve and pressure-reducing valve are included.
Product Details
- 43/4-gal. capacity
- Supplies sanitizing water at 180 degrees F
- Designed to fit under a dishtable
- 2 pressure gauges
- Temperature-relief valve
- Pressure-reducing valve
- Uses primary and secondary air for consistent ignition
- 3 tube-type burners
- Turns off when the water level is too low to operate
- Stainless steel tanks, top, and front
- Powder-coated sides and back
- Standing pilot for light-to-start operation
- Shock absorber reduces noise
- Water treated with blended phosphate to eliminate limestone
- 3⁄4-in. NPT pipe
- Fittings for water inlet and outlet
- Finned-tube, copper heat exchanger
- 105,000 BTU
Temperature Rise Ratings
- 321 GPH at 30-degree-F rise
- 241 GPH at 40-degree-F rise
- 193 GPH at 50-degree-F rise
- 161 GPH at 60-degree-F rise
- 138 GPH at 70-degree-F rise
Dimensions & Utilities
- 3113/20 in. W x 2416/25 in. D x 31 in. H
- 3 A, 360 W
- 120 V/60 Hz/1 ph
- Heated by LP gas
- 3⁄4-in. NPT gas connection
*Free shipping on Hatco PMG-100 within the 48 contiguous states.
From The Manufacturer
Powermite® Booster Heater, gas, 4.75 gal storage capacity, blended phosphate water treatment system, low water cut-off, temp./pressure relief valve, pressure reducing valve, (2) temp./pressure gauges, indicator light & on/off switch, stainless steel tank & front, painted body & legs, 105,000 BTU, UL EPH Classified, CSA, Made in USA
*Image may not depict product color, inclusions or accessories.
10-year Parts; 1-year Labor
Hatco PMG-100 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hatco |
| 40F Recovery (gph) | 241 |
| 70F Recovery (gph) | 138 |
| Amps | 3 |
| Capacity (gallons) | 4.75 |
| Gas Type | LP |
| Heat | Gas |
| kW | 24.8 |
| Product | Booster Heaters |
| Product Type | Dishwashing Equipment & Supplies |
| Series | Powermite® |
| Total BTU | 105000 |
| Usage Level | Medium Duty |
| Voltage | 120 |
| Warranty | 10-year Parts; 1-year Labor |
| Watts | 360 |
| Width (in) | 27.5 |
| Weight | 180.00 |
