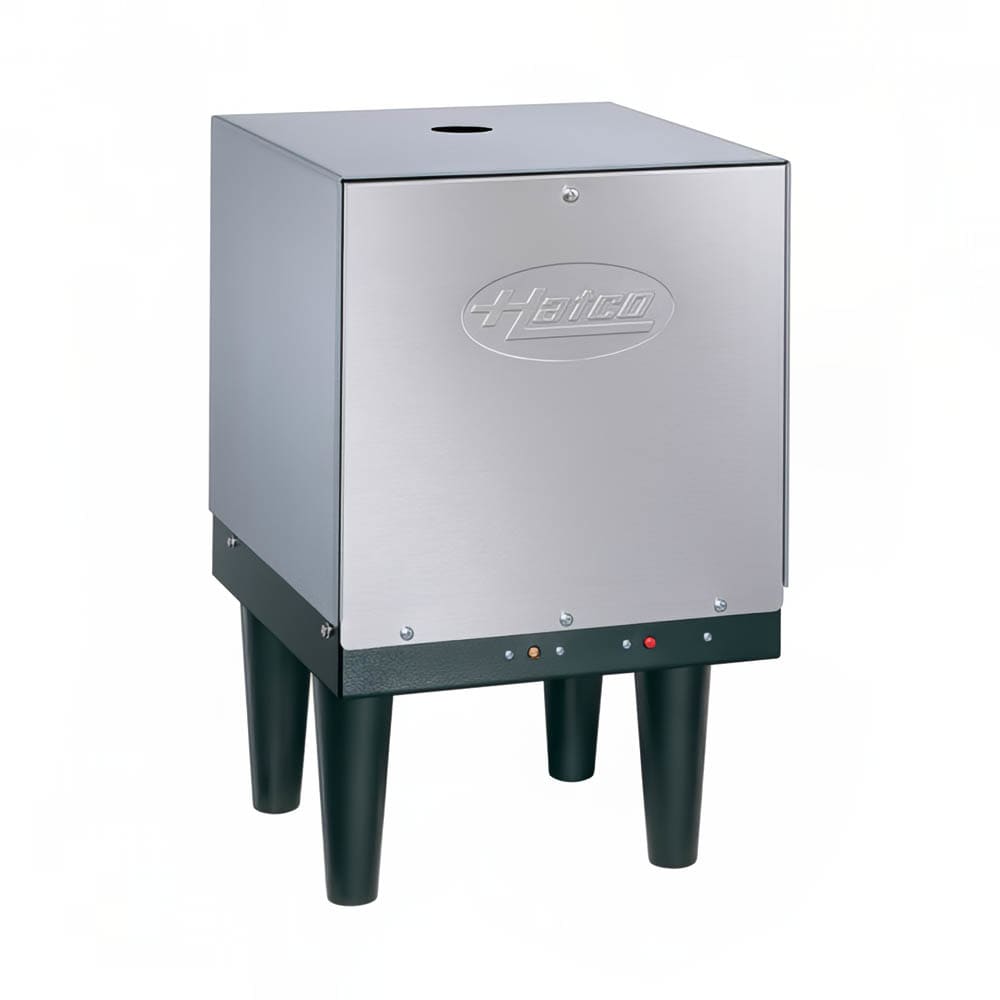

Hatco MC-15 Mini Compact Booster Water Heater, 3 1/5 Gallon, 15.0 kW, 208v/3ph

Using fiberglass insulation, the Hatco MC-15 mini compact booster water heater minimizes heat loss and optimizes recovery time for consistent use in busy kitchens. Because it is equipped with a stainless steel front panel, this unit can be wiped clean. The hammertone body is scratch resistant and powder coated with a silver exterior. Holding 3¹/₅ gallons, this booster heats water to the 180-degree-Fahrenheit temperature needed to properly sanitize dishware.

With a temperature-relief valve and a pressure-reducing valve, the Hatco MC-15 mini compact booster water heater works at levels safe for the operator. Its internal temperature can be monitored with two pressure gauges. For flexible installation, the unit can stand on countertops or the floor with its 6-inch black legs.

Product Details

• 3¹/₅-gal. capacity
• Reaches 180 degrees F for sanitizing
• Recovers temperatures quickly
• Maximum 151 GPH at 40-degree-F rise
• Maximum 86 GPH at 70-degree-F rise
• Hammertone body with protective, silver powder coating
• Durable, stainless steel tank and front panel
• Fiberglass insulation traps heat
• Black base
• 2 pressure gauges
• Temperature-relief valve
• Pressure-reducing valve
• Elements cut off when the water level is low, preventing irreversible damage
• ³⁄₄-in. NPT pipe
• Fittings for water inlet and outlet
• 6-in. legs

Dimensions & Utilities

• 11³/₄ in. W x 12⁷/₈ in. D x 18¹/₂ in. H
• 41.7 A, 15 kW
• 208 V/60 Hz/3 ph

*Free shipping on Hatco MC-15 within the 48 contiguous states.

From The Manufacturer

Booster Water Heater, electric, 3.2 gallon storage capacity, fast recovery, stainless steel tank & front panel, powder-coated silver-gray hammertone body, black base, 6" legs, 15 kW, NSF, cUL, UL, 208v/60/3ph

*Image may not depict product color, inclusions or accessories.

1-year Parts & Labor; 10-year Tank Parts
