Hatco HWBHRN-11QT 11 qt Drop In Soup Warmer w/ Infinite Controls, 240v/1ph
Retail Price: $804.00
$442.20 /Each
Selected Voltage: 240V, 1 Phase
| 120V, 1 Phase |
| 208V, 1 Phase |
| 240V, 1 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Similar Products in Stock Now

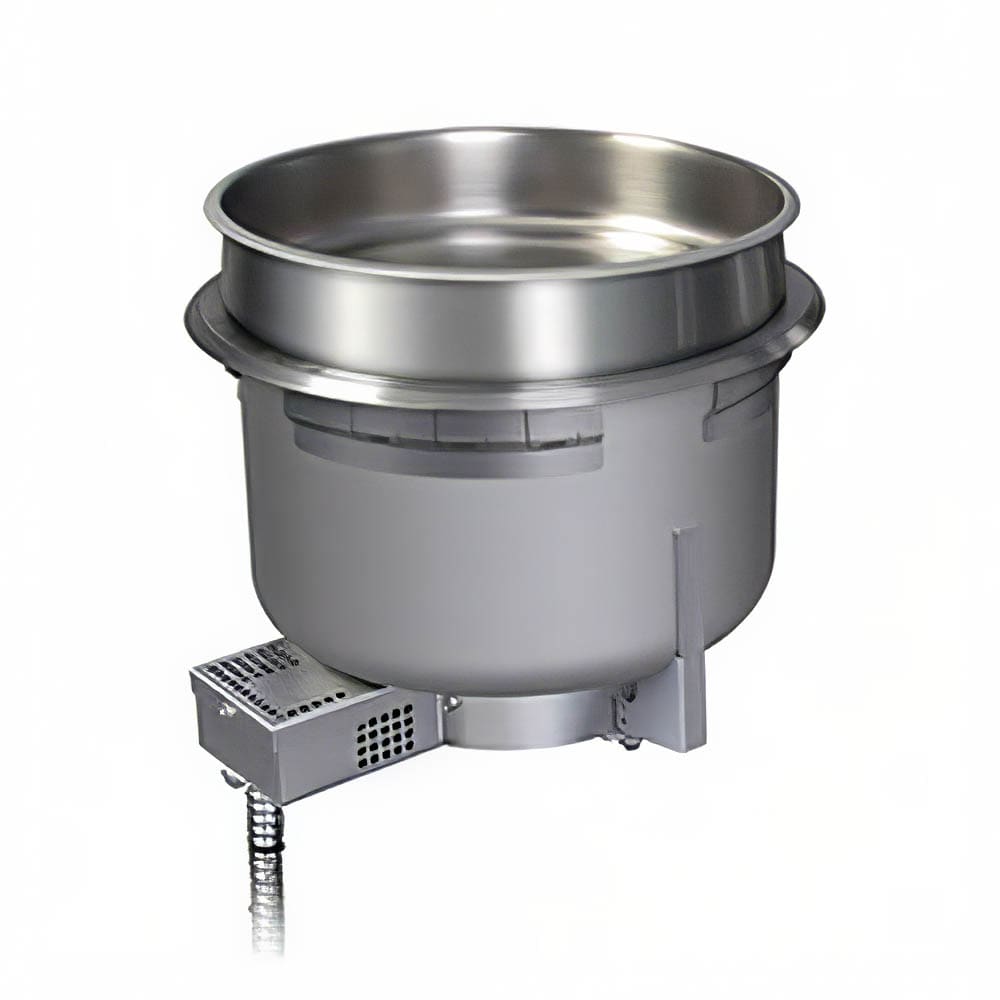

Hatco HWBHRN-11QT Description

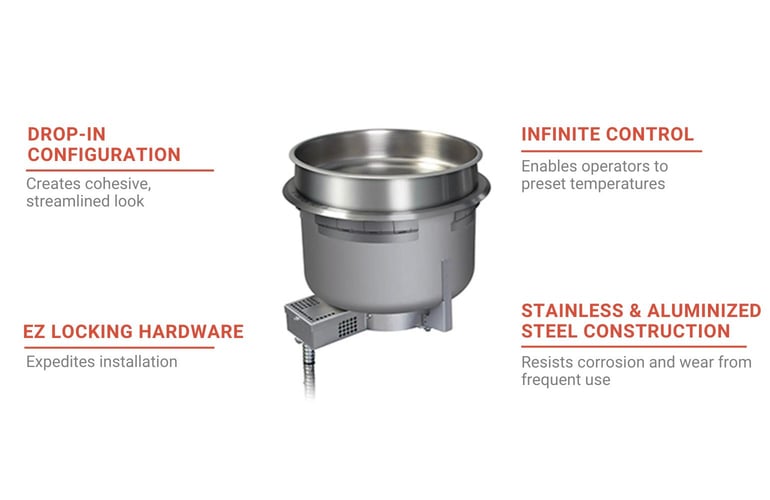

For fabricating a specific steam table layout, the 11-quart Hatco HWBHRN-11QT drop-in heated well measures 125/16 inches in diameter by 959/100 inches high and can be installed into a circular cutout between 111/8 and 119/16 inches in diameter. EZ locking hardware is included to expedite installation. This top-mounted unit's resilient, corrosion-resistant aluminized and stainless steel housing withstands high-volume use.
Operators can preset the Hatco HWBHRN-11QT heated soup's infinite switch control once the pilot light is ignited to hold soups, chilis, curries, or sauces at safe serving temperatures for extended periods. The control panel is connected to 36-inch-long lead cords so it can be installed at a distance to simplify operation. Because it lacks a conduit and control box enclosure, components are simple to service.
Product Details
- 11-qt. capacity
- Fabricator component only
- Drop-in top-mount model
- Metal-sheathed heating element
- No conduit or control box enclosure
- High-watt unit
- Remote control panel with infinite controls and pilot light
- 36-in. leads
- Stainless and aluminized steel housing
- Includes EZ locking hardware for quick installation
- Uninsulated
- Can be installed in a non-combustible countertop cutout from 111/8 to 119/16 in. in diameter
- Can be installed into a combustible countertop cutout from 13 in. x 13 in. to 131/4 in. x 131/4 in.
- Cutout dimensions for control box: 21/8 in. W x 33/8 in. H
Dimensions & Utilities
- Infinite control: 23/4 in. W x 4 in. H
- Overall: 125/16 in. dia. x 959/100 in. H
- 3.3 A, 800 W
- 240 V/60 Hz/1 ph
Product Features
*Free shipping on Hatco HWBHRN-11QT within the 48 contiguous states.
From The Manufacturer
(Fabricator component only) Drop-In Heated Well, round, non-insulated, top mounted, 11 quart, Infinite switch control, pilot light & leads, stainless steel construction (high watt), cURus, 240v/60/1ph
*Image may not depict product color, inclusions or accessories.
Hatco HWBHRN-11QT Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hatco |
| Capacity (qt) | 11 |
| Controls | Infinite |
| Diameter (in) | 12.31 |
| Height (in) | 9.59 |
| Hertz | 60 |
| Installation Type | Drop In |
| Lid Type | None |
| Number of Insets | 1 |
| Operation | Wet |
| Phase | 1 |
| Product | Soup Warmers |
| Product Type | Food Bars & Buffets |
| Special Features | Wet or Dry |
| Voltage | 240 |
| Warranty | 1-year Parts & Labor; 2-year Element Parts |
| Weight | 8.00 |
