Hatco GRHDH-4P 58 1/2" Full Service Countertop Heated Display Case - (1) Shelf, 240v/1ph

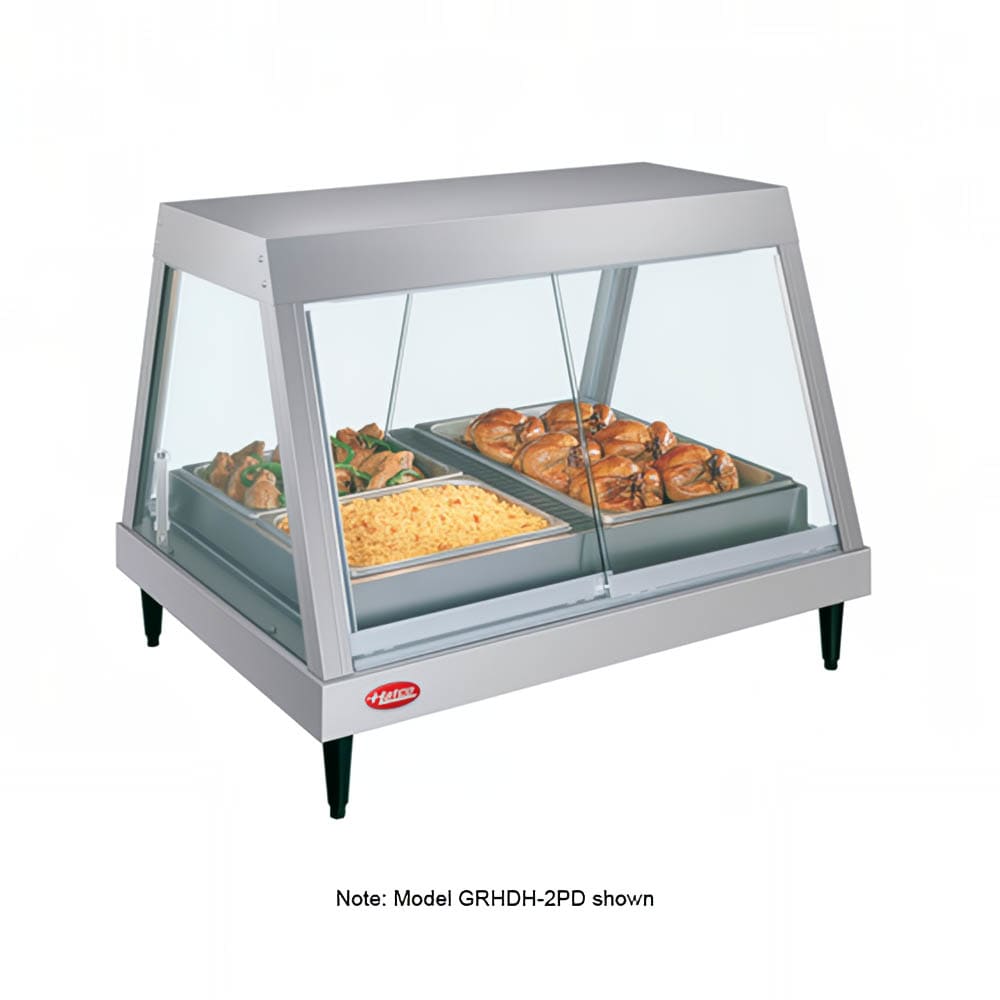

Built to merchandise food pans, the Hatco GRHDH-4P Glo-Ray® heated display case features a clear tempered glass exterior with a stainless steel and aluminum frame. Customers have a full view into its incandescent-lighted cabinet, and the bulbs' shatterproof design protects displayed foods from glass shards. For use on countertops in cafeterias, supermarkets, and gas stations, this unit measures 58¹/₂ inches wide by 26 inches deep by 25 inches high and is furnished with adjustable legs that prevent wobbling. Although its base is heated, its exterior remains cool to protect countertops from damage. Its customer- and employee-facing glass doors create a streamlined self-service system.

This Hatco GRHDH-4P heated display case combines top and bottom heating with humidity to ensure foods are held at serving temperatures without sacrificing texture. For specific holding temperatures, operators can modify the shelf's base from 100 to 200 degrees Fahrenheit via a thermostat. A pre-focused, top-mounted infrared heating element directs heat toward the shelf's outer edge—a prevalent area for heat loss. The humidity chamber includes a 6-quart water reservoir that produces ample moisture for as many as four full-size food pans. Overall, the shelf measures 54 inches wide by 21¹/₂ inches high.

Product Details

• Compatible with long-term holding
• Countertop model
• (1) 54-in. x 21¹/₂-in. heated shelf with 4-pan capacity
• Thermostatically controlled heated base (adjustable between 100-200 degrees F)
• Upper pre-focused infrared heater
• 6-qt. water reservoir in humidity chamber
• Made of aluminum and stainless steel
• Base exterior remains cool during heating
• Tempered glass sides
• Front glass doors
• 2 rollerless rear sliding doors
• 6 shatterproof incandescent light bulbs
• 4-in. adjustable legs
• Water must be less than 3 GPG

Dimensions & Utilities

• 58¹/₂ in. W x 26 in. D x 25 in. H
• 9.8 A, 2285 W
• 240 V/60 Hz/1 ph, 6-ft. cord with NEMA L14-20P plug

Product Features

*Free shipping on Hatco GRHDH-4P within the 48 contiguous states.

From The Manufacturer

Glo-Ray® Heated Display Case, countertop, glass front design, (4) pan single shelf, humidity with 6 qt. capacity, pre-focused infrared top heat, tempered glass sides, rear sliding doors, stainless steel & aluminum construction, with 4" legs, cULus, UL EPH Classified, Made in USA

*Image may not depict product color, inclusions or accessories.

1-year Parts & Labor; 2-year Element Parts

Hatco GRHDH-4P Specifications

Wisconsin-based Hatco has been a pioneer in the food warming and holding market since 1950. The brand also offers light cooking equipment and dishwasher boosters that keep dishwashing machines up to proper sanitizing temperatures, helping operations stay safe and efficient.

Documents

Spec Sheet

Warranty

Parts Breakdown

Manual

Brochure
