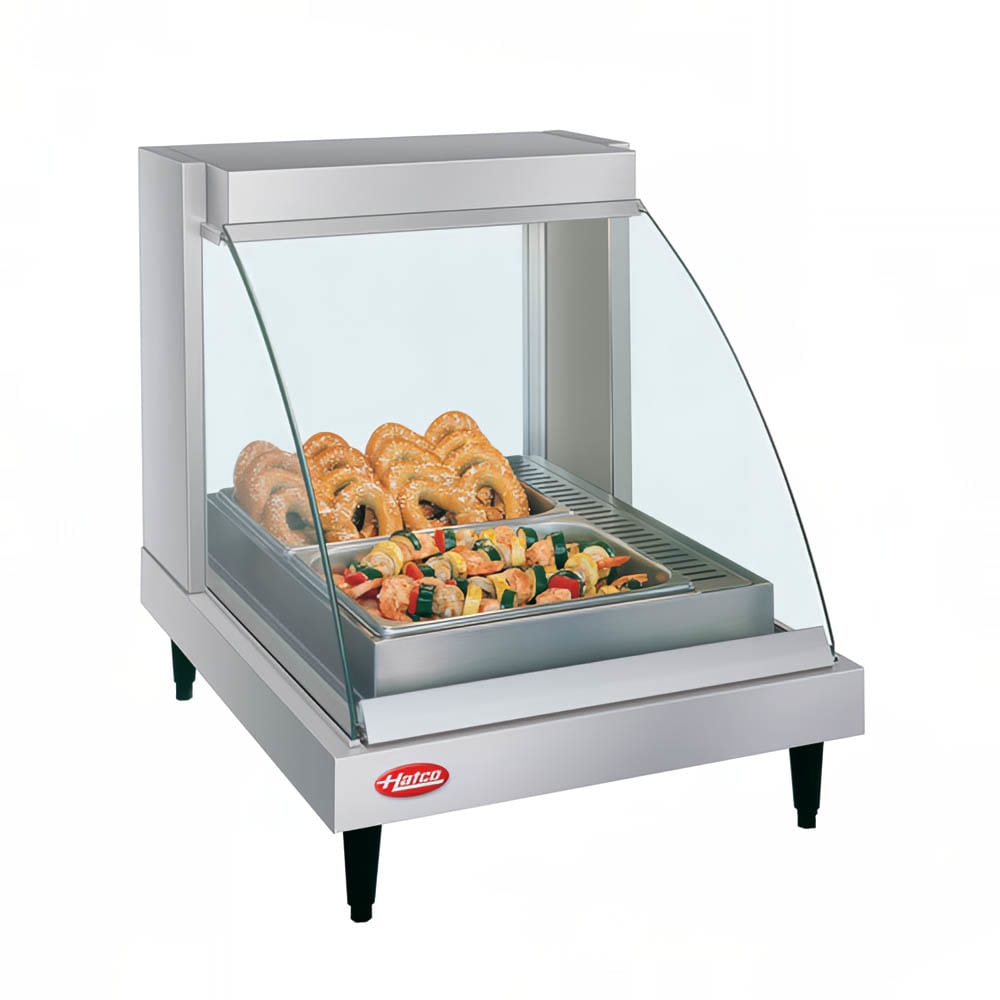

Hatco GRCDH-1P 20 5/8" Full Service Countertop Heated Display Case - (1) Shelf, 120v

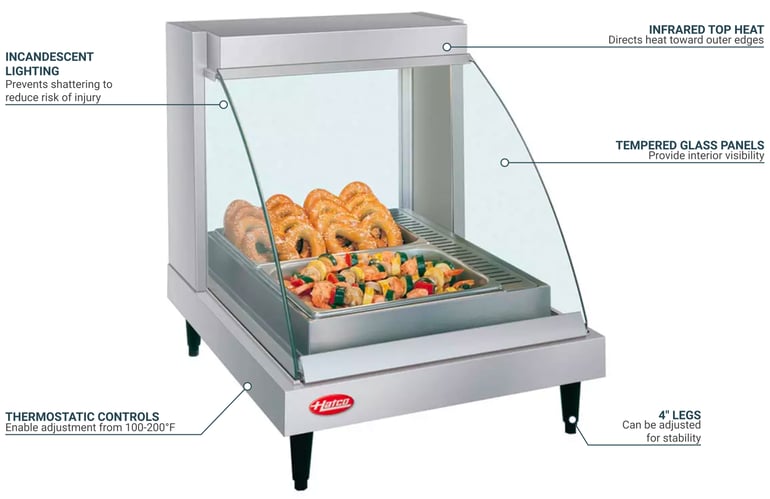

For maximum visibility, the Hatco GRCDH-1P countertop heated display case is built with a tempered glass front and side panels. To brighten the cabinet, it has incandescent lighting, and the two bulbs are shatter resistant to reduce the risk of injury and food contamination. This case's relative humidity level can be adjusted within a range of 10 to 30 percent. Operators can utilize thermostatic controls to adjust the base's temperature from 100 to 200 degrees Fahrenheit as needed.

The Hatco GRCDH-1P full-service heated display case directs heat to the outer edges using infrared heating elements positioned at the cabinet's top. This helps prevent heat loss, ensuring food is evenly warmed without hot or cold spots. Designed to fit on a countertop, this unit measures 20⁵/₈ inches wide by 26 inches deep by 24 inches high, and its equipped with 4-inch adjustable legs for stability.

Product Details

• Part of the Glo-Ray® series
• 1-pan single shelf
• 2 shatter-resistant incandescent light bulbs
• Pre-focused infrared top heat
• Heated base
• Adjustable thermostat
• Temperature range: 100-200 degrees F
• Pan skirt for bottom shelf included
• Humidity adjustable from 10-30 percent
• Water supply must be less than 3 grains of hardness per gallon
• Water supply with more than 3 grains of hardness per gallon must be treated and softened before use
• Curved tempered glass
• Tilting glass front panel
• For countertop use
• Rust-resistant stainless steel interior
• 4-in. adjustable legs

Product Features

Dimensions & Utilities

• Usable shelf space: 18.12 in. W x 21 in. D
• Overall: 20⁵/₈ in. W x 26 in. D x 24 in. H
• 5.5 A, 660 W
• 120 V/60 Hz/1 ph, 6-ft. cord with a NEMA 5-15P plug

*Free shipping on Hatco GRCDH-1P within the 48 contiguous states.

From The Manufacturer

Glo-Ray® Designer Heated Display Case with Humidity, curved glass, countertop design, (1) pan single shelf, incandescent lighting, stainless steel interior, 4" adjustable counter legs, cUL, UL, UL EPH Classified

*Image may not depict product color, inclusions or accessories.

1-year Parts & Labor; 2-year Element Parts

Hatco GRCDH-1P Specifications

Wisconsin-based Hatco has been a pioneer in the food warming and holding market since 1950. The brand also offers light cooking equipment and dishwasher boosters that keep dishwashing machines up to proper sanitizing temperatures, helping operations stay safe and efficient.
