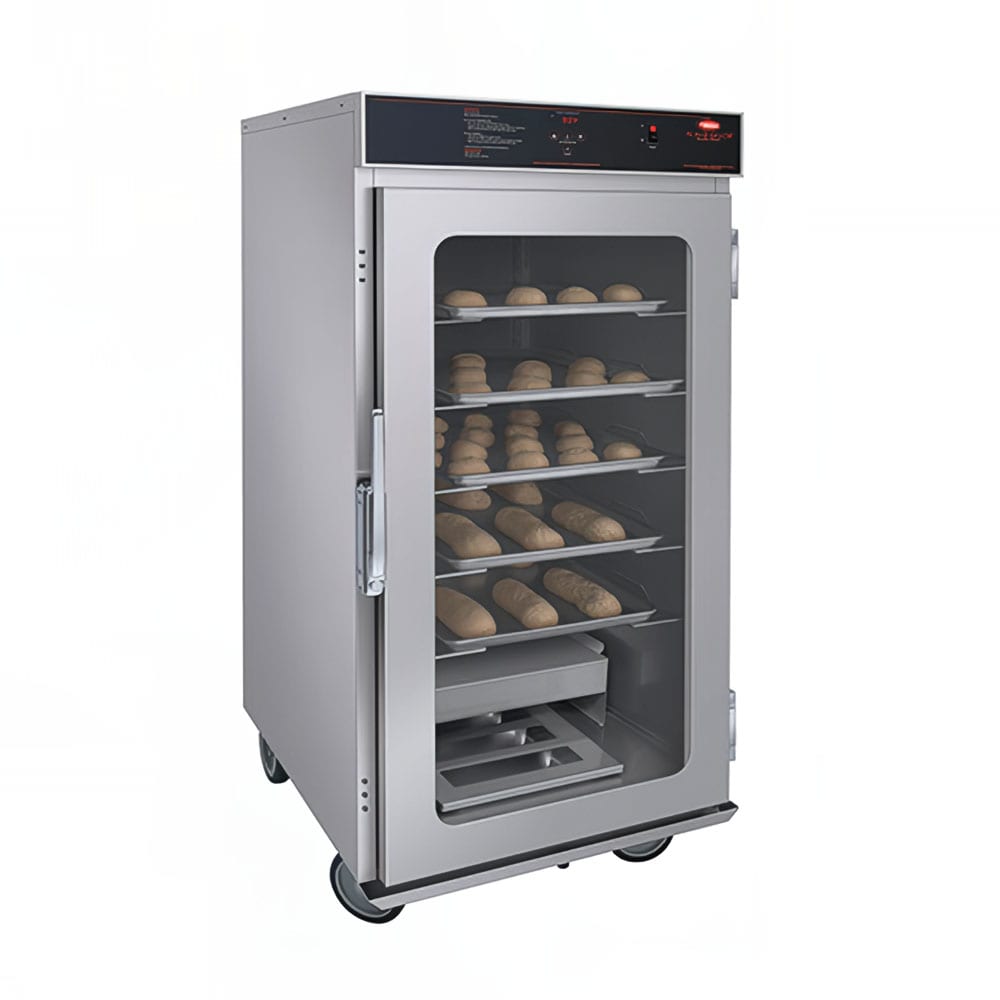

Hatco FSHC-12W2 3/4 Height Insulated Mobile Heated Cabinet w/ (12) Pan Capacity, 208v/1ph

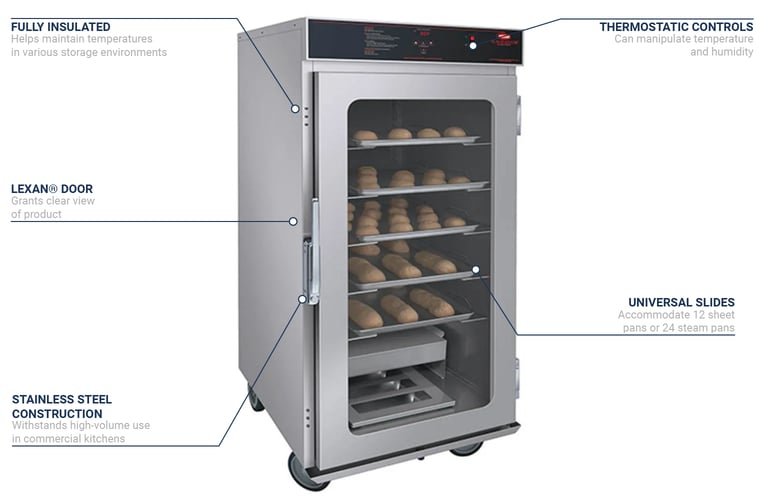

The Hatco FSHC-12W2 Flav-R-Savor® humidified holding cabinet's pass-thru configuration enables operators to access pans from the front and back of the unit. A clear Lexan® door is built into each side to provide a full view of the interior, streamlining inventory checks. To ensure the doors close properly, magnetic latches secure them in place when closed, while full-perimeter gaskets help reduce heat loss. Universal slides mounted on 3-inch centers accommodate as many as 24 steam pans or 12 sheet pans, and the slides can be raised or lowered by 1¹/₂ inches. Made of durable, rust-and corrosion-resistant stainless steel for longevity, this unit measures 25¹⁹/₂₀ inches wide by 35¹/₁₀ inches deep by 57³/₁₀ inches high and is mounted on four 5-inch casters.

The Hatco FSHC-12W2 holding cabinet maintains temperatures between 80 and 200 degrees Fahrenheit, ensuring foods are held in a safe environment for serving. Temperatures and humidity can be adjusted with the electronic controls to accommodate specific holding requirements, retain food texture, and support proofing. A digital readout is displayed on the unit so users can identify the holding temperature quickly, and to prevent temperature changes, the doors, side walls, top, bottom, and control panel are fully insulated.

Product Details

• 1-section, pass-thru unit
• ³⁄₄ height
• Accommodates 12 sheet pans or 24 steam pans
• Holding temperature range: 80-200 degrees F
• Universal wire slides adjustable by 1¹/₂ in.
• 2 Lexan doors with magnetic latches and full-perimeter gaskets
• Stainless steel construction
• Fully insulated doors, side walls, top, bottom, and control panel
• Electronic controls with digital readout temperature range
• Humidity and heat are thermostatically controlled
• (4) 5-in. casters (2 swivel with locks and 2 rigid)

Dimensions & Utilities

• 25¹⁹/₂₀ in. W x 35¹/₁₀ in. D x 57³/₁₀ in. H
• 7.7 A, 1,608 W
• 208 V/60 Hz/1 ph, 10-ft. cord with NEMA 6-15P plug

Product Features

*Free shipping on Hatco FSHC-12W2 within the 48 contiguous states.

From The Manufacturer

Flav-R-Savor® Humidified Holding Cabinet, (2) Lexan® doors, Pass-thru, (12 pair) universal slides 3" OC adjustable on 1-1/2" OC, stainless steel construction, 5" swivel casters (two swivel with wheels locks, two rigid), NSF, cULus, Made in USA

*Image may not depict product color, inclusions or accessories.

1-year Parts & Labor; 2-year Element Parts

Hatco FSHC-12W2 Specifications

Wisconsin-based Hatco has been a pioneer in the food warming and holding market since 1950. The brand also offers light cooking equipment and dishwasher boosters that keep dishwashing machines up to proper sanitizing temperatures, helping operations stay safe and efficient.
