Hatco FR-6 Food Rethermalizer, Bain Marie Heater, 6 KW, 240v/3ph

Compatible with heating holding tanks for food reconstitutors or bain maries, this Hatco FR-6 food rethermalizer heater includes standard 2-inch plated brass plumbing fittings to simplify mounting to a holding vessel. This 7³/₄-inch-wide by 16⁷/₈-inch-deep by 12¹/₄-inch-high unit accommodates a 6-foot-long bain marie at most and requires installation with a perforated water baffle, which is sold separately. Incoming water exceeding 3 grains of hardness per gallon (GPG) should be treated and softened before use with this heater. To simplify cleaning as its sump traps and collects soil, it can be plumbed into an open-sight waste drain. Designed for demanding settings, its stainless steel front resists rust and corrosion, while its silver-gray sides feature a durable hammertone finish.

This dual-reservoir Hatco FR-6 bain marie heater's heating element is permanently submerged for optimal heat transfer. Operators can adjust heat from 140 to 190 degrees Fahrenheit with the water temperature control to accommodate changing holding and heating requirements. Because the heated water circulates continuously, it eliminates cold spots that could affect food quality. A correlating indicator light shows water is preheated to the set temperature, and if temperatures exceed the setpoint unexpectedly, its energy cutoff mechanism stops operation to prevent damage.

Product Details

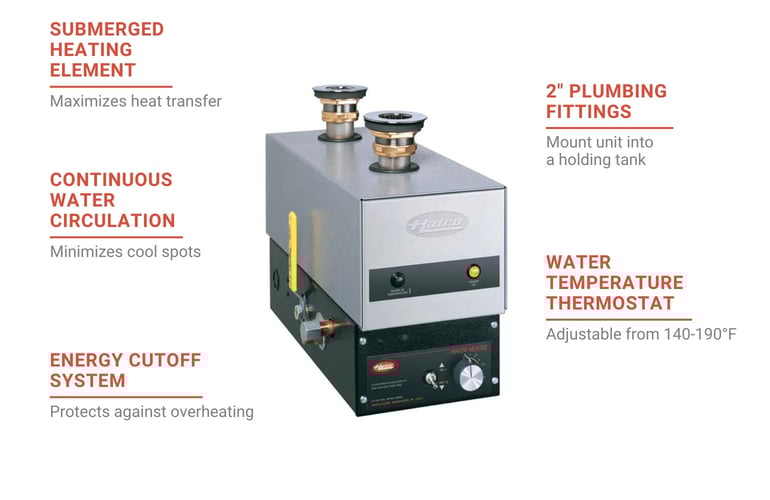

• For heating water in food rethermalizers or bain maries
• Water temperature control range adjustable between 140-190 degrees F
• Dual-reservoir configuration with individual heating and sump compartments
• Permanently submerged heating element
• Continuous water circulation
• Preheated water indicator light
• High-temperature energy cutoff mechanism
• On/off toggle switch with indicator light
• Rust- and corrosion-resistant stainless steel front
• Silver-gray hammertone body
• Black base
• Mounts to holding tank with standard 2-in. plumbing fittings
• Incoming water with more than 3 GPG must be treated and softened before use with this system
• Must be installed with perforated water baffle (sold separately)

Dimensions & Utilities

• 7³/₄ in. W x 16⁷/₈ in. D x 12¹/₄ in. H
• 21.7 A, 6 kW
• 240 V/50/60 Hz/3 ph

Product Features

*Free shipping on Hatco FR-6 within the 48 contiguous states.

From The Manufacturer

Food Rethermalizer/Bain Marie Heater, Electric, stainless steel front, silver gray hammertone body, black base, 6 kW, 240v/60/3ph, NSF, UL, UL EPH Classified, ANSI/NSF 4, CSA, Made in USA

*Image may not depict product color, inclusions or accessories.

1-year Parts & Labor; 5-year Tank Parts

Hatco FR-6 Specifications

Wisconsin-based Hatco has been a pioneer in the food warming and holding market since 1950. The brand also offers light cooking equipment and dishwasher boosters that keep dishwashing machines up to proper sanitizing temperatures, helping operations stay safe and efficient.
