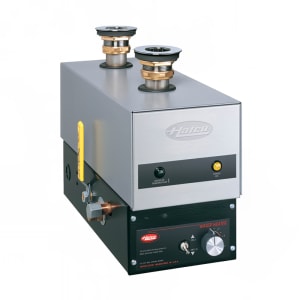

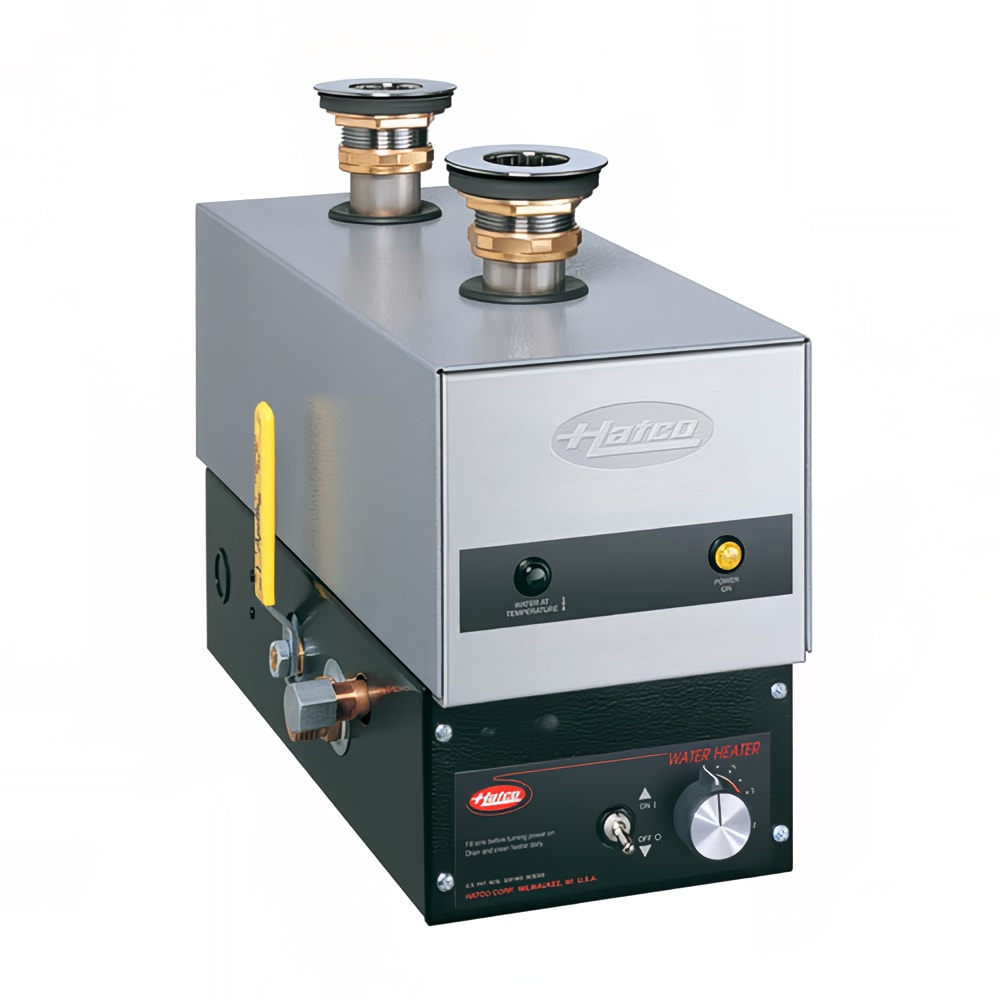

Hatco FR-6 Food Rethermalizer, Bain Marie Heater, 6 KW, 240v/1ph

By supplying continuous hot water to bain maries and food rethermalizers, this Hatco FR-6 water heater ensures safe heating and holding temperatures. This dual-reservoir unit features a permanently submerged heating element for maximal heat transfer with water, and the water temperature controls let employees adjust temperatures from 140 to 190 degrees Fahrenheit to accommodate changing heating and holding requirements. Water circulates continuously to minimize cool spots that could impact results, while its correlating indicator light will illuminate to notify users once water preheats. If temperatures rise above the programmed heating range unexpectedly, the energy cutoff mechanism shuts down the heating system to prevent damage.

To simplify mounting into a holding tank, the Hatco FR-6 bain marie heater includes standard 2-inch plated brass plumbing fittings. This 7³/₄-inch-wide by 16⁷/₈-inch-deep by 12¹/₄-inch-high unit is compatible with bain maries as long as 6 feet, and for proper installation, it requires a perforated water baffle that is sold separately. Incoming water containing more than 3 grains of hardness per gallon must be treated and softened before supplying this heater with water to maximize efficiency. To simplify cleaning, its sump compartment traps and collects soil and can be plumbed to an open-sight waste drain. With its rust- and corrosion-resistant stainless steel front and hammertone silver-gray body, this heater is resilient enough to withstand heavy-duty use in fast-paced kitchens.

Product Details

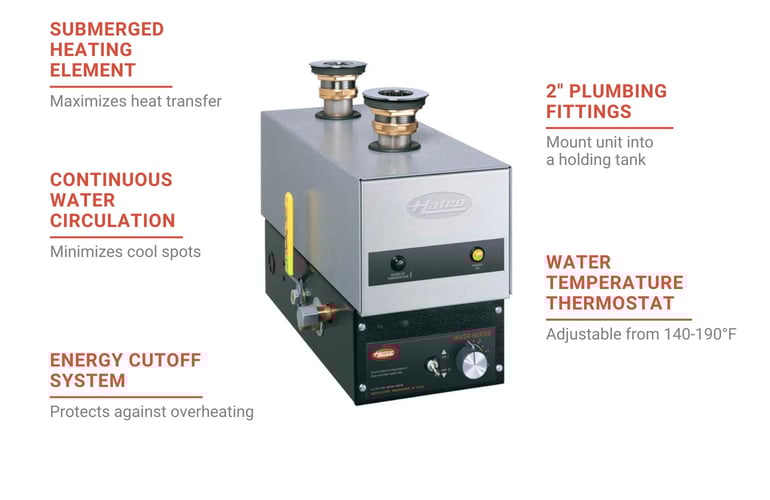

• For heating water in bain maries or food rethermalizers
• Includes standard 2-in. plumbing fittings for mounting into holding tank
• Water temperature control range adjustable between 140-190 degrees F
• Dual-reservoir design (separate sump and heating compartments)
• Permanently submerged heating element
• Continuous water circulation eliminates cool spots
• Preheated water indicator light
• Energy cutoff mechanism
• On/off toggle switch with indicator light
• Rust- and corrosion-resistant stainless steel front
• Silver-gray hammertone body
• Black base
• Incoming water with more than 3 GPG must be treated and softened before use with this system
• Must be installed with perforated water baffle (not included)

Dimensions & Utilities

• 7³/₄ in. W x 16⁷/₈ in. D x 12¹/₄ in. H
• 25 A, 6 kW
• 240 V/50/60 Hz/1 ph

Product Features

*Free shipping on Hatco FR-6 within the 48 contiguous states.

From The Manufacturer

Food Rethermalizer/Bain Marie Heater, Electric, stainless steel front, silver gray hammertone body, black base, 6 kW, 240v/60/1ph, NSF, UL, UL EPH Classified, ANSI/NSF 4, CSA, Made in USA

*Image may not depict product color, inclusions or accessories.

1-year Parts & Labor; 5-year Tank Parts

Hatco FR-6 Specifications

Wisconsin-based Hatco has been a pioneer in the food warming and holding market since 1950. The brand also offers light cooking equipment and dishwasher boosters that keep dishwashing machines up to proper sanitizing temperatures, helping operations stay safe and efficient.

Documents

Spec Sheet

Warranty

Parts Breakdown

Manual

Brochure
