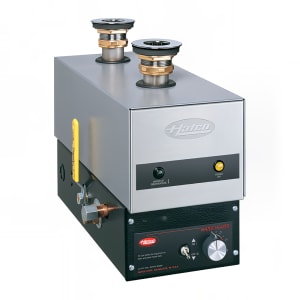

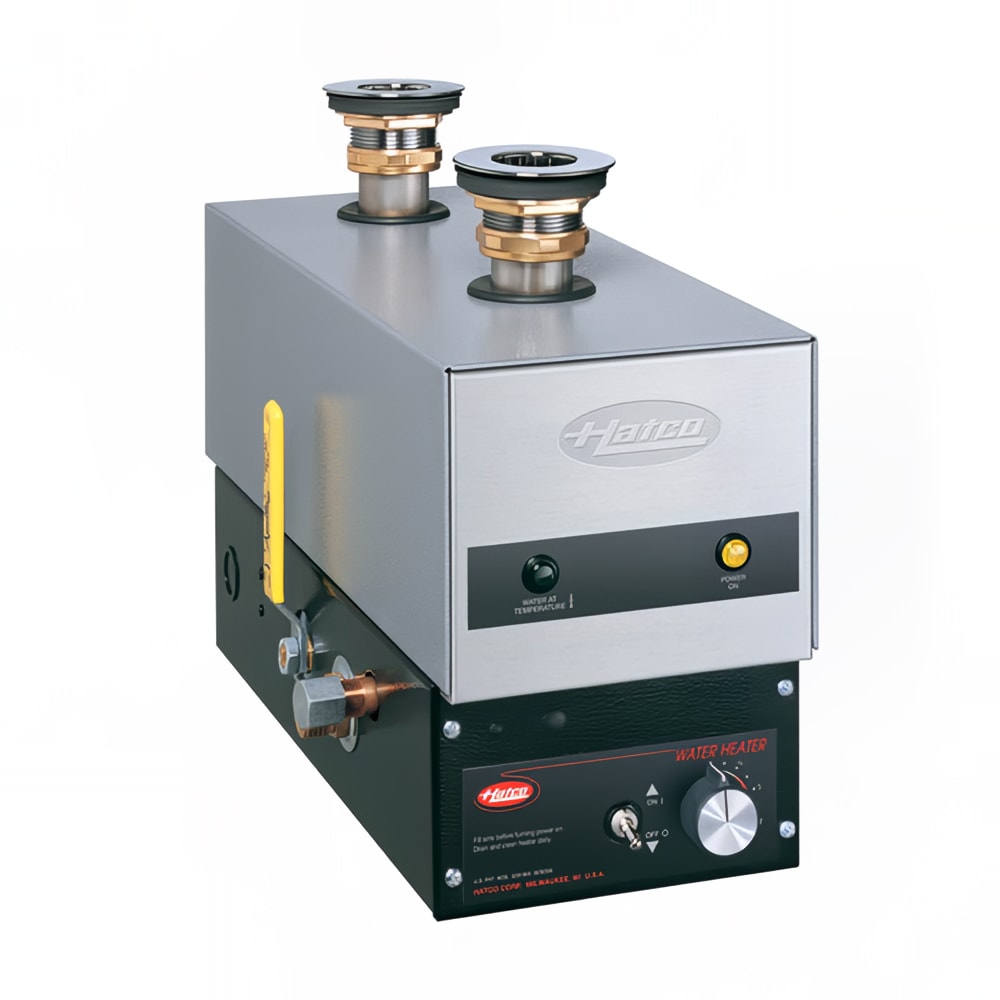

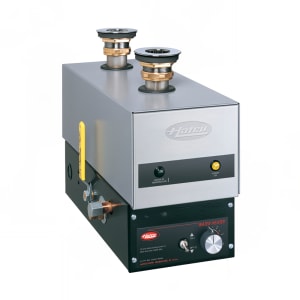

Hatco FR-4B Food Rethermalizer, Bain Marie Heater, 4 1/2 KW, 240v/3ph

By supplying hot, temperature-controlled water to a bain marie or food rethermalizer holding vessel, the Hatco FR-4B food rethermalizer and bain marie heater helps operators comply with NSF Standard 4, which requires food be heated to 165 degrees Fahrenheit within 2 hours. Its water temperature control enables operators to adjust temperatures between 140 and 190 degrees Fahrenheit, while its submerged heating element maximizes heat transfer because it contacts water directly. Water circulates continually to eliminate cold spots, and once water reaches the set temperature, an indicator light glows to notify employees. Its energy cutoff mechanism shuts the heater down if water temperature exceeds the setpoint to prevent unit damage.

This Hatco FR-4B food rethermalizer heater measures 9 inches wide by 17¹/₈ inches deep by 12¹/₄ inches high for use with a bain marie no longer than 6 feet. This unit includes standard 2-inch plated brass plumbing fittings for mounting into a holding tank, and its silver-gray hammertone body and rust- and corrosion-resistant stainless steel front are resilient enough to endure daily use in high-traffic kitchens. Its dual-reservoir design features a sump section separate from the heating compartment to trap and collect soil; this system's drain can be plumbed to an open-sight waste drain to simplify cleaning. For best results and efficient operation, this machine requires installation with a perforated water baffle, which is sold separately, and incoming water containing more than 3 grains of hardness per gallon (GPG) should be softened and treated before use.

Product Details

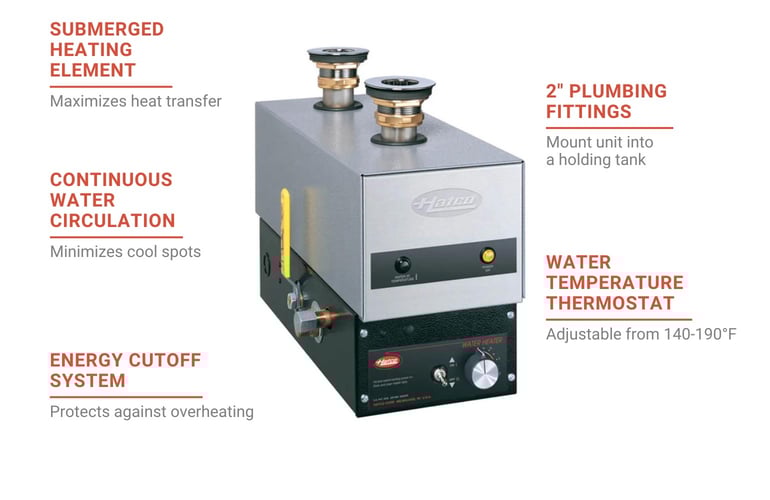

• Compatible with food rethermalizers and bain maries (6-ft.-long maximum)
• Mounts to holding vessel with 2-in. plumbing fittings
• Water temperature control range: 140-190 degrees F
• Dual-reservoir design (1 sump compartment and 1 heating compartment)
• Permanently submerged heating element
• Continuous water circulation
• Indicator light for water temperature and power switch
• Energy cutoff mechanism
• Rust- and corrosion-resistant stainless steel front
• Silver-gray hammertone body
• Black base
• Incoming water with more than 3 GPG must be treated and softened before use with this system
• Must be installed with perforated water baffle (not included)

Dimensions & Utilities

• 9 in. W x 17¹/₈ in. D x 12¹/₄ in. H
• 10.8 A, 4.5 kW
• 240 V/50/60 Hz/3 ph (balanced)

Product Features

*Free shipping on Hatco FR-4B within the 48 contiguous states.

From The Manufacturer

Food Rethermalizer/Bain Marie Heater, Electric, stainless steel front, silver gray hammertone body, black base, 4.5 kW (balanced), 240v/60/3ph, NSF, UL, UL EPH Classified, ANSI/NSF 4, CSA, Made in USA

*Image may not depict product color, inclusions or accessories.

1-year Parts & Labor; 5-year Tank Parts

Hatco FR-4B Specifications

Wisconsin-based Hatco has been a pioneer in the food warming and holding market since 1950. The brand also offers light cooking equipment and dishwasher boosters that keep dishwashing machines up to proper sanitizing temperatures, helping operations stay safe and efficient.
