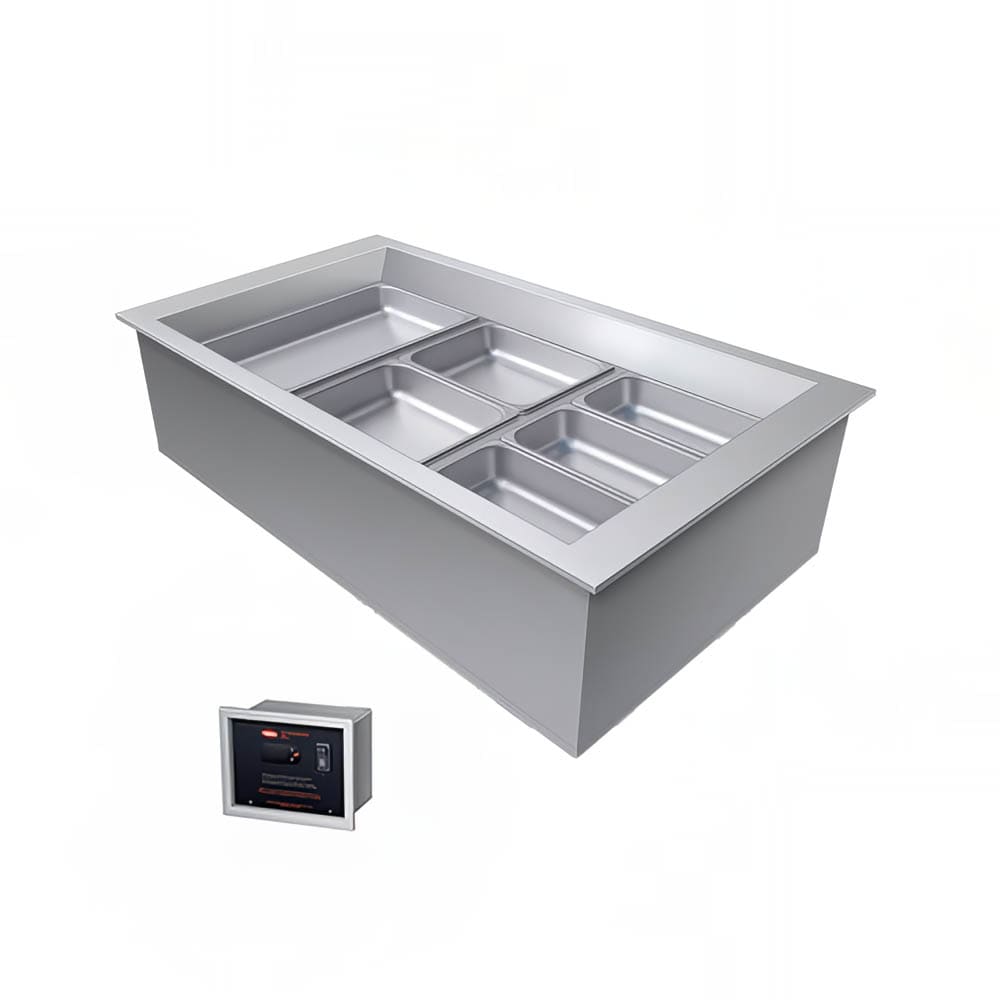

Hatco CWBX-3 45" Drop-In Refrigerator w/ (3) Pan Capacity, Remote , 120v
Retail Price: $6,610.00
$3,635.50 /Each
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Similar Products in Stock Now
Hatco CWBX-3 Description
For holding prechilled foods at safe temperatures on food bars or serving lines, the Hatco CWBX-3 drop-in food well's cold-wall construction uses R-513A refrigerant. This unit's coil placement and angled interior wall let cool air uniformly blanket displayed food pans to eliminate warm spots that could affect product quality. To retain generated temperatures in warm ambient settings, its sides and base are insulated. With the electronic control panel, employees can adjust temperatures as menus change and initiate automatic defrost.
Because the Hatco CWBX-3 remote refrigerated food well doesn't include a condensing unit, it can be incorporated into multi-food-well configurations. Its electronic control features 9-foot-long probe wires that enable installation in a more convenient location. Able to accommodate three full-size food pans, this unit measures 45 inches wide by 27 inches deep by 171⁄20 inches tall. It can be dropped into a cutout as large as 44 inches wide by 26 inches deep to create a streamlined, cohesive appearance on food bars. Made of durable, corrosion-resistant aluminum, this unit matches existing pieces of equipment and other Hatco food wells. Between uses, residual contents can be eliminated through the 1-inch NPT brass drain.
Product Details
- Accommodates 3 full-size food pans
- Top-mount, drop-in configuration
- Minimum cutout dimensions: 4313⁄100 in. W x 2519⁄100 in. D
- Maximum cutout dimensions: 44 in. W x 26 in. D
- Resilient, corrosion-resistant aluminized steel housing
- Stainless steel bezel
- Angled interior wall enhances air circulation
- Environmentally friendly insulation integrated into base and sides
- Cold-wall construction
- R-513A refrigerant
- Automatic defrost
- Electronic control panel can be installed remotely with 9-ft.-long probe wires
- Condenser not included
- 1-in. NPT brass drain
- 930-BTU evaporator load
Dimensions & Utilities
- 45 in. W x 27 in. D x 171⁄20 in. H
- 120 V/60 Hz/1 ph
Product Features
*Free shipping on Hatco CWBX-3 within the 48 contiguous states.
From The Manufacturer
Drop-In Refrigerated Well, (3) pan size, top mount, electronic temperature control, auto defrost, pan support bars for full-size pans, remote refrigeration, WITHOUT condensing unit, control panel and TXV valve (shipped loose), insulated with 1" drain, aluminized steel housing, stainless steel bezel, with control panel, utilizes R-513A refrigerant, UL, NSF7, 120v/60/1ph
*Image may not depict product color, inclusions or accessories.

Hatco CWBX-3 Specifications
Spec Attribute | Spec Value |
---|---|
Manufacturer | Hatco |
Access | Top |
Height (in) | 17 |
Hertz | 60 |
Length (in) | 45 |
Pan Capacity | 3 |
Refrigeration Type | Refrigerated |
Type | Cold Wall |
Voltage | 120 |
Warranty | 1-year Parts; 5-year Compressor Parts |
Width (in) | 27 |
Phase | 1 |
Product | Cold Wells |
Product Type | Food Bars & Buffets |
Includes | Drain |
Weight | 150.00 |
