Hatco CSBFP-36-I 36" Flush Frost Top w/ Built In Compressor, 120v
Retail Price: $7,695.00
$4,232.25 /Each
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Similar Products in Stock Now

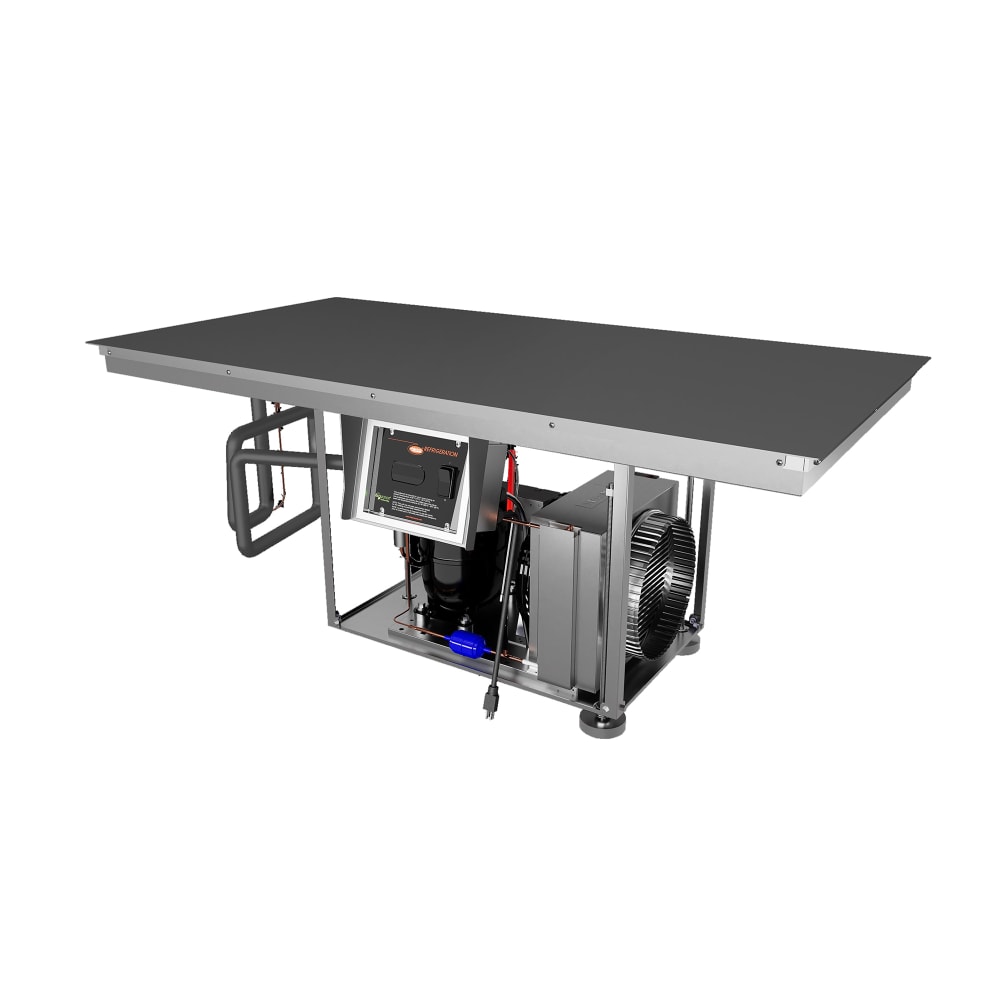

Hatco CSBFP-36-I Description
The Hatco CSBFP-36-I cold shelf is ideal addition to convenience stores, buffets, cafeterias, or ice cream parlors as it features a drop-in-ready design consisting of a flush aluminum cold plate and a separated compressor built into its base. The unit slides into the prepared cutout, is plugged into an outlet via the 6-foot NEMA plug, and can be programmed to output the desired temperature via the electronic controller.
To reduce condensate development and the transfer of cold to surrounding cabinetry, the Hatco CSBFP-36-I frost top’s frame is reinforced with thermal breaks. The condensing system uses R290 hydrocarbon refrigerant, which serves as a safe and efficient alternative to traditional refrigerants. Overall, the cold shelf’s surface measures 36 inches wide by 191/2 inches deep and is accessible from all sides.

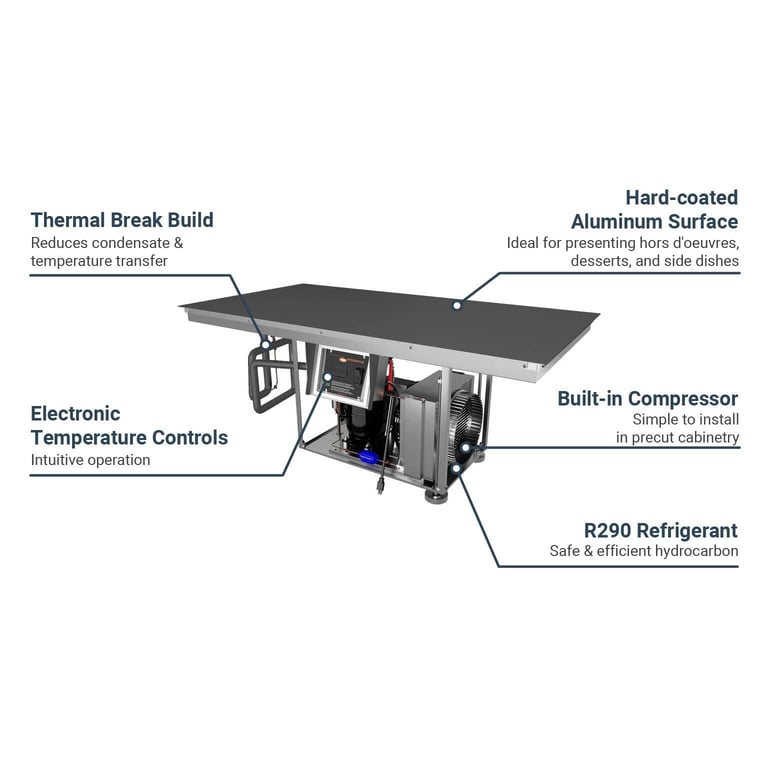

Product Details
- Flush-top design
- Hard-coated aluminum surface
- Electronic temperature control box with on/off switch
- Compressor is built in
- R290 hydrocarbon refrigerant
- Thermal break build
Dimensions & Utilities
- Minimum countertop cutout: 363/5 in. W x 201/8 in. D
- 37 in. W x 201/5 in. D
- Usable shelf space: 36 in. W x 191/2 in. D
- Overall: 371/2 in. W x 21 in. D x 231/8 in. H
- 5.2 A, 1/5 HP
- 120 V/60 Hz/1 ph, 6-ft. cord with NEMA 5-15P plug
Product Features
*Free shipping on Hatco CSBFP-36-I within the 48 contiguous states.
From The Manufacturer
Cold Shelf, built-in flush top, 36"W x 19.5"D, electronic temperature control, condensing unit, aluminum hardcoat, top mount, R-290 Refirgerant, 1/3 HP, cULus, Made in USA
*Image may not depict product color, inclusions or accessories.
Watch a video about this product
Hatco CSBFP-36-I Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hatco |
| Compressor Location | Bottom |
| Depth (in) | 21 |
| Design | Flush |
| Height (in) | 23.13 |
| Hertz | 60 |
| NEMA | 5-15P |
| Phase | 1 |
| Product | Frost Tops |
| Product Type | Commercial Refrigeration |
| Refrigerant | R290 (Hydrocarbon) |
| Series | CSBFP Series |
| Voltage | 120 |
| Warranty | 1-year Parts & Labor |
| Width (in) | 37.5 |
| Weight | 137.00 |
