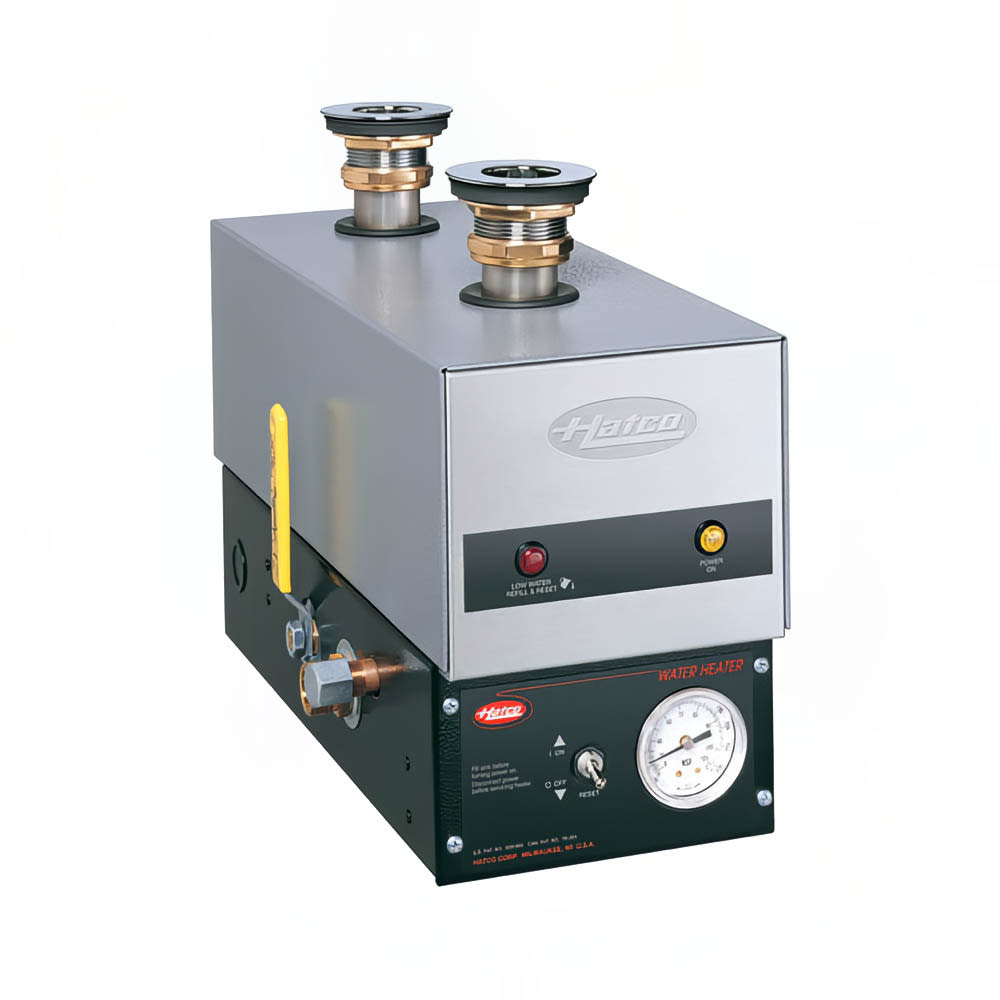

Hatco 3CS-9B Sanitizing Sink Heater, 9 kW, 240v/3ph

Designed for convenient placement beneath a sink, the Hatco 3CS-9B sanitizing sink heater measures 8 inches wide by 17¹³⁄₁₀₀ inches deep by 12⁶³⁄₁₀₀ inches high. For flexibility, it's compatible with pot and pan sinks, compartment sinks, and bar sinks with square areas between 21 and 25 inches. When connected to a 140-degree-Fahrenheit incoming water source, this heater provides a continuous supply of 180-degree-Fahrenheit water for sanitizing wares.

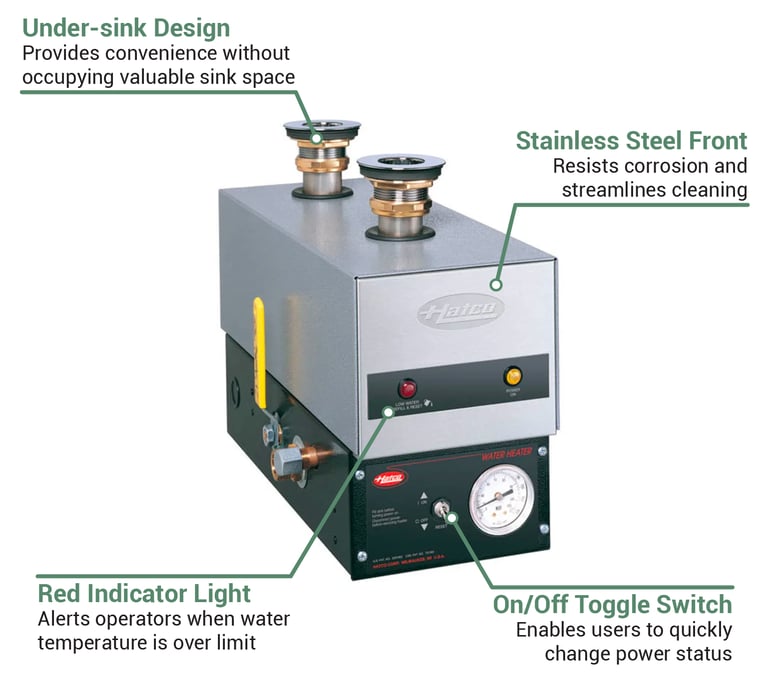

The Hatco 3CS-9B sink heater is equipped with a unique tubular system that safeguards the heating elements from damage caused by hard water. For simplicity, this unit has an on/off toggle switch, a yellow power indicator light, and a built-in side drain. Its red over-temp indicator light and emergency cut-off mechanism prevent employees from using water that exceeds safe temperatures. To streamline cleaning and provide durability, it features a stainless steel front with a powder-coated silver hammer-tone body.

Product Details

• Under-sink model
• For square sink areas between 21 and 25 in.
• Compatible with 3- and 4-compartment sinks, pot and pan sinks, and bar sinks
• Stainless steel front with powder-coated silver hammertone body
• On/off toggle switch with yellow power light
• Red over-temp indicator light
• Built-in side drain
• Energy cut-off mechanism protects against excessive water temperatures
• Maintains a continuous supply of 180-degree-F sanitizing water after a 30-minute preheating period
• Requires 140-degree-F incoming water supply
• Incoming water with more than 3 GPG must be treated and softened before supplying water to this unit

Dimensions & Utilities

• 8 in. W x 17¹³⁄₁₀₀ in. D x 12⁶³⁄₁₀₀ in. H
• 21.7 A, 9 kW
• 240 V/60 Hz/3 ph (balanced)

Product Features

*Free shipping on Hatco 3CS-9B within the 48 contiguous states.

From The Manufacturer

Sink Heater, electric, undersink design, electric operation, stainless steel front, for over 21" square sink area, 9.0 kW (balanced), 240v/60/3ph, NSF, cULus, Made in USA

*Image may not depict product color, inclusions or accessories.

1-year Parts & Labor; 5-year Tank Parts

Hatco 3CS-9B Specifications

Wisconsin-based Hatco has been a pioneer in the food warming and holding market since 1950. The brand also offers light cooking equipment and dishwasher boosters that keep dishwashing machines up to proper sanitizing temperatures, helping operations stay safe and efficient.
