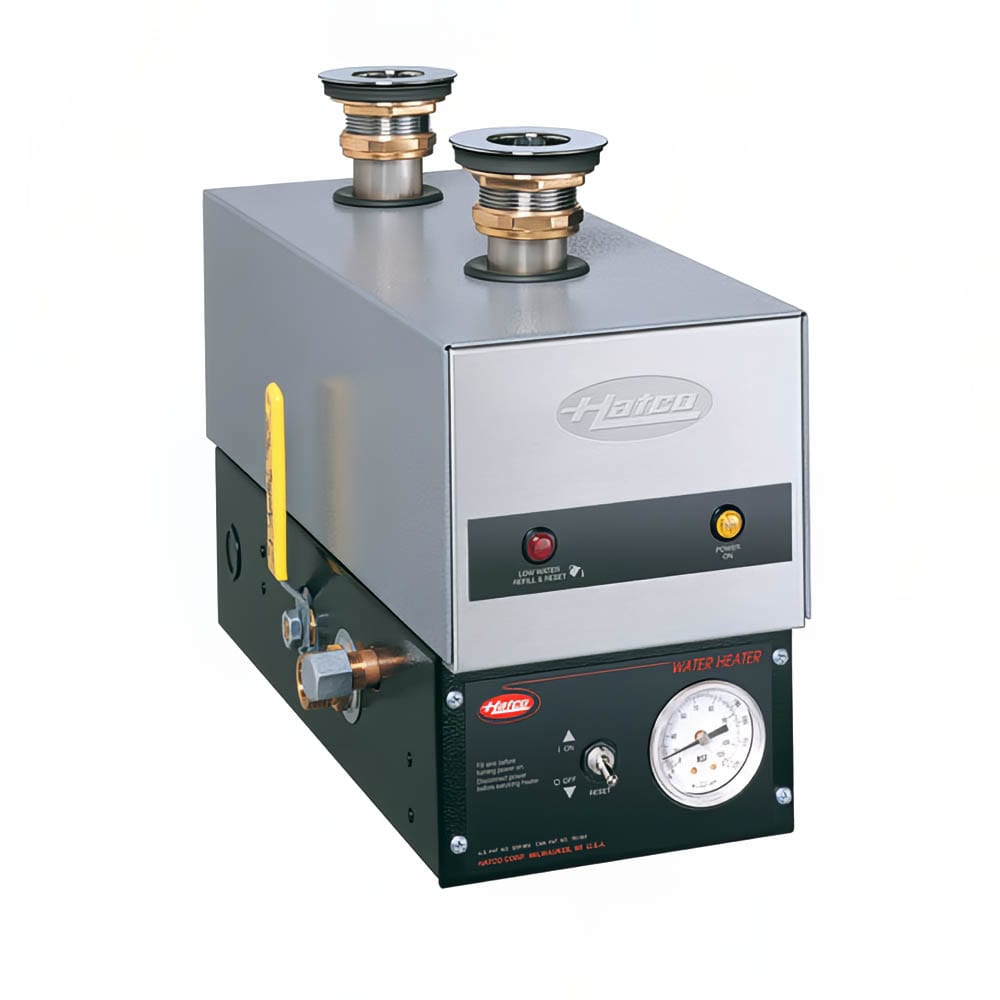

Hatco 3CS-9B Sanitizing Sink Heater, 9 kW, 208v/3ph
IN STOCK: Ships in 1 Business Day
Less Than 5 in Stock, Order Soon!
Retail Price: $3,451.00
$1,898.05 /Each
Selected Voltage: 208V, 1 Phase
| 208V, 1 Phase |
| 240V, 1 Phase |
Hatco 3CS-9B Description
When connected to an incoming water source, the Hatco 3CS-9B sink heater provides a continuous supply of 180-degree-Fahrenheit water for sanitizing dishes. It can be used in compartment sinks, pot and pan sinks, and bar sinks with square areas between 21 and 25 inches. Overall, this unit measures 8 inches wide by 1713⁄100 inches deep by 1263⁄100 inches high.

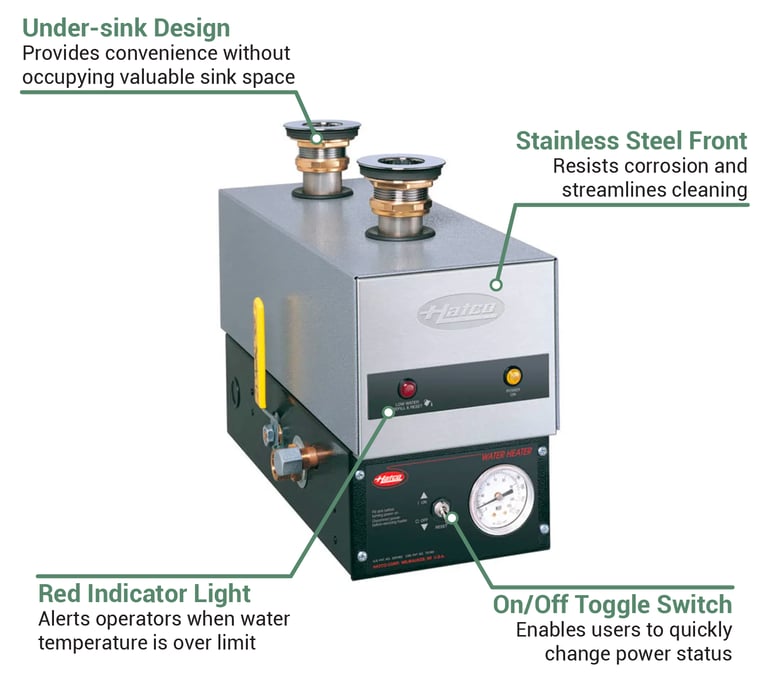

The Hatco 3CS-9B sanitizing sink heater features a unique tubular system that shields the heating elements from damage caused by hard water. To provide additional durability and streamline cleaning, it is built with a stainless steel front and a powder-coated silver hammer-tone body. For convenience, it's equipped with a built-in side drain and an on/off toggle switch with a yellow light to indicate the power status. To protect against water temperatures that are too high, this unit has a red over-temp indicator light and an energy cut-off mechanism.
Product Details
- For placement below a 3- or 4-compartment sink, pot and pan sink, or bar sink
- For square sink areas between 21 and 25 in.
- Stainless steel front with powder-coated silver hammer-tone body
- Built-in side drain
- Energy cut-off mechanism protects against excessive water temperatures
- On/off toggle switch with yellow power light
- Red over-temp indicator light
- Maintains a continuous supply of 180-degree-F sanitizing water after pre-heating for 30-minutes
- Requires 140-degree-F incoming water supply
- Incoming water with more than 3 GPG must be treated and softened before supplying water to this unit
Dimensions & Utilities
- 8 in. W x 1713⁄100 in. D x 1263⁄100 in. H
- 25 A, 9 kW
- 208 V/60 Hz/3 ph (balanced)
Product Features
*Free shipping on Hatco 3CS-9B within the 48 contiguous states.
From The Manufacturer
Sink Heater, electric, undersink design, electric operation, stainless steel front, for over 21" square sink area, 9.0 kW (balanced), 208v/60/3ph, NSF, cULus, Made in USA
*Image may not depict product color, inclusions or accessories.
Watch a video about this product
Hatco 3CS-9B Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hatco |
| Fits Sink Size | 21in-25in square |
| Hertz | 60 |
| Phase | 3 |
| Product | Sanitizing Sink Heaters |
| Product Type | Commercial Sinks |
| Special Features | Low Water Cut Off |
| Type | Undersink Install |
| Voltage | 208 |
| Warranty | 1-year Parts & Labor; 5-year Tank Parts |
| Weight | 33.00 |
