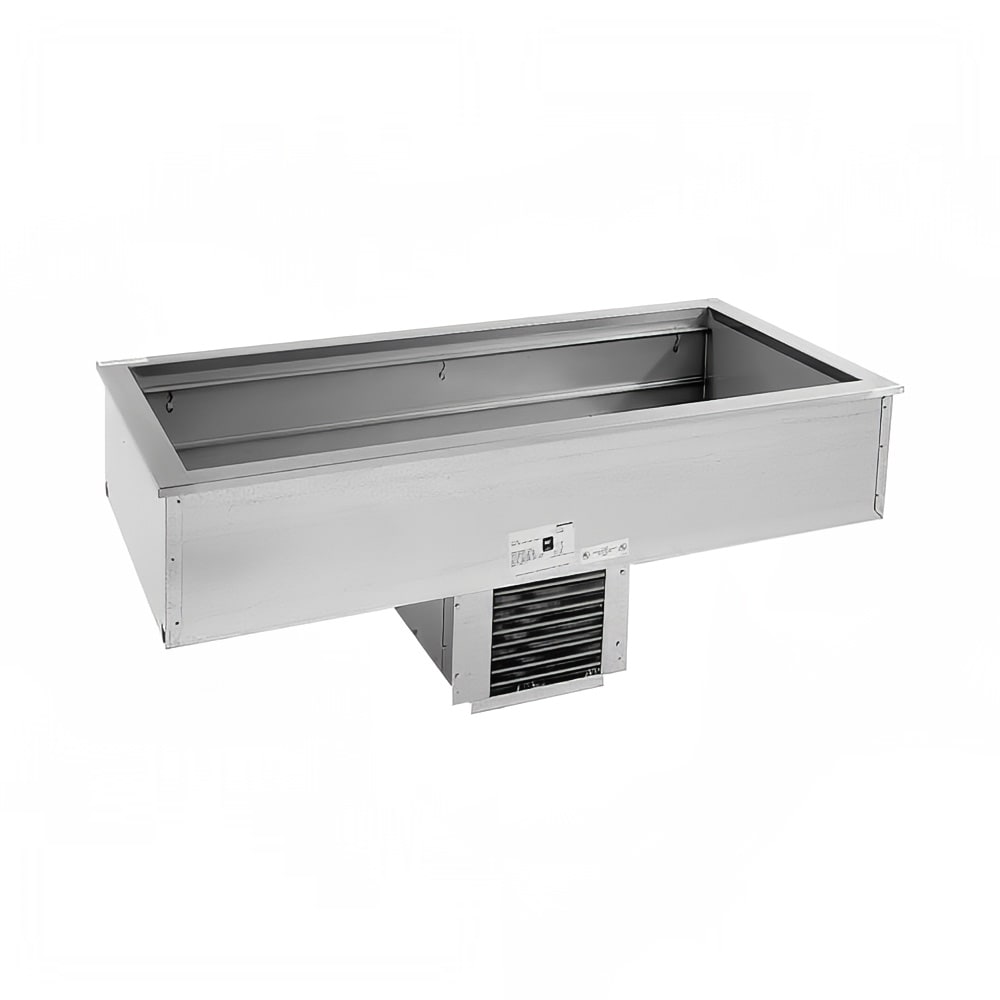

Delfield N8168NBP 58" Drop-In Refrigerator w/ (3) Pan Capacity - Cold Wall Cooled, 115v
Typically ships in 6 - 8 weeks
$5,728.00 /Each
Login or call for details!
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Delfield N8168NBP Description
The Delfield N8168NBP cold food unit uses a stainless steel louver for installation in a 17-inch by 66 1⁄2-inch countertop cutout. It accommodates three 4-inch-deep or 6-inch-deep food pans, and overall, it measures 67 1⁄2 inches wide by 18 inches deep by 21 13⁄16 inches high. Refrigeration lines built into the interior use R290 refrigerant. The refrigeration system is self-contained to streamline installation; electronic controls let the unit be adjusted from 33 to 41 degrees Fahrenheit.
Pans placed in the Delfield N8168NBP drop-in refrigerator are separated using adapter bars. To remove moisture and water easily, the well is built with a 1-inch drain. It's insulated with high-density polyurethane that ensures product remains cool until it's served—great for holding food in a buffet line or at a hotel. Durable for repeated use, this unit is made of galvanized steel with a stainless steel liner and top.
- For use with (3) 4-in. or 6-in.-deep pans
- Holding temperature range: 33-41 degrees F
- Electronic temperature controls
- R290 refrigerant
- High-density polyurethane insulation
- Sides wrapped with refrigeration lines
- Stainless steel louver
- Non-marring press fit-top gasket
- Includes a 1-in. drain
- Equipped with adapter bars
- Top and liner made of stainless steel
- Galvanized steel exterior
- Self-contained condenser
- Cutout size: 17 in. x 66 1⁄2 in.
- 522-BTU heat-transfer capacity
- 67 1⁄2 in. W x 18 in. D x 21 13⁄16 in. H
- 2 A, 1⁄6 HP
- 115 V/60 Hz/1 ph, 8-ft. cord with a NEMA 5-15P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on Delfield N8168NBP within the 48 contiguous states.
From The Manufacturer
Narrow Drop-In Cold Food Unit, refrigerated, 67-1/2" W, 18" D, 3-pan size, 4" or 6" deep pans, 1" drain, insulated pan, stainless steel inner liner & top, galvanized steel outer liner, self-contained refrigeration, R290 Hydrocarbon refrigerant, 1/6 HP, (66-1/2" x 17" cutout required), cUL, UL, NSF
Delfield N8168NBP Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Delfield |
| Access | Top |
| Also Known As | N8168NB |
| Height (in) | 21.87 |
| Hertz | 60 |
| Includes | Drain |
| Length (in) | 58 |
| Pan Capacity | 3 |
| Phase | 1 |
| Product | Cold Wells |
| Product Type | Food Bars & Buffets |
| Refrigeration Type | Refrigerated |
| Type | Cold Wall |
| Voltage | 115 |
| Warranty | 1-year Parts; 90-day Labor |
| Width (in) | 18 |
| Weight | 240.00 |
