Delfield GAHPT1-GH 1/2 Height Insulated Pass Thru Mobile Heated Cabinet w/ (3) Shelves, 208-240v/1ph
$12,622.00 /Each
Login or call for details!
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Similar Products in Stock Now
Alto-Shaam 1200-UP-QS
Halo Heat® Full Height Insulated Mobile Heated Cabinet w/ (16) Pan Capacity, 120v

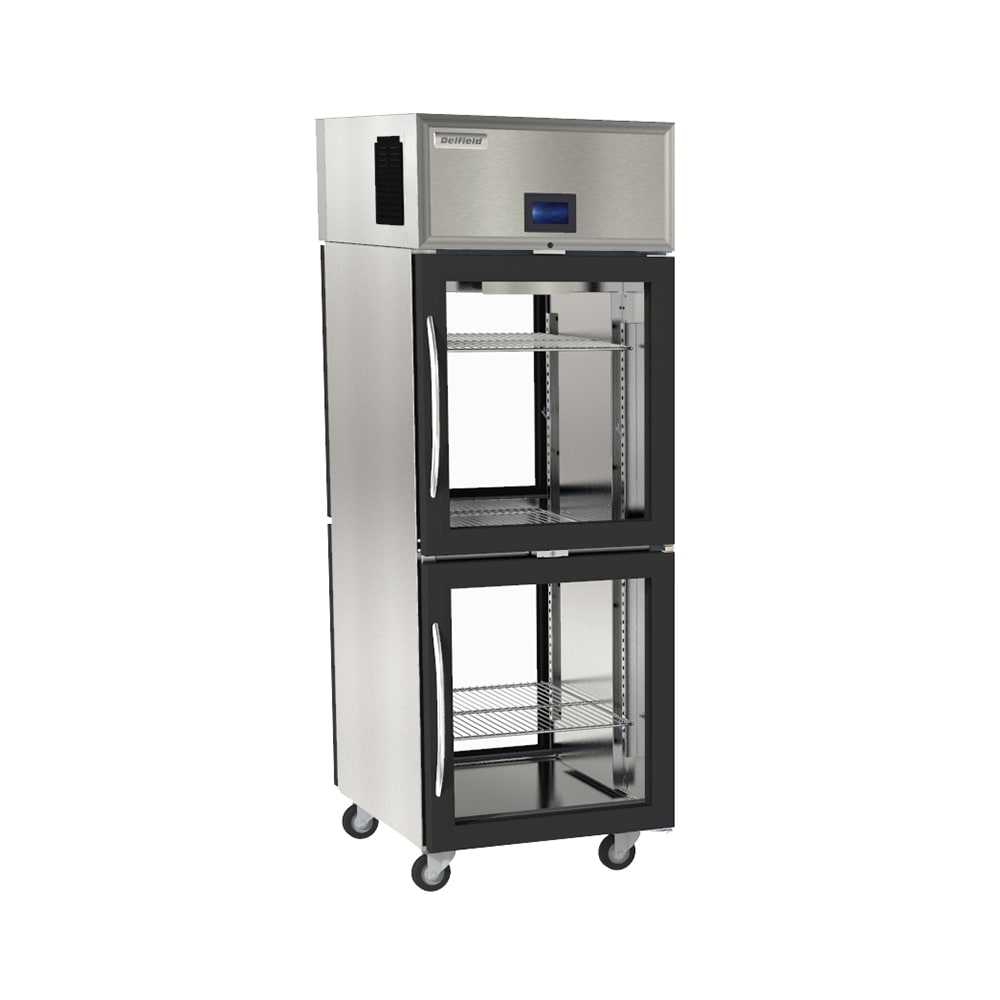

Delfield GAHPT1-GH Description
The Delfield GAHPT1-GH Specification Line® heated cabinet is designed to maintain precise temperatures between 120 and 200 degrees Fahrenheit. Its heating elements are located behind vertical ducts, ensuring optimal airflow and energy efficiency. Fully insulated with high-density, foamed-in-place polyurethane, this pass-thru, one-section unit retains heat effectively while operating efficiently. The fan motor is mounted outside the heated compartment to protect internal components and enhance durability.
The 4 3/10-inch easyTouch® screen on the Delfield GAHPT1-GH mobile heated cabinet allows for precise temperature control and remote monitoring, offering advanced functionality for busy foodservice environments. A digital exterior temperature display includes high/low visual alarms for added convenience. Mounted on 5-inch locking casters shipped loose for field installation, this unit is equipped with a 10-foot cord and NEMA 6-20P plug for streamlined setup. The cabinet includes four half-height hinged glass doors with locks, three adjustable chrome wire shelves for accommodating full-size sheet pans, and a removable side louver. This unit includes energy-efficient, removable door gaskets, field-rehingeable doors, and a 40-watt incandescent light for interior illumination.
Product Details
- Specification Line series
- 23-cu.-ft. capacity
- Pass-thru, one-section design
- Stainless steel exterior and interior
- 4 half-height hinged glass doors with smart hinge
- Field-rehingeable doors
- 3 adjustable chrome wire shelves
- Accommodates full-size sheet pans
- 4 3/10-in. easyTouch screen
- Digital exterior temperature display
- High/low temperature visual alarms
- Energy-efficient removable door gaskets
- Removable side louver
- 40-watt incandescent light
- Stainless steel pilaster with shelf clips
- (4) 5-in. locking casters (shipped loose for field installation)
Dimensions & Utilities
- Overall dimensions: 27 1/2 in. W x 32 1/2 in. D x 79 3/8 in. H
- 6.0 A
- 208-240 V/60 Hz/1 ph, 10-ft. cord with NEMA 6-20P plug
*Free shipping on Delfield GAHPT1-GH within the 48 contiguous states.
From The Manufacturer
Specification Line® Heated Cabinet, Pass-Thru, one-section, 23.0 cubic feet capacity, (4) half-height hinged glass doors (locking), (3) adjustable chrome wire shelves, 4.3" easyTouch® screen temperature display/control with remote monitoring, incandescent interior lighting, stainless steel exterior front, sides & interior, (4) 5" locking casters, 208-240v/60/1-ph, 6.0 amps, NEMA 6-20P, NSF, cULus, ENERGY STAR®
*Image may not depict product color, inclusions or accessories.
Delfield GAHPT1-GH Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Delfield |
| Application | Heat Only |
| Construction | Stainless Steel |
| Control Location | Top |
| Controls | Digital |
| Cubic Feet | 23 |
| Depth (in) | 32.5 |
| Door Design | Full |
| Door Type | Glass |
| Height (in) | 79.38 |
| Hertz | 60 |
| Hinge Configuration | Right |
| Load Type | Pass Thru |
| NEMA | 6-20P |
| No. of Doors | 4 |
| Pan Capacity | 3 |
| Phase | 1 |
| Product | Heated Cabinets |
| Product Type | Food Warming Equipment |
| Sections | 1 |
| Series | Specification Line® |
| Size | 1/2 Height |
| Slide Type | Adjustable |
| Type | Insulated |
| Voltage | 208/240 |
| Warranty | 3-year Parts & Labor |
| Width (in) | 27.5 |
| Weight | 361.00 |
