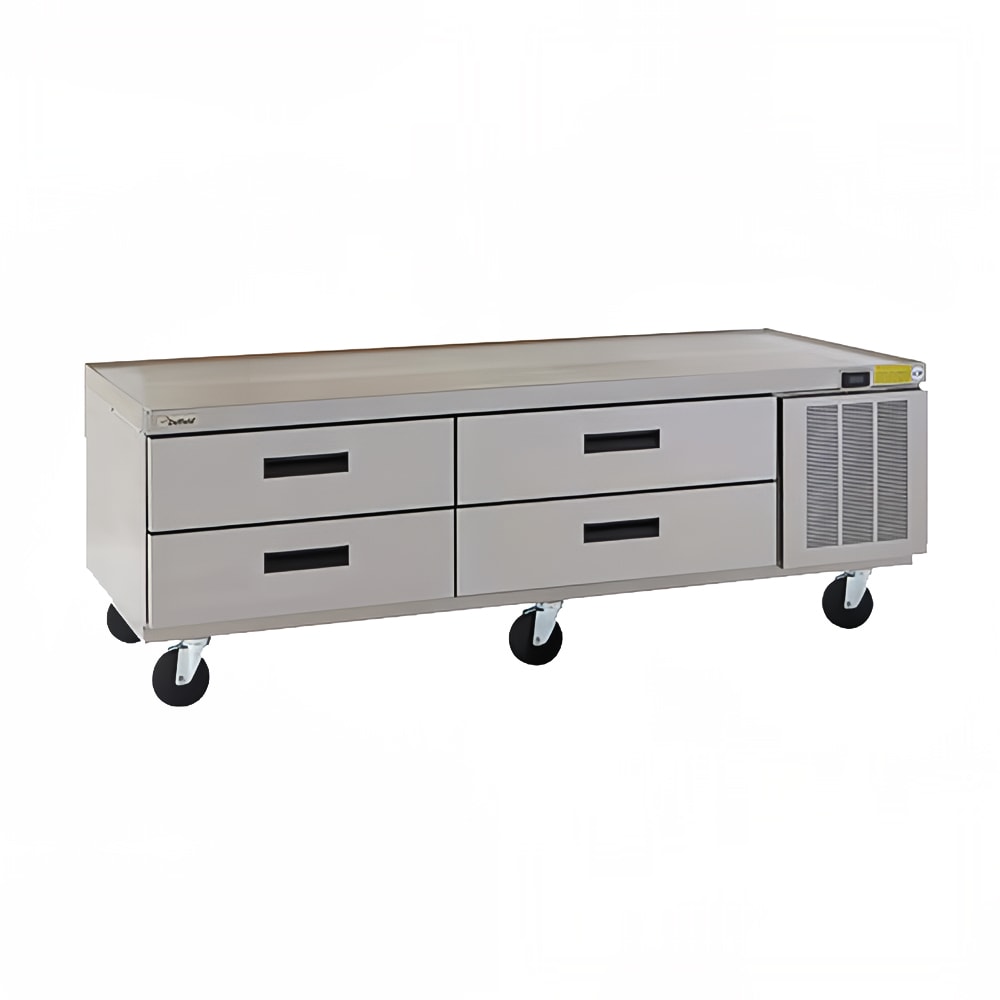

Delfield F2973CP 73 1/4" Chef Base w/ (4) Drawers - 115v

To help improve kitchen workflow, this Delfield F2973CP chef base features a heavy-duty stainless steel top with a full-perimeter marine edge and four refrigerated drawers beneath the countertop space. This creates a worktop that can hold equipment while ingredients can be chilled in the refrigerated section below. Between the top's exterior and interior, a 2-inch high-density polyurethane foam is built in to maintain original worktop temperatures, while the refrigerated base also has a 2-inch high-density polyurethan foam to retain cool temperatures. Each of the four drawers holds 12-inch by 20-inch by 4-inch hotel pans, and they're built onto track rollers that don't require greasing. To prevent temperature loss, the drawers' tracks have a stay-shut feature that secures the gaskets in place.

The Delfield F2973CP refrigerated equipment stand accommodates various ingredients with its temperature range of 36 to 40 degrees Fahrenheit. In between each drawer, coated mullion-style blowers direct air into each section for uniform temperature distribution. Users can adjust temperatures with the electronic temperature control, which is located in the top nosing for easy access. Its thermostat is also protected with a splash-resistant enclosure to endure bustling kitchen environments. Overall, this unit measures 73¹/₄ inches wide by 31¹⁵/₁₆ inches deep by 24 inches high, providing a low-profile structure that accommodates various pieces of equipment.

Product Details

• 2 sections
• (2) 27-in. drawers and (2) 32-in. drawers
• Holds (8) 12-in. x 20-in. x 4-in. pans (not included)
• Stainless steel top and drawer front
• Full-perimeter marine edge on top
• 2-in. high-density polyurethane foam between exterior and interior of refrigerated base and top
• Delrin drawer track rollers don't require greasing
• Stay-shut drawer feature
• ABS plastic drawer interiors
• Side-mounted refrigeration system with electric condensate evaporator
• Uses R290 hydrocarbon refrigerant
• Temperature holding range: 36-40 degrees F
• Electronic temperature control
• 4-in. casters

Product Features

Dimensions & Utilities

• 73¹/₄ in. W x 31¹⁵/₁₆ in. D x 24 in. H
• 4.5 A, 1.1 kW, ¹⁄₄ HP
• 115 V/60 Hz/1 ph, 8-ft. cord with a NEMA 5-15P plug

*Free shipping on Delfield F2973CP within the 48 contiguous states.

From The Manufacturer

Refrigerated Low-Profile Equipment Stand, 73-1/4"W x 31-47/50"D x 24"H, two-section, (4) drawers (pans not included), stainless steel top & drawer fronts, front non-spill edge, ABS interior sides, 4" casters, side-mounted refrigeration system with electric condensate evaporator, R290 Hydrocarbon refrigerant, 1/4 hp, cUL, UL, NSF

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Compressor

Delfield F2973CP Specifications
