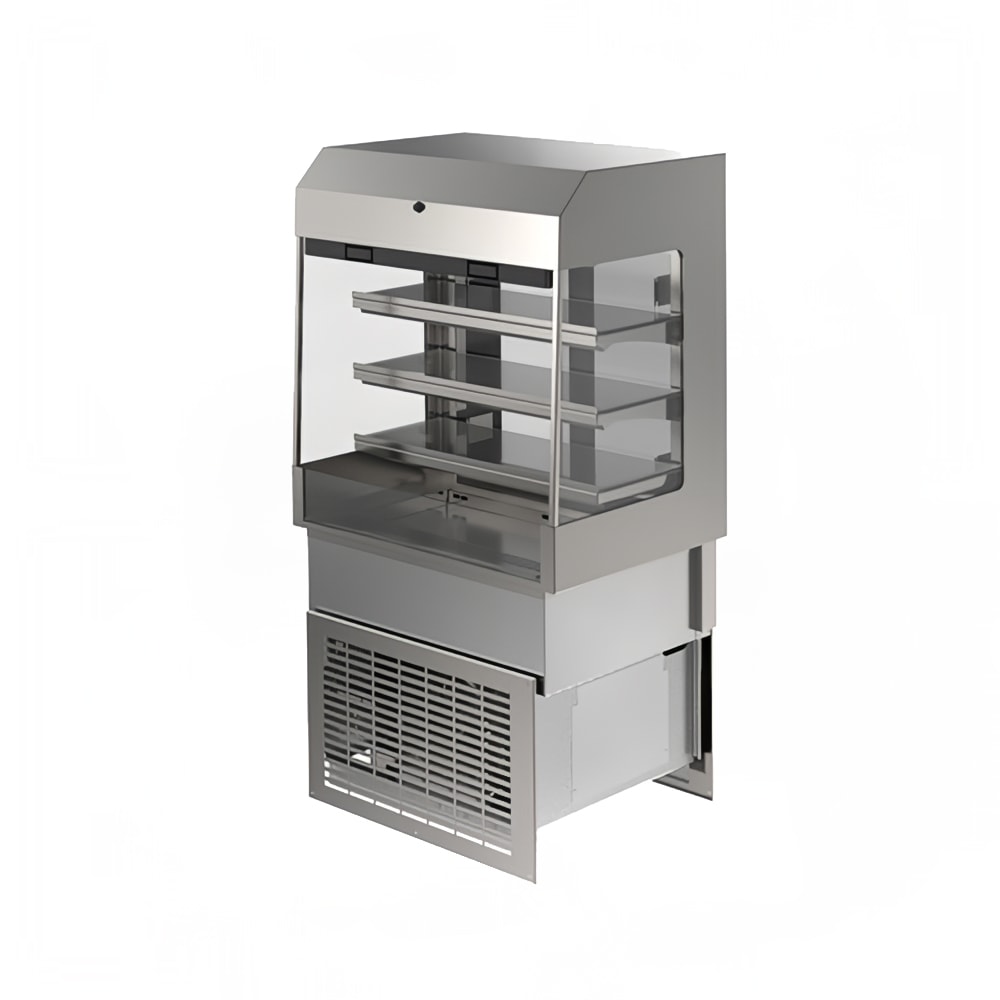

Delfield ASM-36P 36 1/4" Drop In Refrigerated Display Case - (4) Levels
Typically ships in 6 - 8 weeks
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Similar Products in Stock Now
Delfield ASM-36P Description
To maintain temperatures between 36 and 40 degrees Fahrenheit, the Delfield ASM-36P air curtain drop-in refrigerator uses a bottom-mounted refrigeration system that's self-contained to simplify installation. It operates with R290 refrigerant—a type of hydrocarbon that's more environmentally friendly than traditional alternatives. It's equipped with three tempered glass shelves on which users can merchandise product; these shelves can be adjusted in 1-inch increments to accommodate different needs. The interior is equipped with LED lighting to improve visibility.
This Delfield ASM-36P refrigerated merchandiser's exterior sides are made of 18-gauge stainless steel—a sturdy, corrosion-resistant metal that's simple to clean. To streamline cleaning and maintenance further, it features a slide-out condensing unit. It's designed for drop-in installation in a countertop, measuring 361/4 inches wide by 26 inches deep by 6417/20 inches high. To keep merchandise secure after hours, it features a front-locking security cover.
Product Details
- For drop-in installation (requires 351/8-in. x 251/2-in. cutout)
- (3) 1⁄4-in. glass shelves can be adjusted in 1-in. increments
- Insulated, recessed pan bottom shelf accommodates bottles
- Product illuminated by 4 LED lights
- Display section has insulated, 7⁄8-in. dual-pane glass panels
- Sliding rear doors
- Front-locking security/night cover
- Exterior sides made of 18-ga. stainless steel
- Bottom-mounted, self-contained refrigeration system
- Slide-out condensing unit simplifies maintenance
- 2 louvers included
- Temperature holding range: 36-40 degrees F
- Uses eco-friendly R290 hydrocarbon refrigerant
Product Features
Dimensions & Utilities
- 361/4 in. W x 26 in. D x 6417/20 in. H
- 3.7 A, 1⁄3 HP
- 115/208-240 V/60 Hz/1 ph, 9-ft. cord with NEMA 14-20P plug
*Free shipping on Delfield ASM-36P within the 48 contiguous states.
From The Manufacturer
Air Screen Refrigerated Merchandiser, drop-in, 36-1/4" L, (4) LED lights, bottom shelf, (3) 1/4" adjustable glass shelves, includes (2) louvers, sliding rear doors, security night cover, self-contained bottom mounted refrigeration, R290a, 1/3 HP, 115/208-240v/60/1, 3.7 amps, NEMA 14-20P, (35.13" x 25.50" cutout required), cUL, UL, NSF
*Image may not depict product color, inclusions or accessories.
Delfield ASM-36P Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Delfield |
| Access | Full Service |
| Color | Silver |
| Design | Straight |
| Door Type | Sliding |
| Height (in) | 63.48 |
| Hertz | 60 |
| Number of Levels | 4 |
| Phase | 1 |
| Product | Display Cases |
| Product Type | Commercial Refrigeration |
| Refrigeration Type | Refrigerated |
| Type | Drop-in |
| Voltage | 115 |
| Warranty | 1-year Parts & Labor |
| Width (in) | 36.25 |
| Weight | 350.00 |
