Delfield 8186-EFP 86" Drop-In Refrigerator w/ (6) Pan Capacity - Cold Wall Cooled, 115v
Typically ships in 2 - 3 weeks
$8,727.00 /Each
Login or call for details!
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Similar Products in Stock Now

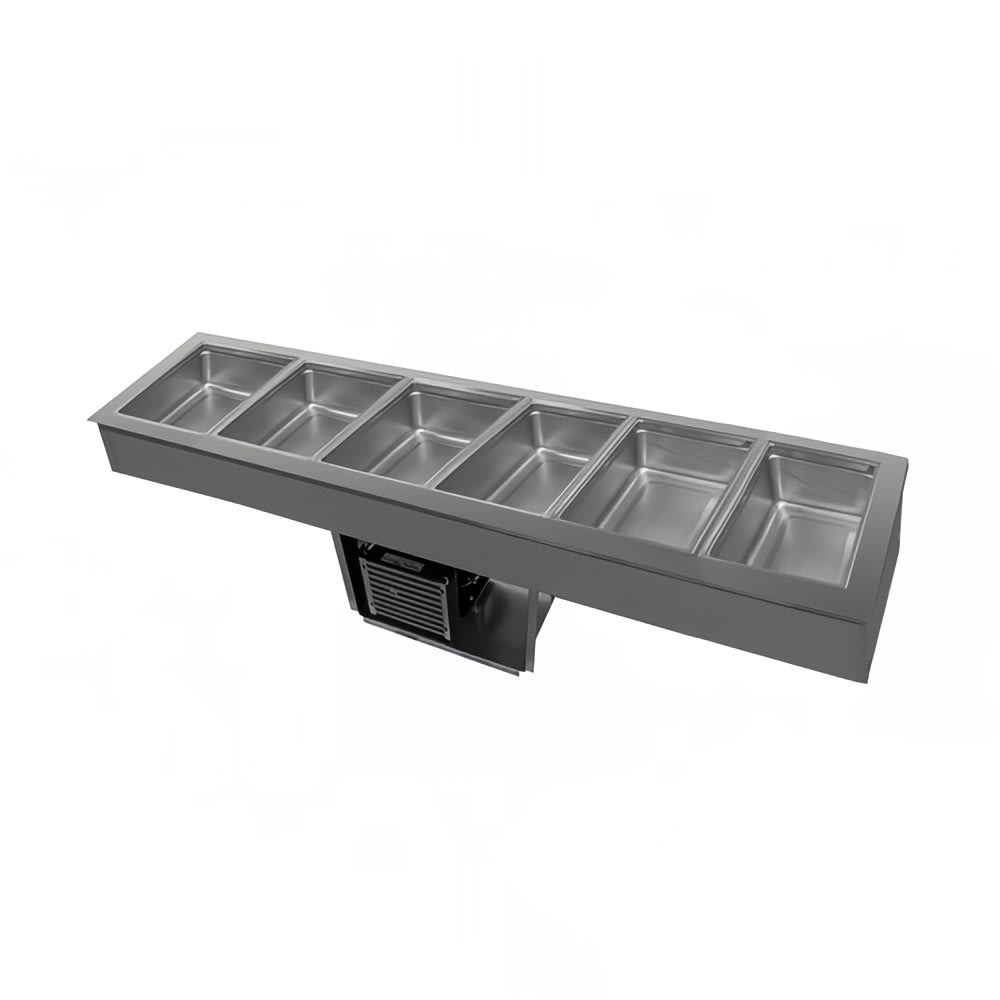

Delfield 8186-EFP Description
Designed for drop-in countertop installation, the Delfield 8186-EFP LiquiTec® refrigerator measures 86 inches wide by 26 inches deep by 246/25 inches high. It operates with a LiquiTec self-contained eutectic fluid refrigeration system, and its high-density polyurethane insulation preserves cold temperatures. It accommodates six pans with a depth of 4 or 6 inches. Using a precise electronic control system, operators can adjust the unit's temperature between 33 and 41 degrees Fahrenheit.
The Delfield 8186-EFP drop-in refrigerator's top, inner liner, and louver are made of stainless steel—a durable, rust-resistant metal that's simple to clean. It features a galvanized steel housing for additional strength. To minimize the unit's environmental impact, it operates with R290 hydrocarbon refrigerant. For installation, an 85-inch by 25-inch counter cutout is required.
Product Details
- 12-in. x 20-in. stainless steel wells accommodate 6 pans measuring 4 or 6 in. deep
- Drop-in model for installation flush with countertop
- 85-in. x 25-in. counter cutout required
- Durable stainless steel top, inner liner, and louver
- Electronic temperature control
- Temperature holding range: 33-41 degrees F
- High-density polyurethane insulation in sides and bottom to preserve ideal temperatures
- LiquiTec self-contained eutectic fluid refrigeration system
- Exterior housing made of galvanized steel
- 1⁄2-in. stainless steel drains with manifold
- R290 hydrocarbon refrigerant is environmentally friendly
Product Features
Dimensions & Utilities
- 86 in. W x 26 in. D x 246/25 in. H
- 4.8 A, 1⁄3 HP
- 115 V/60 Hz/1 ph, 8-ft. cord with NEMA 5-15P plug
*Free shipping on Delfield 8186-EFP within the 48 contiguous states.
From The Manufacturer
LiquiTec® Drop-In Cool Food Unit, 6-pan size, 4" or 6" deep pans flush with counter top, insulated pan, stainless steel inner liner & top, galvanized outer liner, self-contained Eutectic fluid refrigerated system, R290 Hydrocarbon refrigerant, 1/3 hp, (85" x 25" cutout required), cUL, UL, NSF
*Image may not depict product color, inclusions or accessories.
Delfield 8186-EFP Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Delfield |
| Access | Top |
| Also Known As | 8186-EF |
| Height (in) | 23.25 |
| Hertz | 60 |
| Length (in) | 86 |
| Pan Capacity | 6 |
| Phase | 1 |
| Product | Cold Wells |
| Product Type | Food Bars & Buffets |
| Refrigeration Type | Refrigerated |
| Series | LiquiTec® |
| Type | Cold Wall |
| Voltage | 115 |
| Warranty | 1-year Parts & Labor |
| Width (in) | 26 |
| Weight | 306.00 |
Important Prop 65 information for California residents.
- Delfield 8186EF
