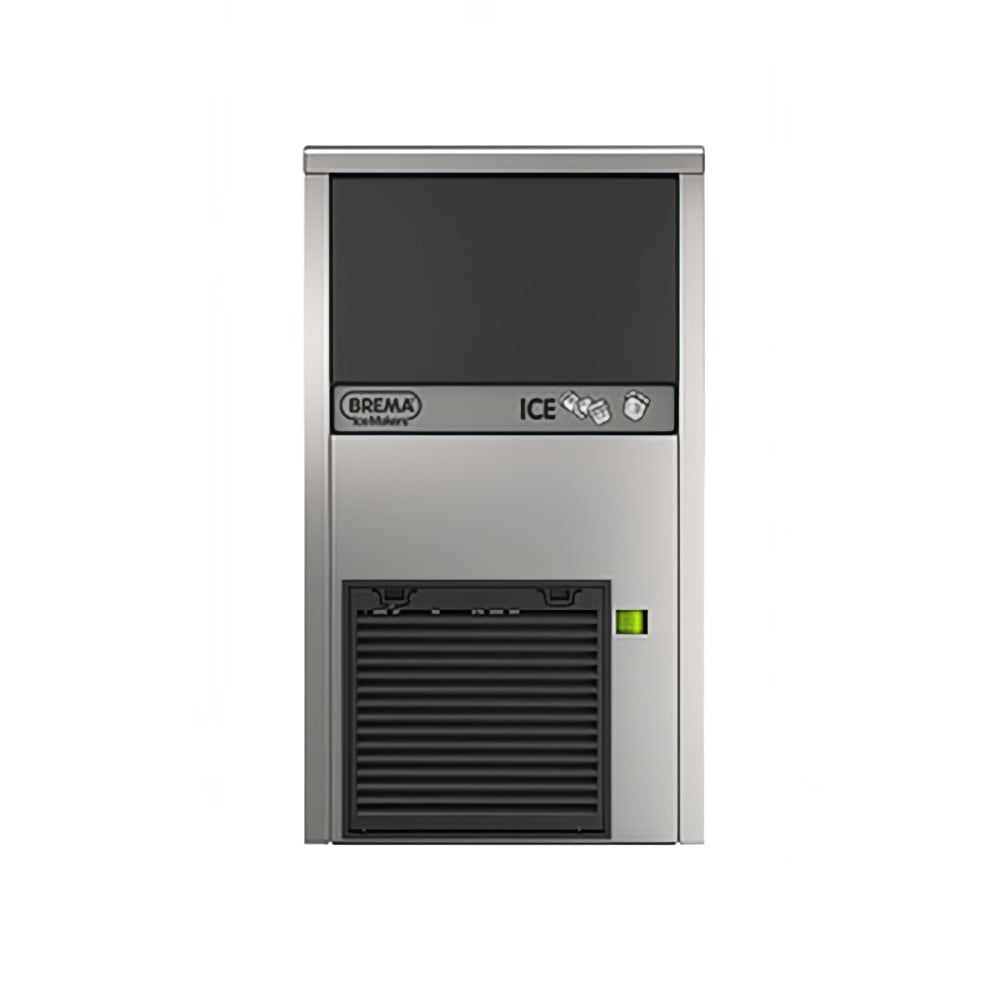

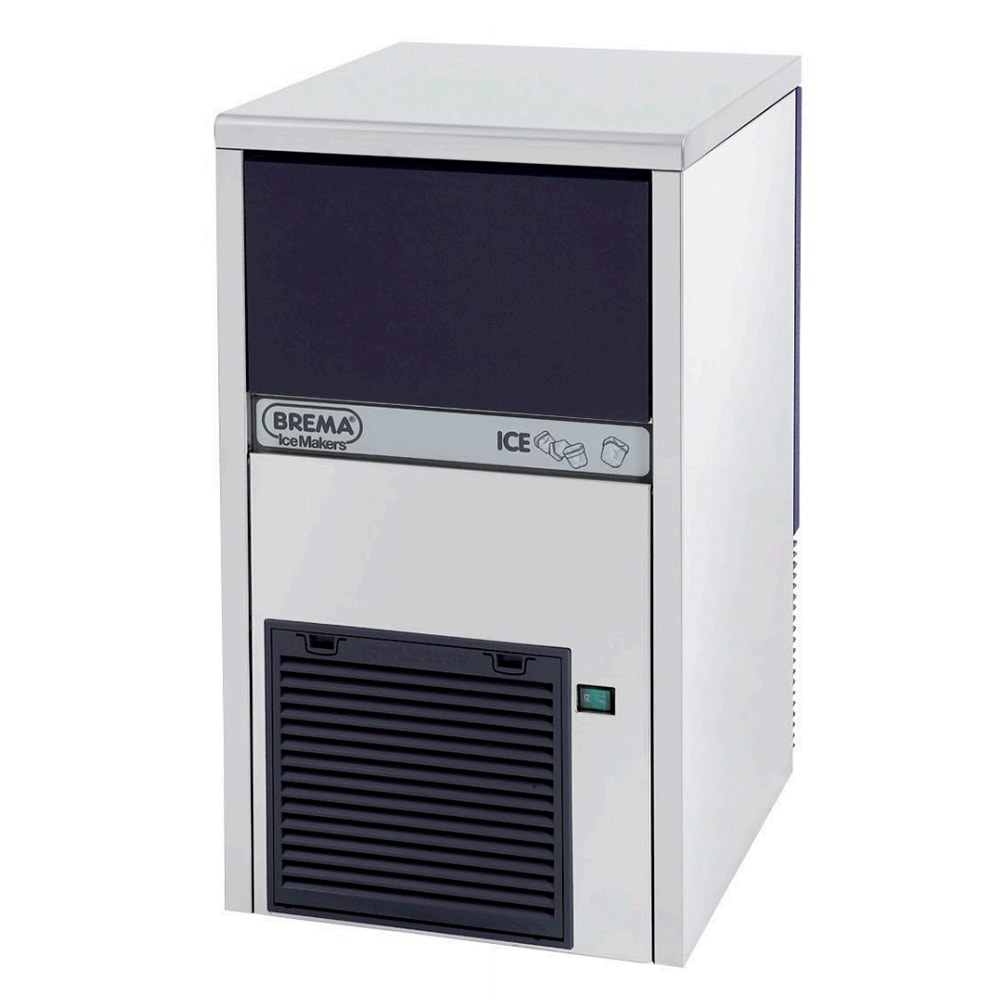

Eurodib CB249A 15 3/8"W Brema® Top Hat Undercounter Ice Machine - 55 lbs/day, Air Cooled

Depending on surrounding conditions, the Eurodib CB249A Brema® undercounter ice maker can produce 62 pounds of top-hat ice daily, which is perfect for upscale bars and restaurants. Instead of sheets of ice, individual hat-shaped cubes fall off the evaporator, maximizing production and saving space in the bin. Since the evaporator is made of stainless steel, little mineral buildup is left behind, increasing pump and compressor operation to ensure ice cubes are clear and compact.

The Eurodib CB249A undercounter ice maker takes in air from the front, so it does not require clearance on the back or sides and can be installed beside other equipment. Made of stainless steel, the interior and exterior are heavy duty and rust resistant. This unit has an air-cooled condenser, so it does not require as much water for operation as liquid-cooled condensers. Its air filter can be removed for cleaning or replacement. For safety, the unit automatically shuts down when overheating.

Product Details

• 62-lb. daily ice production capacity
• 20-lb. ice storage capacity

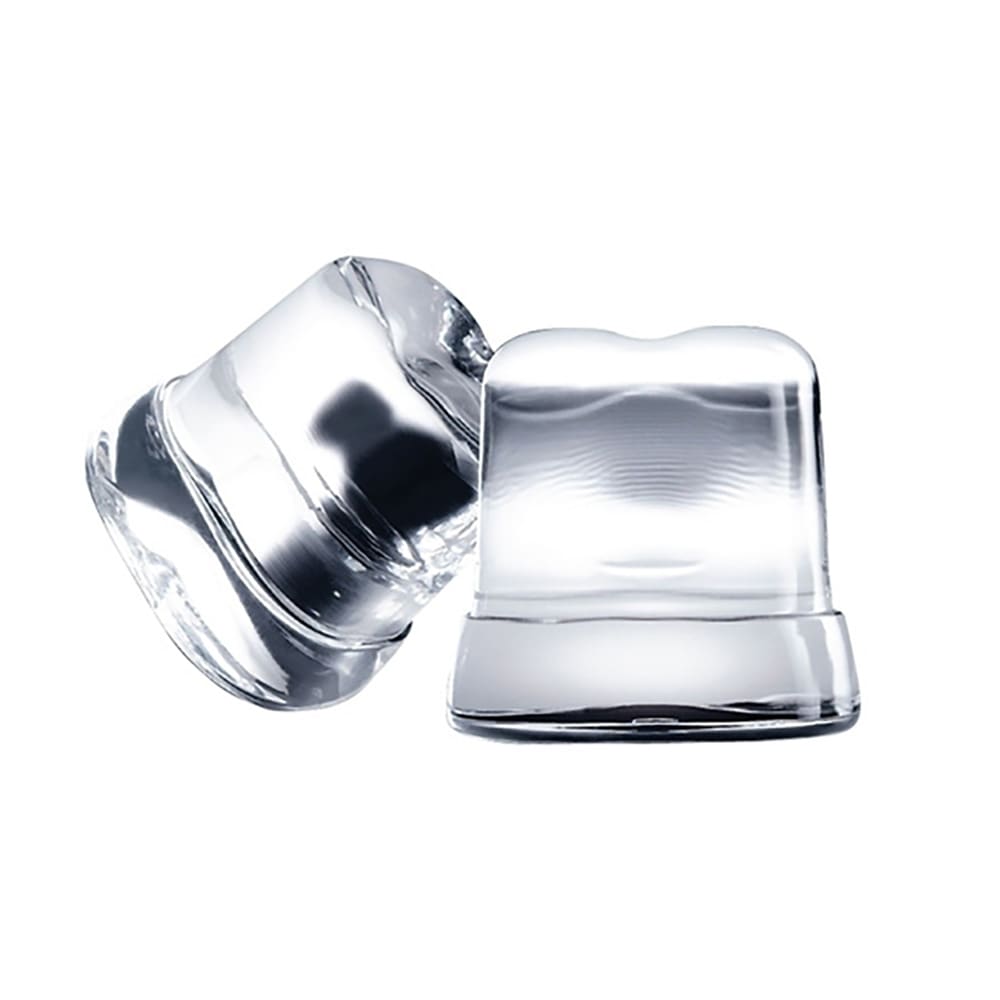

• Top-hat ice size: 1¹/₅ in. x 1¹/₅ in. x 1 in.
• Adjustable ice production cycle thermostat
• Produces individual cubes to maximize production and bin storage space
• Fixed, non-rotating evaporator provides durability
• Stainless steel evaporator reduces mineral buildup to improve the compressor and pump operation, ensuring ice cubes are clear and compact
• Stainless steel interior and exterior resist rust and provide strength
• Sensor detects high heat, shutting down electrical components to prevent fires

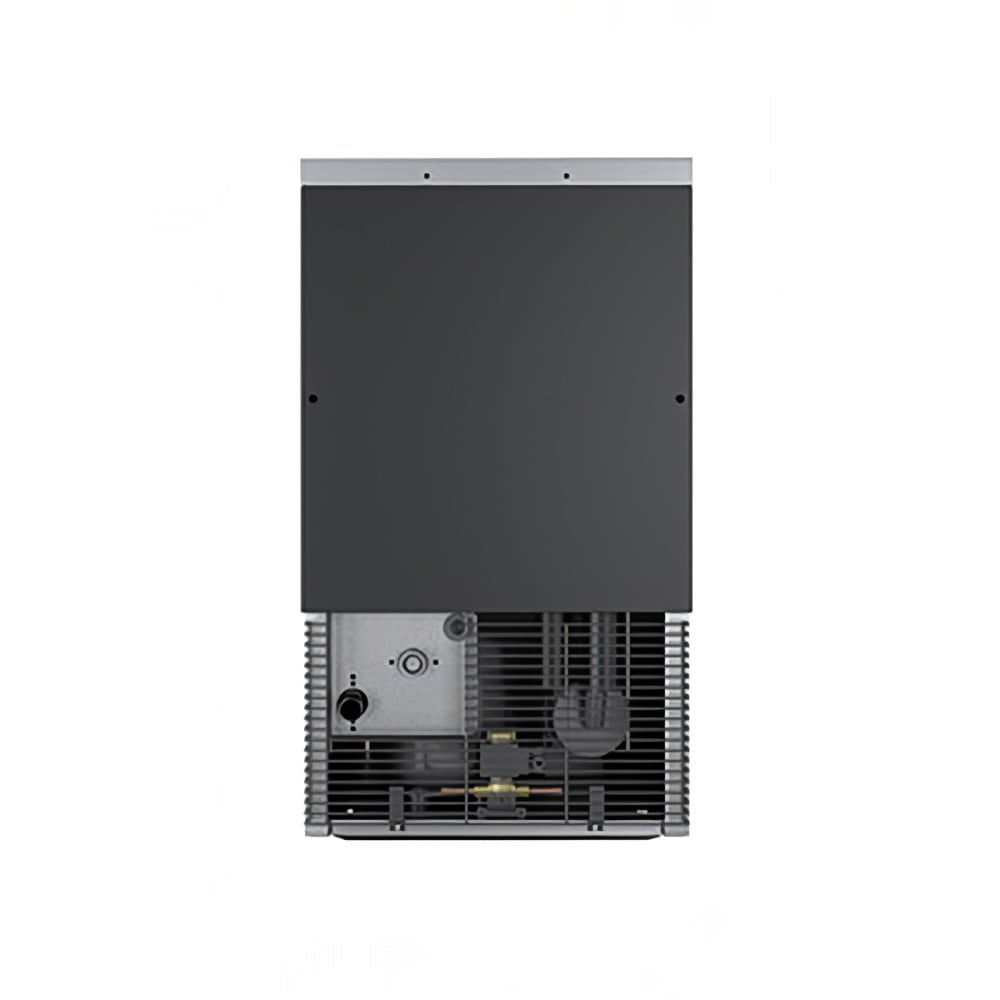

• Air-cooled condensing unit
• Air filter is removable for cleaning and replacing
• Uses R404A refrigerant
• Requires a floor drain

Product Features

Dimensions & Utilities

• 15³/₁₀ in. W x 18 in. D x 27¹/₅ in. H
• 3 A, 350 W
• 120 V/60 Hz/1 ph

From The Manufacturer

Brema® Undercounter Ice Maker with Bin, cube style, air-cooled, self-contained refrigeration, 13g cube size (1.2"H x 1"W x 1.2"D), 55 lbs production/24 hour, 20 lbs storage capacity, electro-mechanical operation, (2) thermostats, timer, fire sensor, stainless steel interior & exterior, R404A, 115v/60/1-ph, 350 watts, 3.0 amps, NEMA 5-15P NSF, CE, cETLus

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Cord Attached

This product includes a cord and plug

3-year Parts & Labor; 5-year Compressor

Eurodib CB249A Specifications

Documents

Spec Sheet

Warranty

Certifications
