Berner DTU03-2026EA 26" Heated Drive Thru Air Curtain - (1) Speed, Aluminum, 120v
Typically ships in 4 - 8 Business Days
$1,062.75 /Each
Login or add to cart for the price
Non Returnable Item
Berner DTU03-2026EA Description

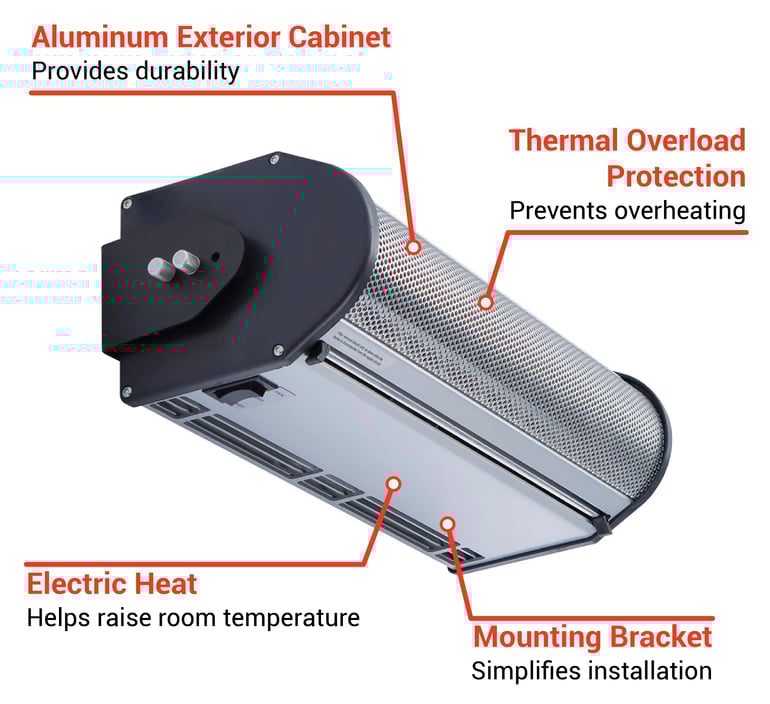

The Berner DTU03-2026EA drive-thru air curtain is powered by electric heat and equipped with thermal overload protection to prevent overheating. Installing it above a 3-foot-high drive-thru window increases the temperature by 31 degrees Fahrenheit and blows away cold air, insects, or contaminants. It mounts inside the window and includes brackets to streamline installation.
Durable for high-volume use, the Berner DTU03-2026EA heated air curtain's exterior cabinet is made of powder-coated, extruded aluminum. Its heat switch and fan are factory installed; the unit operates with two one-speed motors. When it must be cleaned, the filter can be removed without tools. This air curtain unit measures 281/8 inches wide by 73/4 inches deep by 7 inches high.
Product Details
- Electric heated
- Increases temperature by 31 degrees F
- Intended for environmental separation and insect control
- Fits 3-ft.-high drive-thru windows
- Filter can be removed using no tools
- Interior mounting brackets
- Exterior cabinet made of powder-coated, extruded aluminum
- Factory-installed heat switch and fan
- (2) 1-speed motors
- Thermal overload protection prevents overheating
- Open helical element
Dimensions & Utilities
- Nozzle: 241/2 in. W
- Overall: 281/8 in. W x 73/4 in. D x 7 in. H
- 16.40 A, 1.70 kW, 0.13 HP
- 120 V/60 Hz/1 ph, 6-ft. cord with plug
Product Features
*Free shipping on Berner DTU03-2026EA within the 48 contiguous states.
From The Manufacturer
Drive-Thru Air Curtain, 26" long, electric heated, (1) 1/12 hp & (1) 1/20 hp motor, environmental separation & insect control for drive-thru windows up to 3' high, "No Tool" filter removal, "Mount Anywhere" bracket system, powder coated extruded aluminum exterior cabinet, interior mounting, 2kW, UL, cULus, MADE IN USA
*Image may not depict product color, inclusions or accessories.
Berner DTU03-2026EA Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Berner |
| Color | Silver |
| Hertz | 60 |
| HP | 0.5 |
| Length (in) | 26 |
| NEMA | 5-20P |
| No. of Speeds | 1 |
| Number of Motors | 2 |
| Phase | 1 |
| Product | Air Curtains |
| Product Type | Facility Maintenance |
| Temperature | Heated |
| Type | Heated |
| Voltage | 120 |
| Warranty | 2-year Limited Against Defects in Material & Workmanship |
| Weight | 19.00 |
