Berner CLC08-1072E 72" Heated Air Curtain - (2) Speeds, White, 208v/1ph
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Berner CLC08-1072E Description

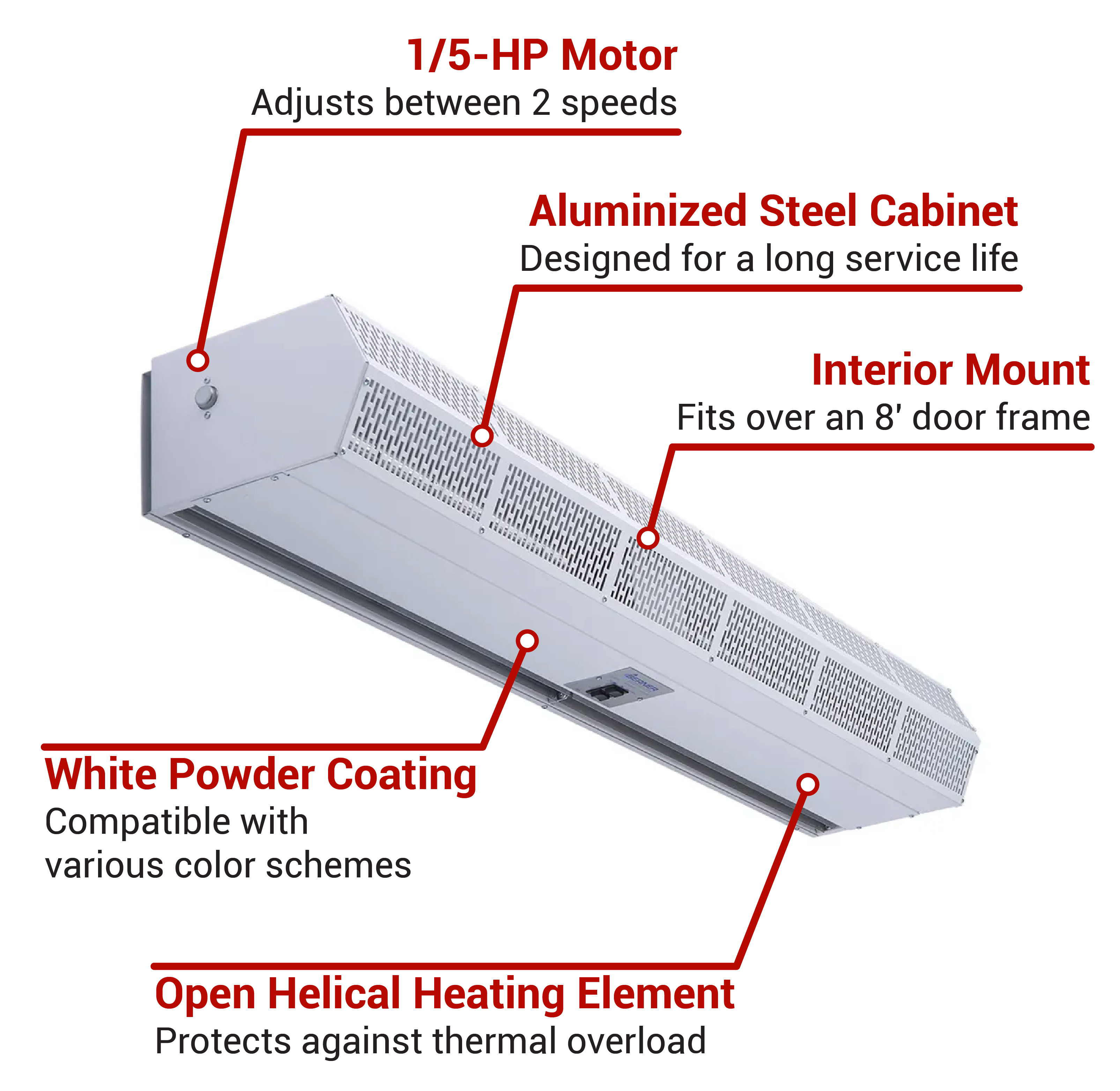

Raising temperatures as much as 31 degrees Fahrenheit, the Berner CLC08-1072E Commercial Series air curtain creates a heated stream of air beneath a door, defending against gusts of wind and open doors that could decrease room temperatures. This air curtain is heated with an open helical heating element that protects against thermal overload and sports a galvanized steel construction that withstands high-volume use. Its 1⁄5-horsepower motor has two adjustable fan speeds. To endure a long service life, its durable aluminized steel cabinet has a corrosion-resistant white powder coating that matches common color schemes. Measuring 7213/16 inches wide by 131/2 inches deep by 81/2 inches high, it's designed to be mounted on top of a maximum 8-foot-high doorframe.
Product Details
- Part of the Commercial series
- Fits atop an 8-ft.-tall door
- Heated system
- Open helical element with galvanized steel structure
- Thermal overload protection
- 1 fan motor with 2 adjustable speeds
- Factory-installed switches for heat and fan speed
- Aluminized steel cabinet with white powder-coated exterior
- Low profile
- Raises temperature by 31 degrees F
Dimensions & Utilities
- 7213/16 in. W x 131/2 in. D x 81/2 in. H
- 15 kW, 1⁄5 HP
- 208 V/60 Hz/1 ph
Product Features
*Free shipping on Berner CLC08-1072E within the 48 contiguous states.
From The Manufacturer
Commercial Series Low Profile Air Curtain, 72"L, electric heat, (1) 1/5 hp 2-speed motor, for doors up to 8' high, baked-on electrostatic white powder coated aluminized steel cabinet, interior mounting only, 15 kW, cULus, Made in USA
*Image may not depict product color, inclusions or accessories.
Berner CLC08-1072E Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Berner |
| Color | White |
| Hertz | 60 |
| HP | 0.2 |
| Length (in) | 72 |
| No. of Speeds | 2 |
| Number of Motors | 1 |
| Phase | 1 |
| Product | Air Curtains |
| Product Type | Facility Maintenance |
| Series | Commercial Series |
| Temperature | Heated |
| Type | Heated |
| Voltage | 208 |
| Warranty | 2-year Limited Against Defects in Material & Workmanship |
| Weight | 88.00 |
