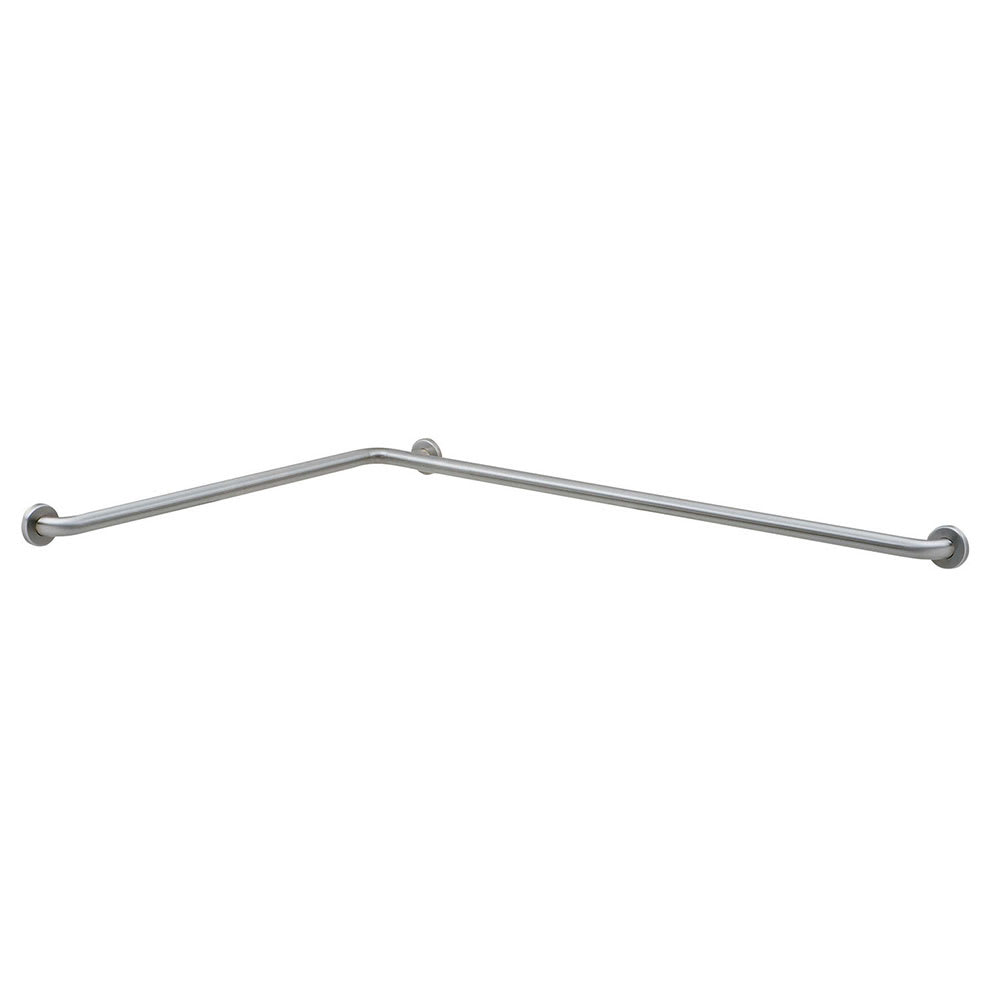

Two Wall Grab Bar, 1-1/4 in Diameter, 24 in W, 36 in D

Bobrick B58616 Grab Bars

MPN: B58616

Extended Lead Time (14+ days)

(0 reviews)Write a Review
Retail Price: $133.20
$86.58 / Each

Bobrick B58616 Description

SKU: 016-B58616

B58616

Features

  • 18 gauge, type 304 stainless steel tubing in 1-1/4' diameter
  • Concealed mounting flange
  • 1/8' thick, type 304 stainless steel plate
  • Cover is 22 gauge type 304 stainless steel with satin finish - 3-1/4' diameter
  • Cover snaps over mounting flange to conceal screws
  • 2' W x 3-1/8' H with screw holes for concealed anchors

Dimensions

1-1/4' Diameter - 24' W - 36' D

Two Wall Grab Bar, 1-1/4" Diameter, 24" W, 36" D. Constructed of 18 gauge type 304 satin finish stainless steel tubing in 1-1/4" diameter. Concealed mounting flange 1/8" thick, type 304 stainless steel plate, 2" W x 3-1/8" H, with screw holes for concealed anchors. Cover is 22 gauge type 304 stainless steel with satin finish and is 3-1/4" in diameter. Cover snaps over mounting flange to conceal screws.

Bobrick B58616 Specifications

PDF Spec Sheet
Manufacturer Bobrick
Weight 4.54
