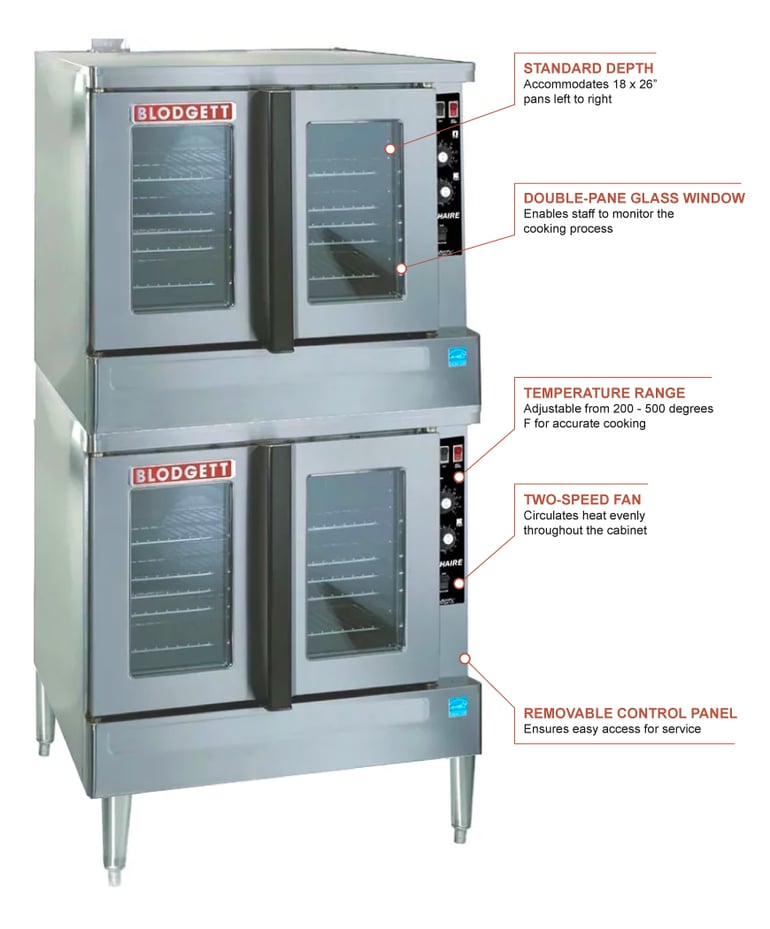

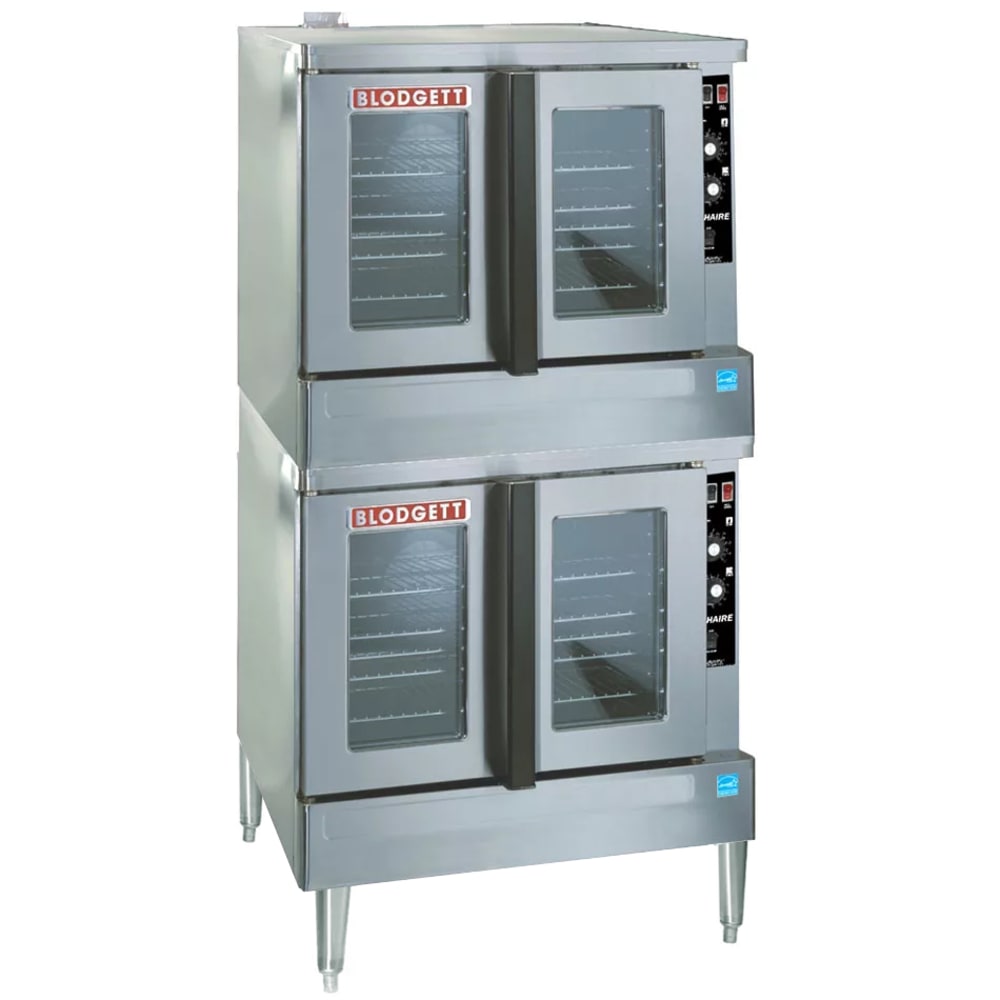

Temperatures in the Blodgett ZEPH-100-E DBL double full-size convection oven range from 200 to 500 degrees Fahrenheit, and heat is evenly distributed by a two-speed fan. The blower motor is protected from thermal overload. A cooling fan for the control area keeps the components at a safe temperature. There are five racks in each baking cavity, holding (10) 18-inch-by-26-inch pans in 11 different positions with a minimum spacing of 15⁄8 inches.
Oven lamps brighten the interior to ensure that product is easy to see through the double-pane windows. The doors for each of the compartments in this Blodgett ZEPH-100-E DBL double full-size convection oven open simultaneously with powder-coated handles. To keep the doors aligned and sealed, they are triple mounted into the frame. This unit has a stainless steel front, top, and sides to resist corrosion and provide strength in commercial applications.
- 5 chrome-plated racks hold (5) 18-in. x 26-in. pans in each compartment
- Racks can be placed in 11 positions with a 15⁄8-in. minimum spacing
- Standard depth in the compartments accommodate pans left to right
- Oven lamps shine on the baking product for visibility
- Dual-pane thermal glass windows in the stainless steel frames make it easy to monitor product progress
- Doors open simultaneously with the powder-coated door handles for compartment accessibility
- Triple-mounted pressure lock design ensures the doors are aligned and sealed
- Solid insulation at the top, bottom, back, and sides keeps heat inside the cabinet
- Stainless steel top, front, and sides are corrosion, dent, and scratch resistant
- Full angle-iron frame creates additional durability for commercial use
- Temperature range: 200-500 degrees F
- 2-speed fan moves heated air throughout the cabinet evenly
- Automatic thermal overload protects the blower motor from malfunctions
- Control area components are cooled by a fan
- Removable front control panel simplifies maintenance
- 6-in. stainless steel legs adjust to level on most floors
- 208 V/60 Hz/3 ph, 22 kW
- Interior dimensions: 29 in. W x 241⁄4 in. D x 20 in. H
- Overall dimensions: 381⁄4 in. W x 427⁄8 in. D x 705⁄8 in. H
- cETLus listed; NSF and ENERGY STAR certified
Zephaire Convection Oven, electric, double-deck, standard depth, capacity (5) 18" x 26" pans per compartment, (SSI-D) solid state infinite controls with digital timer, two speed fan, vent connector, dependent glass doors, interior light, stainless steel front, sides and top, 6" stainless steel legs, ETL, NSF, ENERGY STAR®, 208v/60/3ph
*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.
Important Prop 65 information for California residents.
Blodgett ZEPH-100-E DBL SpecificationsPDF Spec Sheet
|Door Construction||Glass Only|
|Go Green||Energy Star|
|Interior Construction||Stainless Steel|
|Number of Ovens||Double|
|Pans (per deck)||5 Pans|
|Warranty||2 years parts, 1 year labor, 1 additional year door warranty (Parts only, excluding glass)|
