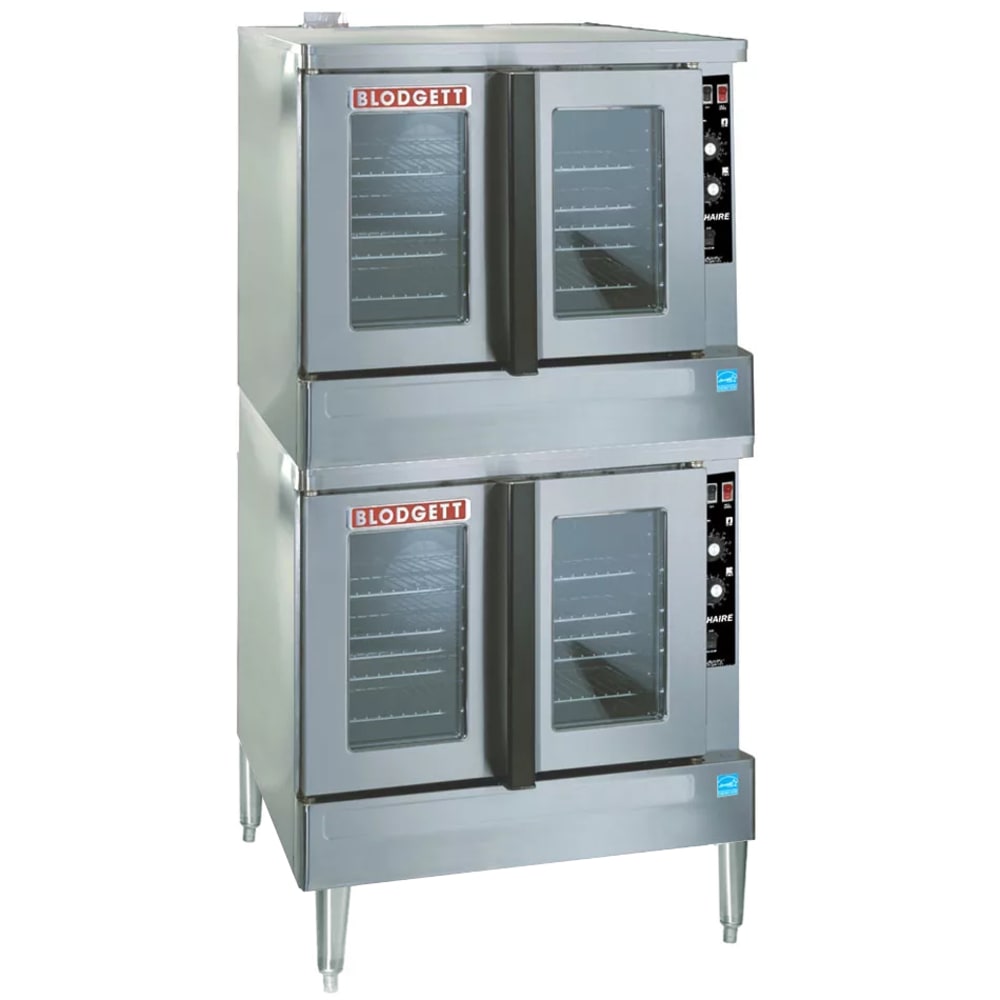

The Blodgett ZEPH-100-E DBL double full-size convection oven operates at temperatures ranging from 200 to 500 degrees Fahrenheit. Heated air is moved evenly throughout the compartments by a two-speed fan. There are five chrome-plated racks in each cavity, holding (10) 18-inch-by-26-inch pans left to right in their standard depth. Oven lamps are used to brighten the interiors, ensuring staff can monitor the cooking process. The product can be seen through the double-pane glass windows.
A turnbuckle assembly simultaneously opens the doors to each compartment with one handle. The front, top, and sides of this Blodgett ZEPH-100-E DBL double full-size convection oven are made of stainless steel to resist corrosion and provide durability. Automatic thermal overload protects the blower motor from damage, while the control area cooling fan keeps the components within a safe temperature range.

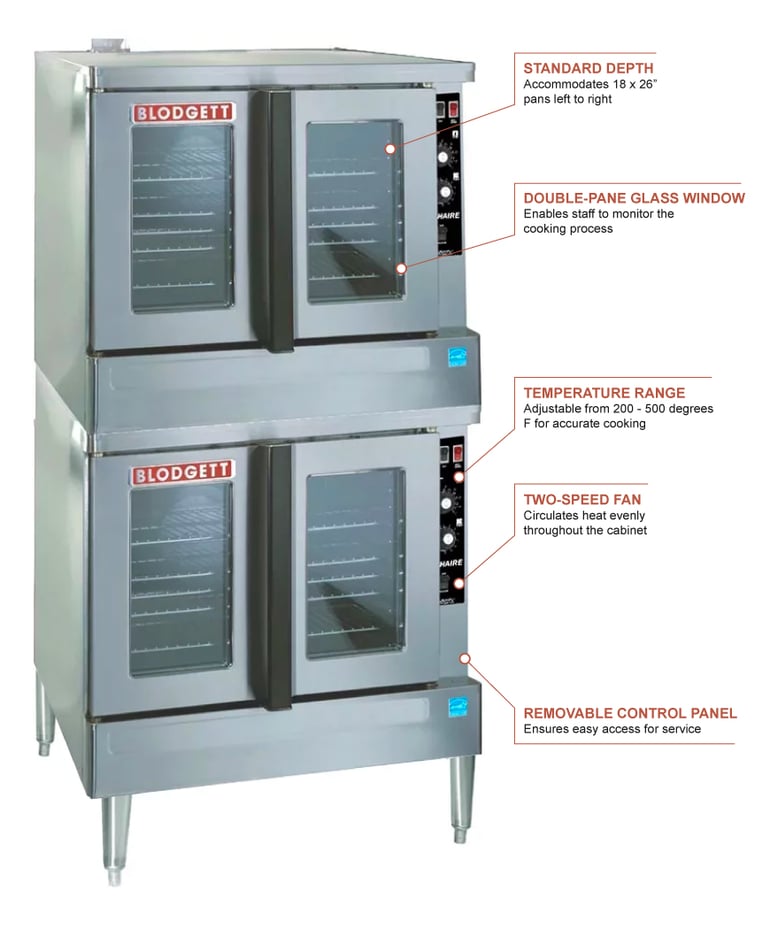

- Temperature range: 200-500 degrees F
- 2-speed fan motor distributes heat throughout the compartments evenly
- Each compartment holds (5) 18-in. x 26-in. full-size pans in 11 positions with a 15⁄8-in. minimum spacing
- Baking cavities have a standard depth that accommodates pans in the left-to-right position
- Lamps shine in the oven to enhance product visibility
- Dual-pane thermal glass windows in the stainless steel frames create a way for staff to view product
- 1 powder-coated door handle for each compartment opens the doors simultaneously
- Triple-mounted pressure lock design keeps the doors aligned while sealing in heated air
- Solid top, bottom, back, and side insulation prevents heat from easily escaping the compartments
- Stainless steel front, sides, and top are resistant to corrosion and have strength for heavy use
- Full angle-iron frame adds strength for withstanding heavy-duty use
- Automatic thermal overload protects the blower motor from damage
- Control area fan keeps the components cool
- Front control panel is removable for convenient maintenance
- Elevated off the floor with 6-in. adjustable, stainless steel legs
- 208 V/60 Hz/1 ph, 22 kW
- Interior dimensions: 29 in. W x 241⁄4 in. D x 20 in. H
- Overall dimensions: 381⁄4 in. W x 427⁄8 in. D x 705⁄8 in. H
- cETLus listed; NSF and ENERGY STAR certified
Zephaire Convection Oven, electric, double-deck, standard depth, capacity (5) 18" x 26" pans per compartment, (SSI-D) solid state infinite controls with digital timer, two speed fan, vent connector, dependent glass doors, interior light, stainless steel front, sides and top, 6" stainless steel legs, ETL, NSF, ENERGY STAR®, 208v/60/1ph
*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.
Important Prop 65 information for California residents.
Blodgett ZEPH-100-E DBL SpecificationsPDF Spec Sheet
|Door Construction||Glass Only|
|Go Green||Energy Star|
|Interior Construction||Stainless Steel|
|Number of Ovens||Double|
|Pans (per deck)||5 Pans|
|Warranty||2 years parts, 1 year labor, 1 additional year door warranty (Parts only, excluding glass)|
