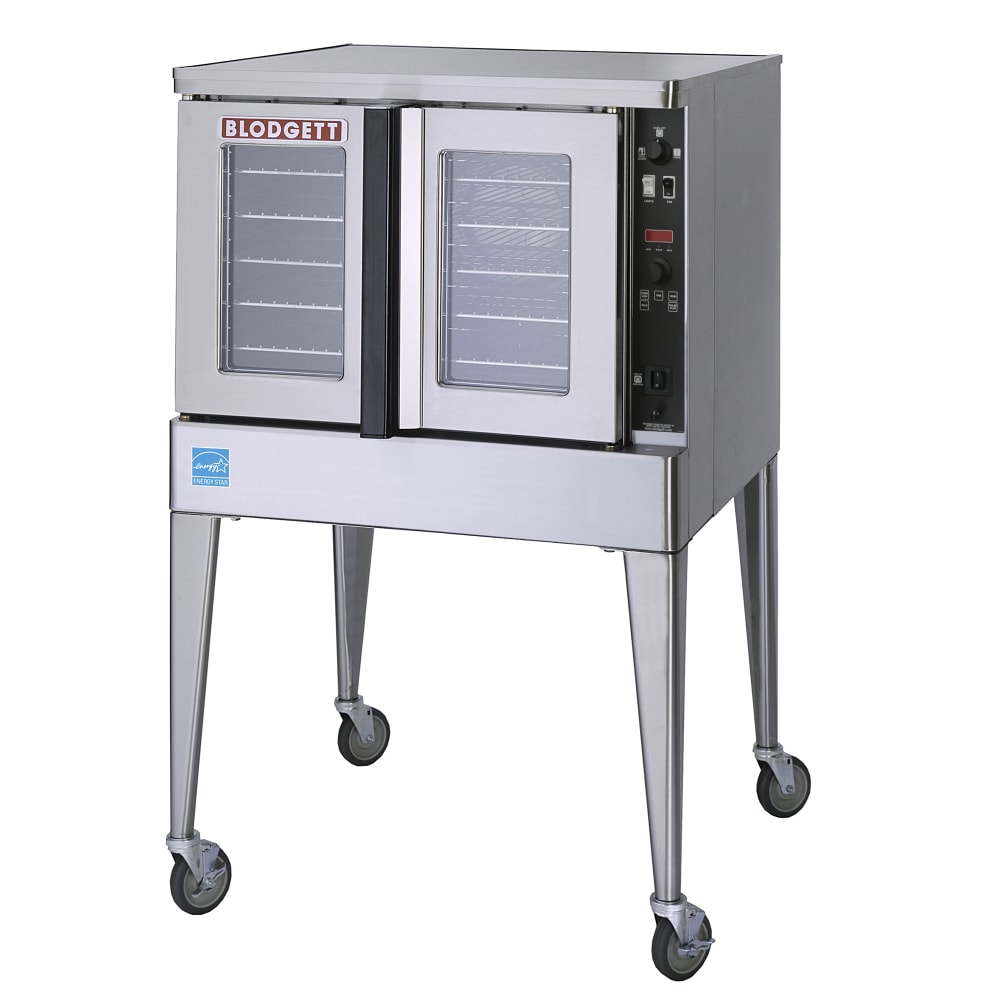

Blodgett MARK V-100 SGL Single Full Size Electric Convection Oven - 11kW, 220-240v/1ph

Because this Blodgett MARK V-100 SGL single-deck convection oven’s ¹⁄₂-horsepower blower motor evenly distributes hot air generated by the three tubular heaters, contents are baked quickly and uniformly. Operators can adjust the heaters' temperatures between 200 and 500 degrees Fahrenheit with the solid-state thermostat, while solid mineral fiber insulation built into the base, sides, back, and top preserves heat for energy conservation. The modular front panel slides out for accessibility and features an LED display with Pulse Plus® and cook-and-hold options.

For low- and medium-volume applications, the Blodgett MARK V-100 SGL commercial convection oven's baking chamber accommodates five 18-inch by 26-inch full-size baking pans on its five removable chrome-plated racks. To achieve a specific result, users can reposition these racks in 1⁵⁄₈-inch increments—11 rack positions in total. Its two stainless steel doors operate dependently so users can open and close them with one hand, simplifying pan loading and retrieval. Dual-pane thermal glass windows grant an unobstructed view of the pans, while integrated halogen lights illuminate the interior so users can manage baking, roasting, or rethermalizing. For durability, this 38¹⁄₄-inch-wide by 40¹⁄₂-inch-deep by 57-inch-high piece has a stainless steel exterior and double-sided porcelainized baking compartment liner. This oven is mounted on 25-inch stainless steel legs that can be adjusted on irregular flooring.

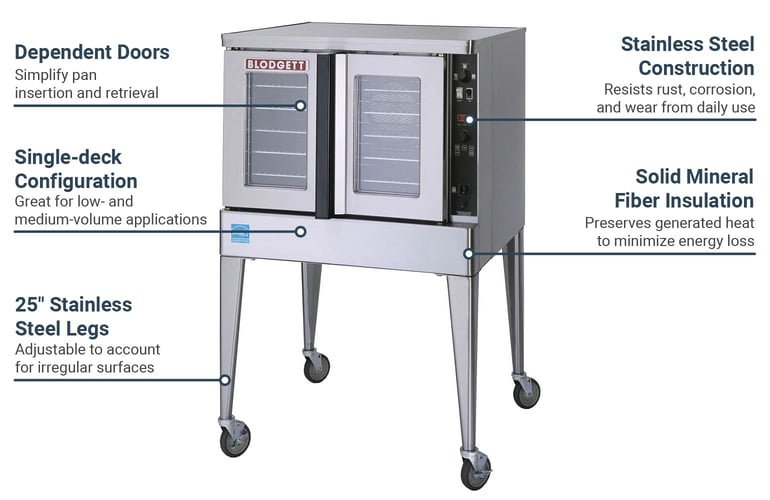

Construction Details

• Full-size, single-deck unit
• Standard-depth baking chamber
• 5 removable, chrome-plated racks adjustable to 11 positions
• Capacity: (5) 18-in. x 26-in. full-size baking pans
• Sturdy full angle-iron frame
• Adjustable 25-in. stainless steel legs
• Rigid stainless steel top, front, and sides
• Double-sided porcelain compartment liner
• Solid mineral fiber insulation built into top, back, sides, and bottom
• 2 dependent doors with 1 powder-coated door handle
• Triple-mounted, pressure-lock door design with turnbuckle assembly
• Dual-pane grease-resistant thermal glass windows
• Aluminized blower wheel
• Halogen lights illuminate interior
• Modular slide-out front control panel is simple to access

Operational Details

• 3 tubular heaters
• 2-speed fan motor
• Automatic thermal overload protection
• 2 halogen oven lamps
• Control area cooling fan
• Vent connector
• Operating temperature range: 200-500 degrees F
• Solid-state thermostat with LED display
• Cook-and-hold function
• Pulse Plus option

Dimensions & Utilities

• Interior: 29 in. W x 24¹⁄₄ in. D x 20 in. H
• Overall: 38¹⁄₄ in. W x 40¹⁄₂ in. D x 57 in. H
• 44 A, 11 kW, ¹⁄₂ HP
• 220/240 V/60 Hz/1 ph

Product Features

*Free shipping on Blodgett MARK V-100 SGL within the 48 contiguous states.

From The Manufacturer

Convection Oven, electric, single-deck, standard depth, capacity (5) 18" x 26" pans, (SSD) solid state digital controls, 2-speed fan, interior light, simultaneous operated doors with glass, stainless steel front, sides & top, 25" stainless steel legs, 11.0kW, 1/3 hp, cETLus, CE, NSF, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

3-year Parts; 2-year Labor; 5-year Door Parts
