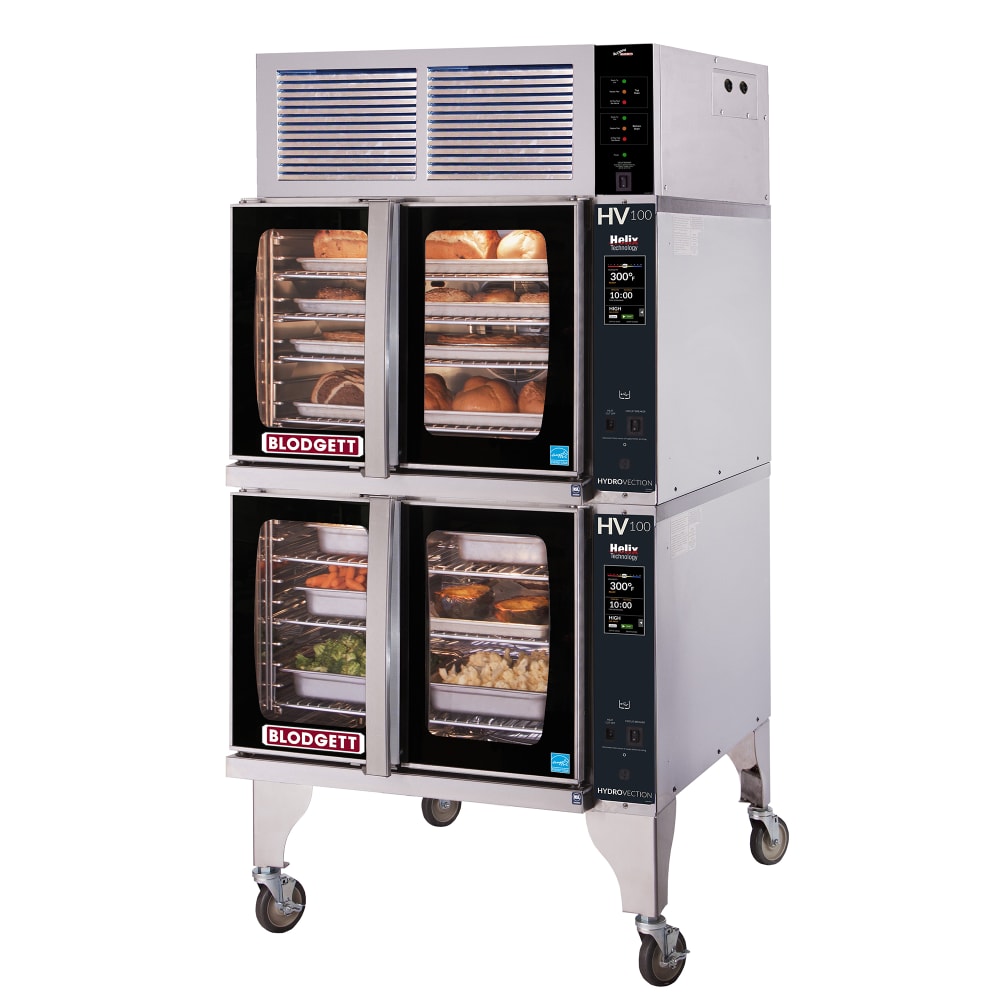

Blodgett HV-100E HydroVection™ Double Full Size Electric Convection Oven - 30kW, 208v/3ph

The Blodgett HV-100EDBL HydroVection™ convection oven includes 10 stainless steel racks that can be placed in 18 positions. With a standard depth, the cavities hold 18-inch-by-26-inch full-size baking pans left to right. Made of heavy-duty stainless steel, the liner resists corrosion, while its coved corners eliminate crevices that could trap food liquids and particles. This liner simplifies cleaning along with the drain that collects excess condensation and waste water. To ensure hot water doesn't damage pipes, the thermostatically-controlled quench system cools draining liquid.

The interior is illuminated by halogen lights for product visibility, while 2.5 inches of insulation retains warm air. Staff members can monitor the cooking product since the black doors have dual-pane glass panels, while the interior panels use a hinged design to simplify cleaning. A handle opens both doors at the same time with the turnbuckle assembly, and the comfortable handle eases opening and closing the doors.

The control system in the Blodgett HV-100EDBL HydroVection convection oven has modes for hot air, humidity, and cool down functions. Hot air is ideal for baking, and humidity can be adjusted in 5-percent increment, while a Hydroburst feature enables 100-percent humidity to be added to any cooking cycle. There is a vent for releasing steam, so food does not get soggy, and it is controlled by a switch for operator convenience.

Product Details

• 6 tubular heating element design
• Holds (10) 18-in. x 26-in. pans on 10 stainless steel racks in 18 positions
• Standard depth baking pans fit left to right in the cavities
• Stainless steel cavity liners have coved corners that prevent particles and liquids from collecting to ease cleaning
• Drain collects condensation and waste water from the cavities
• Thermostatically-controlled quench system cools down hot water before it drains into pipes
• Halogen lights illuminate the cavity
• 2.5-in. super wool plus insulation retains heat
• Front, sides, top, and back are constructed of stainless steel to resist corrosion, dents, and scratches
• Fully-welded, angle-iron frame creates structure for frequent use
• 8.5-in. stainless steel legs use casters to faciliate mobility
• Hand shower is included for cleaning
• 208 V/60 Hz/3 ph, 30 kW, (2) ³⁄₄ HP
• Oven interior dimensions: 29 in. W x 23.43 in. D x 20 in. H
• Overall dimensions: 38.1 in. W x 48.7 in. D x 63.6 in. H

Product Features

Manual Control System

• Hot air, humidity, and cool down modes are versatile for different applications
• Humidity level can be adjusted in 5-percent increments
• Hydroburst feature adds 100-percent humidity to any cook cycle
• Core probe function uses a 6-in. temperature probe for cooking and holding accuracy
• 4-speed fan control uses gentle, low, high, and turbo settings for different products
• Cavity vent control enables the operator to control steam release so food does not get soggy
• 100 recipes can be uploaded through USB connection

Heavy-Duty Door Construction

• Black doors let staff monitor the cooking process through dual-pane, Low-E glass panels
• Interior glass panel has a hinged design that simplifies the cleaning process
• One-piece curved handle adds comfort for opening and closing the doors
• Turnbuckle assembly opens the doors at the same time for convenient access

*Free shipping on Blodgett HV-100E within the 48 contiguous states.

From The Manufacturer

HydroVection™ Oven, Electric, full size, double stacked, capacity (10) 18" x 26" pans, black glass doors, (4) halogen lamps, (10) stainless steel racks and (10) rack positions, cavity vent, programmable manual controls with hot air, humidity & cool down functions, four speed auto-reversing fan motor with overload protection, (6) tubular heaters, 4" fillet core probe cook & hold & USB connection, side mounted hand shower, 304 stainless steel insulated interior liner, stainless steel front, top, sides & back, 8-1/2" stainless steel legs with casters and stacking kit, 30.0kW, (2) 3/4 HP, 208v/60/3ph, cETLus, NSF, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

Blodgett HV-100E Specifications

Spec Attribute	Spec Value
Manufacturer	Blodgett
Base	Casters
Controls	Manual
Depth (in)	42.51
Door Construction	Metal with Window
Door Type	Independent
Heat	Electric
Height (in)	66.12
Hertz	60
Interior Construction	Stainless Steel
kW	15
Number of Ovens	Double
Oven Interior Style	Standard Depth
Pans Per Deck	5
Phase	3
Product	Convection Ovens
Product Type	Cooking Equipment
Rating	Best
Series	HydroVection™
Size	Full Size
Special Features	Cook & Hold
Special Features	Probe
Special Features	Programmable
Special Features	Ventless
Type	Floor Model
Voltage	208
Warranty	1-year Parts & Labor
Width (in)	38.07
Weight	925.00
