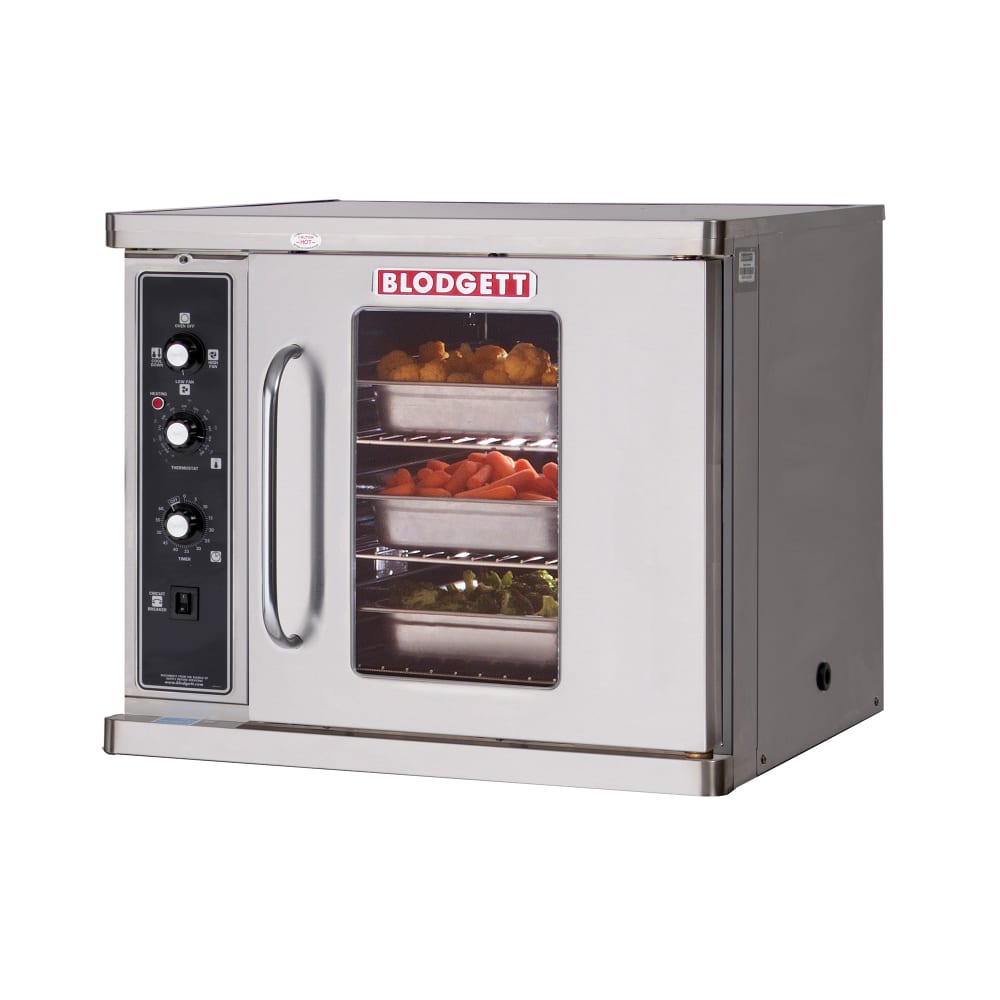

Blodgett CTBR ADDL Single Half Size Electric Convection Oven - 5.6kW, 220-240v/1ph
Typically ships in 4 - 8 Business Days
$12,212.00 /Each
Selected Voltage: 220-240V, 1 Phase
| 208V, 1 Phase |
| 208V, 3 Phase |
| 220-240V, 1 Phase |
| 220-240V, 3 Phase |
White Glove Delivery
Contact your sales rep for availability
Blodgett CTBR ADDL Description

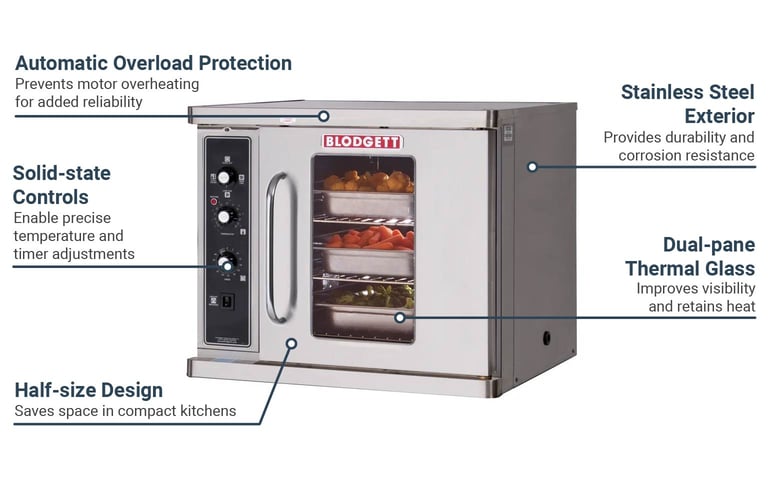

The Blodgett CTBR ADDL half-size convection oven is engineered for durability and precision, making it ideal for commercial baking applications. Its stainless steel exterior resists corrosion and daily wear, while the porcelain-lined interior simplifies cleanup and ensures even heat distribution. Mineral fiber insulation helps retain heat for energy-efficient operation. The unit accommodates five 13-inch by 18-inch pans across five adjustable chrome-plated racks, allowing operators to configure the oven space based on their cooking needs. A dual-pane windowed door with a stainless steel frame provides visibility into the baking chamber while minimizing heat loss.
Designed for accuracy, the Blodgett CTBR ADDL convection oven is equipped with solid-state controls and a 60-minute timer, ensuring precise temperature management. The tilt-down modular control panel provides convenient access to settings, while the two-speed fan motor circulates heat evenly to eliminate hot spots. The oven maintains temperatures between 200 and 500 degrees Fahrenheit, making it suitable for baking, roasting, and other cooking applications. To promote safety and prolong the life of its components, the unit features automatic overload protection for the blower motor and a cooling fan to prevent overheating.
Product Details
- Holds (5) 13-in. x 18-in. pans purchased separately
- Stainless steel exterior
- Porcelain-lined interior
- Mineral fiber insulation
- Full angle-iron frame
- 1 dual-pane windowed door with stainless steel frame
- 5 adjustable chrome-plated racks
- 9 total rack positions with 15/8-in. spacing
- Tilt-down modular control panel
Operating System
- 2 tubular heating elements
- 2-speed fan motor
- Solid-state controls with a 60-minute timer
- Temperature range: 200-500 degrees F
- Cooling fan
- Automatic thermal overload protection (blower motor)
Dimensions & Utilities
- Interior: 151/4 in. W x 21 in. D x 20 in. H
- Overall: 301/4 in. W x 251/8 in. D x 251/2 in. H
- 24 A, 5.6 kW, 1/4 HP
- 220/240 V/60 Hz/1 ph, hardwired
Product Features
*Free shipping on Blodgett CTBR ADDL within the 48 contiguous states.
From The Manufacturer
Convection Oven, electric, single-deck, half-size, capacity (5) 13" x 18" pans, (SSM) solid state infinite controls with separate dials for thermostat and timer, 2-speed fan, single door, hinged on right, with dual pane thermal glass window, stainless steel front, sides, top & back, vent riser, NSF, ETL, CE, ENERGY STAR®
*Image may not depict product color, inclusions or accessories.
Watch a video about this product
Blodgett CTBR ADDL Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Blodgett |
| Base | None |
| Controls | Manual |
| Depth (in) | 25.13 |
| Door Construction | Metal with Window |
| Door Type | Independent |
| Heat | Electric |
| Height (in) | 25.5 |
| Hertz | 60 |
| Interior Construction | Porcelain |
| kW | 5.6 |
| Number of Ovens | Single |
| Oven Interior Style | Standard Depth |
| Pans Per Deck | 5 |
| Phase | 1 |
| Product | Convection Ovens |
| Product Type | Cooking Equipment |
| Rating | Best |
| Series | CTB Series |
| Size | Half Size |
| Type | Requires Base |
| Voltage | 220/240 |
| Warranty | 3-year Parts; 2-year Labor; 5-year Door Parts |
| Width (in) | 30.25 |
| Weight | 350.00 |
