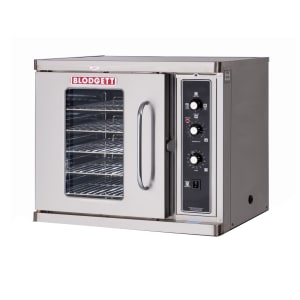

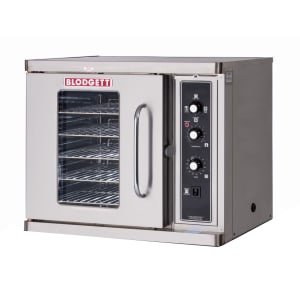

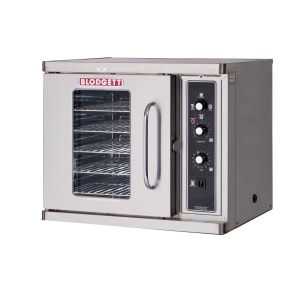

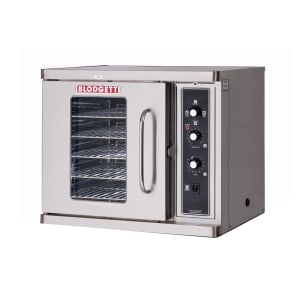

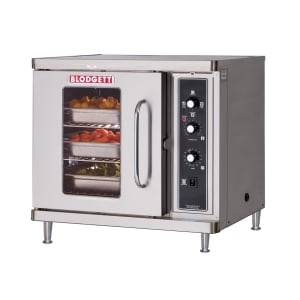

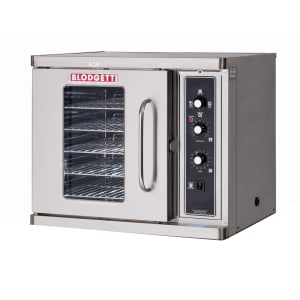

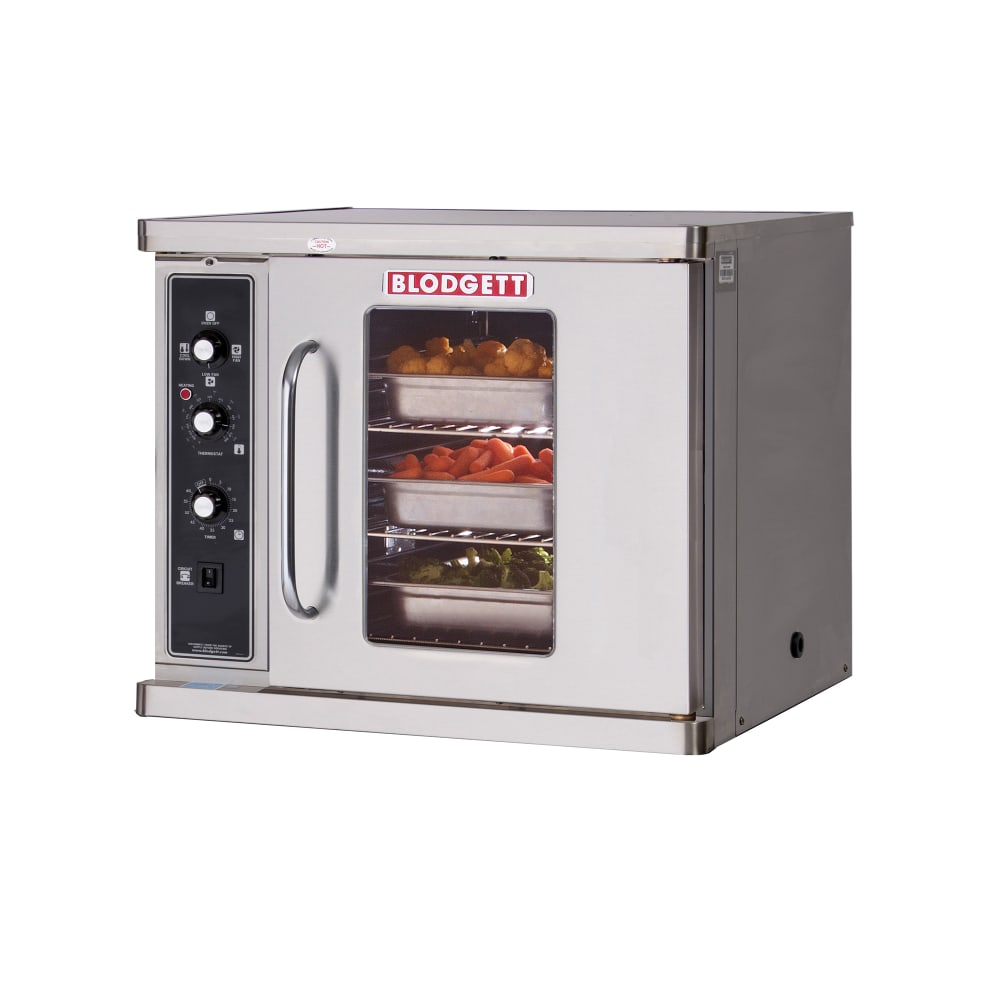

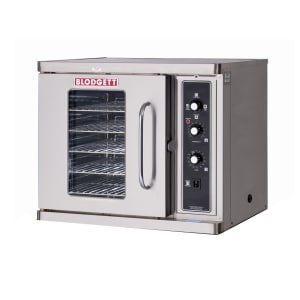

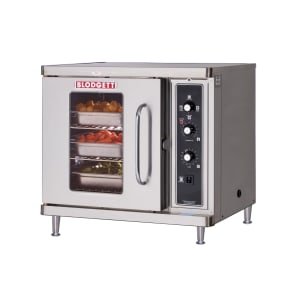

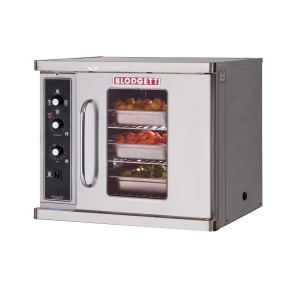

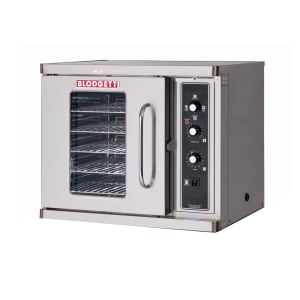

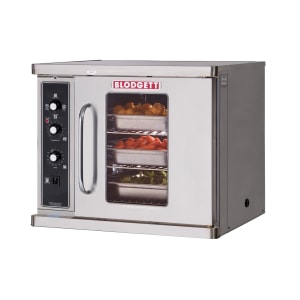

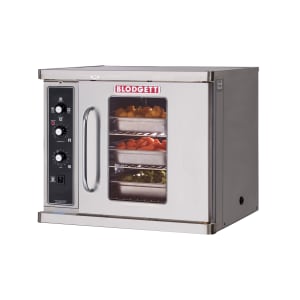

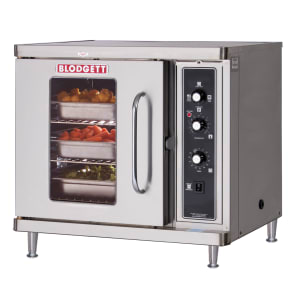

Blodgett CTBR ADDL Single Half Size Electric Convection Oven - 5.6kW, 208v/1ph
Typically ships in 4 - 8 Business Days
$12,212.00 /Each
Selected Voltage: 208V, 1 Phase
| 208V, 1 Phase |
| 208V, 3 Phase |
| 220-240V, 1 Phase |
| 220-240V, 3 Phase |
White Glove Delivery
Contact your sales rep for availability
Blodgett CTBR ADDL Description
The Blodgett CTBR ADDL half-size convection oven is designed to support high-volume commercial baking with precision and efficiency. Its stainless steel exterior enhances durability, while the porcelain-lined interior resists stains and simplifies cleaning. Insulated with mineral fiber, the oven retains heat efficiently, reducing energy consumption and ensuring consistent results. With a dual-pane windowed door framed in stainless steel, operators can monitor food without compromising heat retention. The unit accommodates five 13-inch by 18-inch pans and includes five adjustable chrome-plated racks for versatile cooking configurations.
Equipped with solid-state controls and a 60-minute timer, the Blodgett CTBR ADDL convection oven offers reliable performance and precise temperature adjustments. Its tilt-down modular control panel provides convenient access to settings, while a two-speed fan motor promotes even heat distribution to prevent hot spots. Operating within a temperature range of 200 to 500 degrees Fahrenheit, the oven suits various baking and roasting applications. Safety features include automatic overload protection for the blower motor and a cooling fan to maintain optimal internal conditions.
Product Details
- (5) 13-in. x 18-in. pans (not included)
- Stainless steel exterior
- Mineral fiber insulation
- Full angle-iron frame
- Porcelainized backing compartment
- 5 adjustable chrome-plated racks
- 9 rack positions
- Minimum of 15/8-in. spacing
- 1 dual-pane windowed door with stainless steel frame
- Tilt-down modular control panel
Operating System
- 2 tubular heating elements
- Dual-speed fan motor
- 1,140 and 1,725 RPM
- Cooling fan
- Automatic overload protection (blower motor)
- Solid-state controls with a 60-minute timer
- Temperature range: 200-500 degrees F
Dimensions & Utilities
- Interior: 151/4 in. W x 21 in. D x 20 in. H
- Overall: 301/4 in. W x 251/8 in. D x 251/2 in. H
- 27 A, 5.6 kW, 1/4 HP
- 208 V/60 Hz/1 ph, hardwired

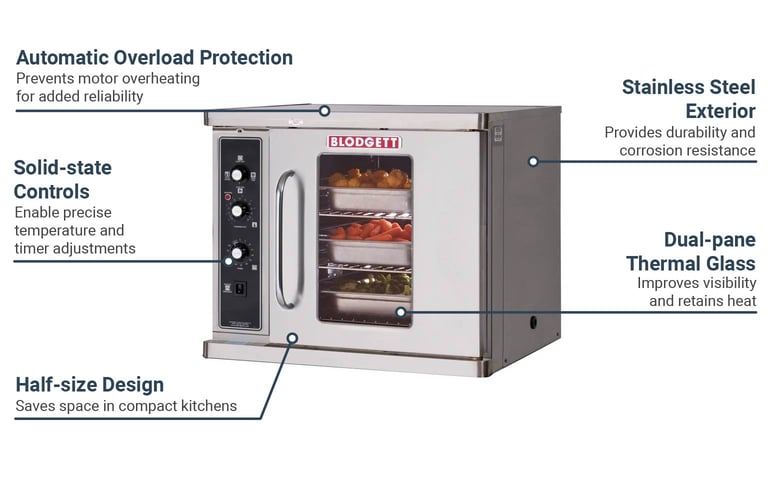

Product Features
*Free shipping on Blodgett CTBR ADDL within the 48 contiguous states.
From The Manufacturer
Convection Oven, electric, single-deck, half-size, capacity (5) 13" x 18" pans, (SSM) solid state infinite controls with separate dials for thermostat and timer, 2-speed fan, single door, hinged on right, with dual pane thermal glass window, stainless steel front, sides, top & back, vent riser, NSF, ETL, CE, ENERGY STAR®
*Image may not depict product color, inclusions or accessories.
Watch a video about this product
Blodgett CTBR ADDL Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Blodgett |
| Base | None |
| Controls | Manual |
| Door Construction | Metal with Window |
| Door Type | Independent |
| Depth (in) | 25.13 |
| Heat | Electric |
| Hertz | 60 |
| Interior Construction | Porcelain |
| kW | 5.6 |
| Height (in) | 25.5 |
| Number of Ovens | Single |
| Oven Interior Style | Standard Depth |
| Pans Per Deck | 5 |
| Phase | 1 |
| Rating | Best |
| Size | Half Size |
| Series | CTB Series |
| Product | Convection Ovens |
| Product Type | Cooking Equipment |
| Voltage | 208 |
| Type | Requires Base |
| Warranty | 3-year Parts; 2-year Labor; 5-year Door Parts |
| Width (in) | 30.25 |
| Weight | 350.00 |
