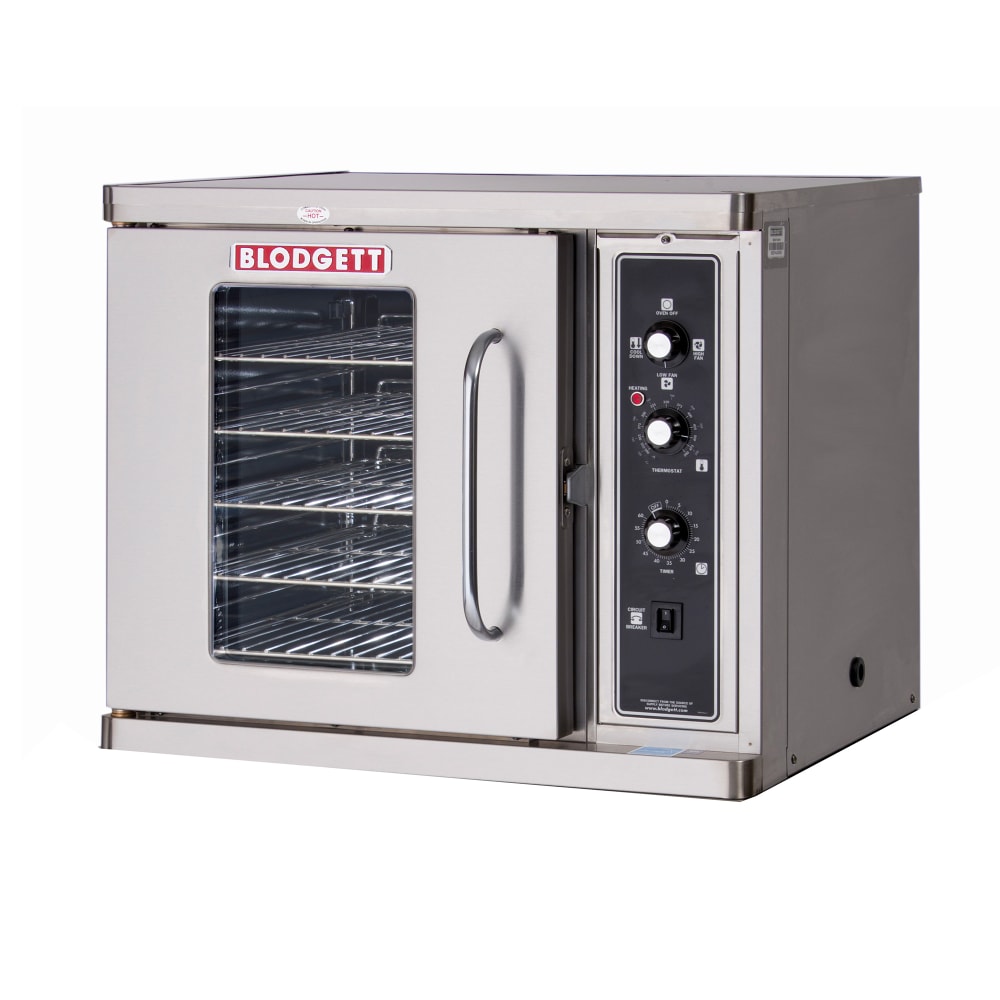

Blodgett CTB ADDL Single Half Size Electric Convection Oven - 5.6kW, 220-240v/3ph
Typically ships in 4 - 8 Business Days
$12,212.00 /Each
Selected Voltage: 220-240V, 3 Phase
| 208V, 1 Phase |
| 208V, 3 Phase |
| 220-240V, 1 Phase |
| 220-240V, 3 Phase |
White Glove Delivery
Contact your sales rep for availability
Blodgett CTB ADDL Description

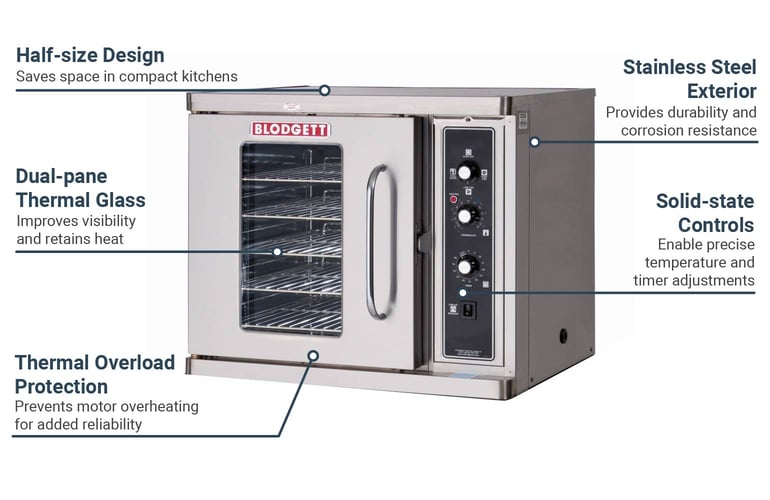

The Blodgett CTB ADDL half-size convection oven is designed for high-volume baking in commercial kitchens. It accommodates five 13-inch by 18-inch pans on five adjustable chrome-plated racks, offering flexibility for different cooking needs. Its solid-state infinite controls provide separate dials for thermostat and timer adjustments, while the two-speed fan ensures even heat distribution. The single left-hinged door features a dual-pane thermal glass window, allowing operators to monitor cooking progress without opening the oven.
Built with durability in mind, the Blodgett CTB ADDL convection oven features a stainless steel exterior and a double-sided porcelainized baking compartment liner for easy cleaning. Mineral fiber insulation enhances heat retention, while the full angle-iron frame provides structural integrity. The oven operates with two tubular heaters and a solid-state thermostat, maintaining temperatures between 200 and 500 degrees Fahrenheit. A tilt-down modular front control panel houses dial knobs for easy operation, and the unit includes a thermal overload motor protection system with a cooling fan.
Product Details
- Holds (5) 13-in. x 18-in. pans (not included)
- Stainless steel exterior
- Double-sided porcelainized baking compartment liner
- Mineral fiber insulation
- Full angle-iron frame
- Single left-hinged door with dual-pane thermal glass
- Chrome-plated door handle
- 5 adjustable chrome-plated racks
- Tilt-down modular front control panel
Operating System
- 2 tubular heaters
- 2-speed fan
- Thermal overload motor protection
- 1 cooling fan
- Solid-state infinite controls with separate thermostat and timer dials
- Temperature range: 200-500 degrees F
Dimensions & Utilities
- Interior: 151/4 in. W x 21 in. D x 20 in. H
- Overall: 301/4 in. W x 251/8 in. D x 291/2 in. H
- 24 A, 5.6 kW, 1/4 HP
- 220/240 V/60 Hz/1 ph, hardwired
Product Features
*Free shipping on Blodgett CTB ADDL within the 48 contiguous states.
From The Manufacturer
Convection Oven, electric, single-deck, half-size, capacity (5) 13" x 18" pans, (SSM) solid state infinite controls with separate dials for thermostat and timer, 2-speed fan, single door, hinged on left, with dual pane thermal glass window, stainless steel front, sides, top & back, vent riser, NSF, ETL, CE, ENERGY STAR®
*Image may not depict product color, inclusions or accessories.
Watch a video about this product
Blodgett CTB ADDL Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Blodgett |
| Base | None |
| Controls | Manual |
| Depth (in) | 25.13 |
| Door Construction | Metal with Window |
| Door Type | Independent |
| Heat | Electric |
| Height (in) | 29.5 |
| Hertz | 60 |
| Interior Construction | Porcelain |
| kW | 5.6 |
| Number of Ovens | Single |
| Oven Interior Style | Standard Depth |
| Pans Per Deck | 5 |
| Phase | 3 |
| Product | Convection Ovens |
| Product Type | Cooking Equipment |
| Rating | Best |
| Series | CTB Series |
| Size | Half Size |
| Type | Requires Base |
| Voltage | 220/240 |
| Warranty | 3-year Parts; 2-year Labor; 5-year Door Parts |
| Width (in) | 30.25 |
| Weight | 350.00 |
