Blodgett CTB Double Half Size Electric Convection Oven - 5kW, 208v/3ph
Typically ships in 4 - 8 Business Days
$22,587.00 /Each
Selected Voltage: 208V, 3 Phase
| 208V, 3 Phase |
| 208V, 1 Phase |
White Glove Delivery
Contact your sales rep for availability
Blodgett CTB Description
The Blodgett CTB double half-size convection oven can hold (10) 18-inch by 13-inch pans front to back in the oven interiors that are double sided and porcelainized. Because they are slicker than aluminized and stainless steel interiors, the porcelain interiors reduce bacteria and food buildup. A control panel with solid-state, manual control dials for temperature and time is accessible on the front of the ovens.
Operators can monitor food cooking in the oven through the double-pane glass window, and the door handles are chrome plated for comfort. Mostly made of stainless steel, the exterior of the Blodgett CTB double half-size convection oven is durable for high-volume use and rust resistance. Insulation in the top, bottom, rear, and sides prevents heat from escaping to maintain the cooking temperature.
Product Details
- Holds (10) 18-in. x 13-inch pans front to back
- Each compartment has 5 chrome-plated racks
- 9-position rack guides have minimum 15⁄8-in. spacing
- Double-sided, porcelainized baking chambers are slick, preventing bacteria and flood from building up
- Dual-pane thermal glass windows in the stainless steel door frames enable operators to monitor food
- Chrome-plated door handles
- Stainless steel exterior top, front, sides, and back resist rusting, denting, and scratching
- Solid insulation in the top, bottom, back, and sides retains heat
- Tilt-down modular front control panels
- Solid-state controls have individual dials for temperature and time
- Temperature range: 200-500 degrees F
- 2-speed fan motor: 1,140 or 1,725 RPM
- Blower motor is protected from overheating by thermal overload protection
- Control area cooling fan prevents components from overheating
Dimensions & Utilities
- Interiors: 151⁄4 in. W x 21 in. D x 20 in. H
- Overall: 301⁄4 in. W x 287⁄8 in. D x 691⁄8 in. H
- 12-24 A, 11.2 kW
- 208 V/60 Hz/3 ph
*Free shipping on Blodgett CTB within the 48 contiguous states.
From The Manufacturer
Convection Oven, electric, double-deck, half-size, capacity (5) 13" x 18" pans, (SSM) solid state infinite controls with separate dials for thermostat and timer, 2-speed fan, single door per deck, hinged on left, with dual pane thermal glass windows, stainless steel front, sides, top & back, vent riser, 208v/60/3ph, NSF, ETL, CE, ENERGY STAR®

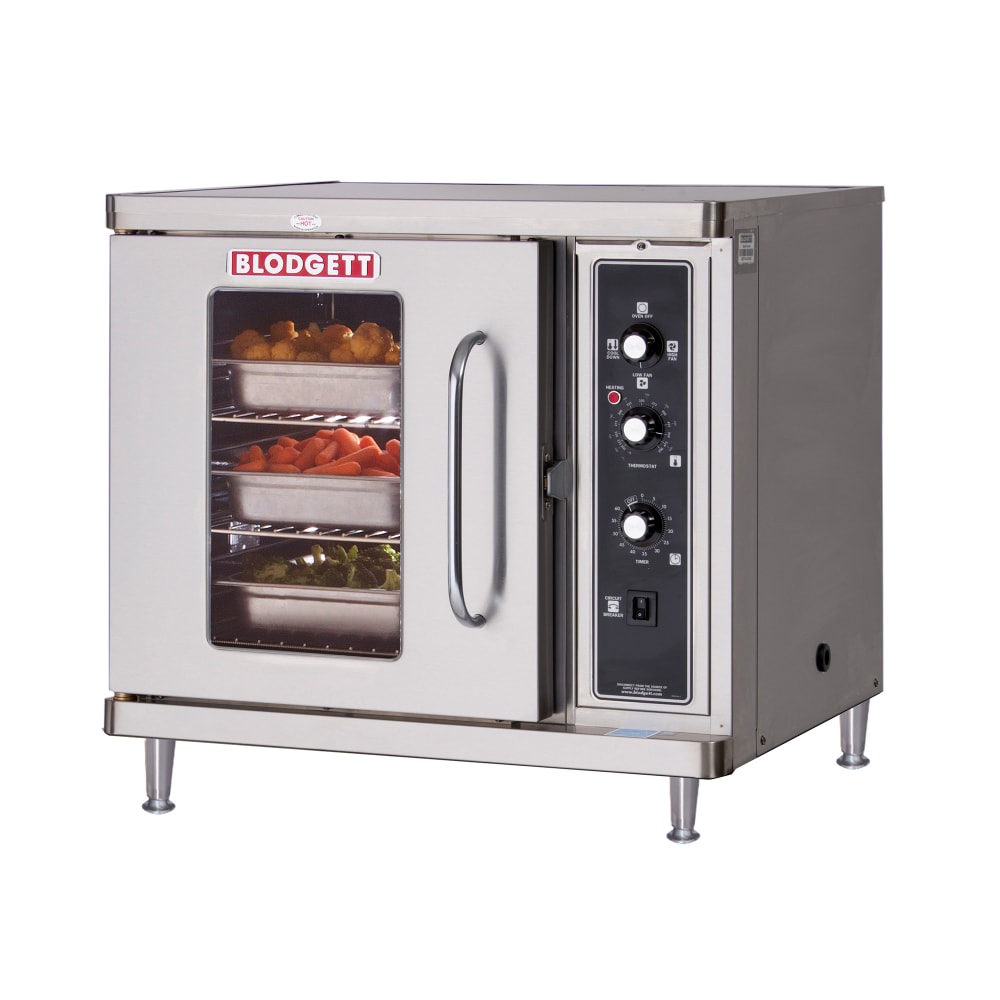

*Not as Shown - Double Oven
Watch a video about this product
Blodgett CTB Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Blodgett |
| Base | Legs |
| Controls | Digital |
| Depth (in) | 25.13 |
| Door Construction | Metal with Window |
| Door Type | Independent |
| Heat | Electric |
| Height (in) | 69.13 |
| Hertz | 60 |
| Interior Construction | Stainless Steel |
| kW | 5.6 |
| Number of Ovens | Double |
| Oven Interior Style | Standard Depth |
| Pans Per Deck | 5 |
| Phase | 3 |
| Product | Convection Ovens |
| Product Type | Cooking Equipment |
| Rating | Best |
| Series | CTB Series |
| Size | Half Size |
| Type | Requires Base |
| Voltage | 208 |
| Warranty | 3-year Parts; 2-year Labor; 5-year Door Parts |
| Width (in) | 30.25 |
| Weight | 595.00 |
