Blodgett BCX-14E DBL Description

Blodgett

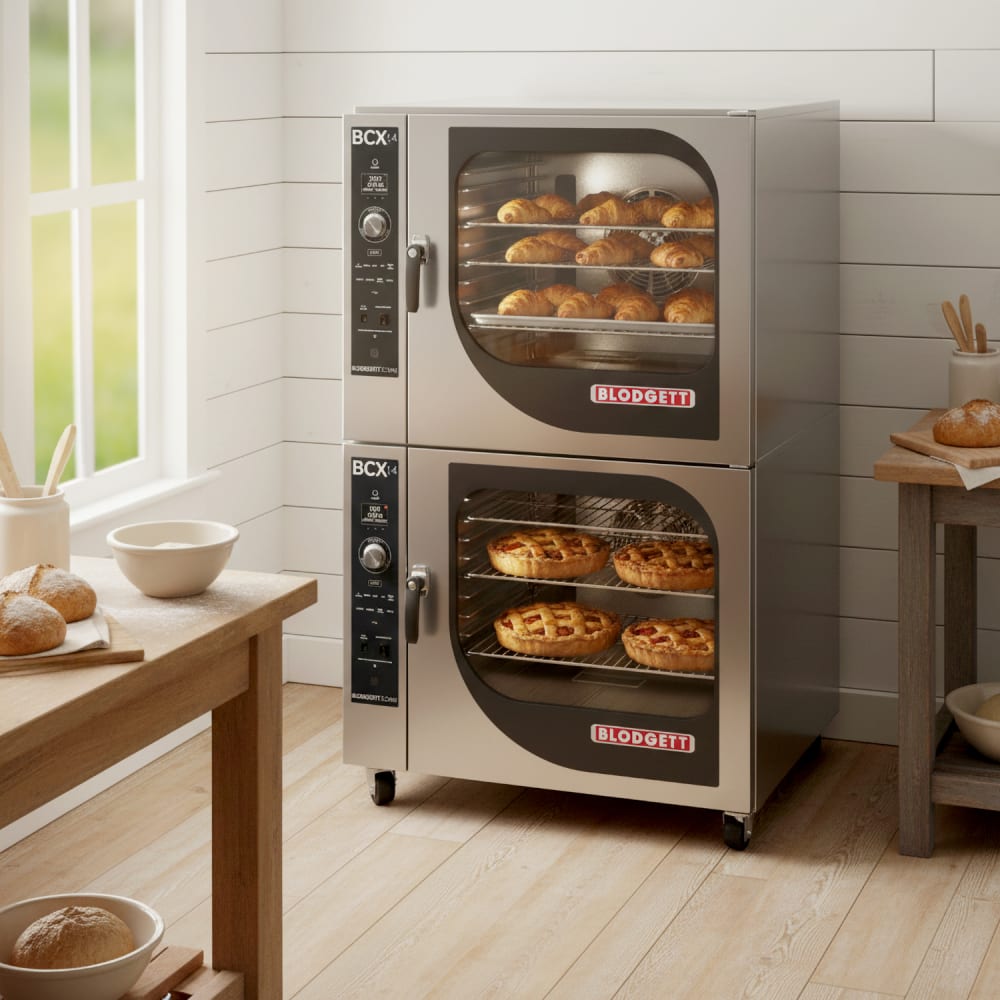

The Blodgett BCX-14EDBL double full-size combi oven holds up to seven 18-inch-by-26-inch or (14) 12-inch-by-20-inch pans in each cavity. It comes with 10 heavy-duty, corrosion-resistant stainless steel racks. Visibility inside the cabinets is provided by halogen lights, enabling staff to monitor the cooking process through double-pane glass windows. To simplify the cleaning process, the interior liners have coved corners that eliminate crevices. There is also a drain in the bottom of the oven, so excess water drains out of the cavities. Heat is kept inside the cooking chambers since they are fully insulated.

With manual controls, the operator has the option for hot air, humidity, and cool down functions with an additional feature for steaming on demand. The thermostat on this Blodgett BCX-14EDBL double full-size combi oven can be adjusted up to 500 degrees Fahrenheit and, for even baking, there is a multiple speed, reversing fan. An open-vented system condenses steam and drains by-product to ensure flavor transfer between cook cycles is eliminated. There is a dual door latch to vent steam before the door is fully opened, and the user can release steam when necessary with a switch.

Product Details

  • Stainless steel side rails can hold (14) 18-in. x 26-in. sheet pans or (28) 12-in. x 20-in. hotel pans with 3.25-in. spacing
  • Includes 10 heavy-duty, corrosion-resistant stainless steel racks
  • Halogen lights enhance visibility inside the chambers
  • Interior liners have coved corners to eliminate crevices that would trap particles and liquids
  • Fully insulated cavities retain heat for accurate cooking
  • Fixed drain in the bottom of the cavities captures excess waste water
  • Stainless steel front, top, sides, and back create durability and corrosion resistance
  • Welded stainless steel frame adds structural strength for heavy use
  • Pivot-out user interface panel provides convenient access for maintenance
  • Comes with a pressure spray bottle, deliming bottle, and pump assembly
  • Floor stand is included with rack supports
  • Casters can be mounted for smooth mobility
  • Start-up inspection service is offered by a factory-authorized service agent
  • Requires a 2-in. clearance for the sides and 3-in. clearance for the rear
  • 208 V/60 Hz/3 ph, 38 kW, (2) 12 HP
  • Overall dimensions: 40.19 in. W x 43.3 in. D x 68.98 in. H
  • cETLus listed; NSF certified

Manual Control System

  • Hot air, humidity, and cool down functions are easy to select for different applications
  • Feature for steaming on demand is available
  • Thermostat controls can be adjusted to 500 degrees F
  • 6-in. temperature core probe ensures meat reaches its ideal internal temperatures
  • Probe plugs in on the control panel and temperature is shown on the digital display
  • Multiple speed, reversing fan control provides an even bake
  • Open-vented system condenses steam and drains by-products to eliminate flavor transfer between cooking cycles
  • Dual stage door latch vents steam before the door is fully opened
  • Cavity vent control enables the user to release steam with a switch to ensure food does not get soggy
  • Up to 99 recipes can be uploaded through the USB connection port
  • Self-contained, self-flushing steam generator is isolated from the cooking chambers for instant steam recovery when the mode is changed
  • System alerts the operator when deliming is needed for the steam generator

Heavy-duty Door Construction

  • Double-pane glass windows on the doors let staff closely monitor the cooking process
  • Inner glass is hinged for convenient and thorough cleaning
  • Door-mounted condensate trough catches excess liquid
  • Top- and bottom-mounted door hinges are easy to adjust

Combi Oven Steamer, electric, double stacked, (14) 12" x 20" full size hotel pan or (7) 18" x 26" full size sheet pan capacity per compartment, Steam-on-Demand, Time to Delime indicator & Vario Steam®, 4-speed fan, core temperature probe, glass door, 13-position rack glides, (5) wire shelves, retractable hose reel, hardware & 4" low profile casters, 38.0 kW total, (2) 1/2 HP, cETLus, NSF, 208v/60/3ph

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

warning-small Important Prop 65 information for California residents.

Blodgett BCX-14E DBL Specifications

PDF Spec Sheet
Manufacturer Blodgett
Compartments Double
Heat Electric
Pan Capacity 14
Size Full Size
Steam Generator Boiler-Based
Steam Source Water Reservoir
Warranty 1 years parts, 1 year labor, No additional year door warranty
Phase 3
Voltage 208
Hertz 60
Weight 1260.00
Blodgett BCX-14E DBL Certifications
  • NSF
  • ETL
