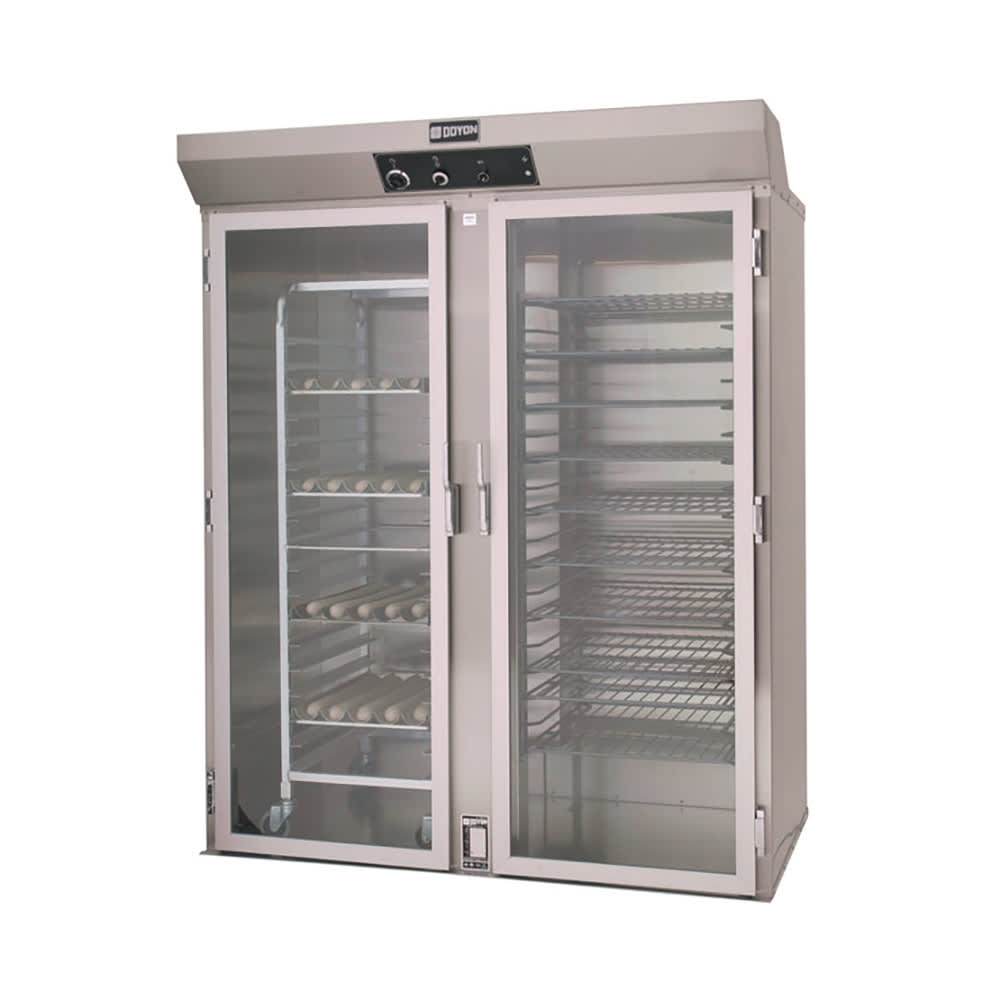

Doyon E236TLO Roll-In Proofer For 2 Double Or 4 Single Racks, 120 240v/1ph
$16,359.00 /Each
Web price, call us!
Selected Voltage: 240V, 1 Phase
| 208V, 1 Phase |
| 240V, 1 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Doyon E236TLO Description
The Doyon E236TLO proofing cabinet uses its heating system to spread heat and humidity evenly. It ranges from 90 to 110 degrees Fahrenheit and relative humidity stays around 95 percent. Time counts down electronically on the control panel. Four single racks or two double racks fit inside the cabinet, which is accessible by opening the pull-handle doors. Since the doors are clear, proofing product is visible without interrupting the process. Bright lights shine on the racks for additional visibility. This proofer has an aluminum interior floor that resists corrosion.
Product Details
- Accepts 4 single racks or 2 double racks
- Temperature range: 90-110 degrees F
- Maximum relative humidity: 95 percent
- Heat and humidity are spread evenly throughout the cabinet by the heating system
- Time counts down on an electric timer
- Resists rust, stains, and dents with its stainless steel construction
- Floor resists scratches and stains because it is made of aluminum
- Doors have pull handles
- Lights shine on the dough to make it visible
- Automatic water entry
- No drain is required
- 1⁄4-in. NPT water inlet
Dimensions & Utilities
- 771⁄2 in. W x 481⁄2 in. D x 84 in. H
- 7.2 kW, 31 A
- 120-240 V/60 Hz/1 ph
*Free shipping on Doyon E236TLO within the 48 contiguous states.
From The Manufacturer
Proofer Cabinet, roll-in, two-section, capacity two (TLOI) double racks or four single racks, solid state heat/humidity controls, auto. water entry, full view glass doors, stainless steel interior and exterior, 120-240v/60/1ph
*Image may not depict product color, inclusions or accessories.
Doyon E236TLO Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Doyon |
| Application | Heat & Humidity |
| Construction | Stainless Steel |
| Control Location | Top |
| Controls | Dial |
| Depth (in) | 48.5 |
| Door Design | Full |
| Door Type | Glass |
| Heat | Electric |
| Height (in) | 84 |
| Hertz | 60 |
| kW | 7.2 |
| Load Type | Roll In |
| No. of Doors | 2 |
| Phase | 1 |
| Product | Proofing Cabinets |
| Product Type | Food Warming Equipment |
| Rack Capacity | 4 |
| Sections | 2 |
| Size | Full Height |
| Slide Type | None |
| Type | Non-Insulated |
| Voltage | 120/240 |
| Warranty | 2-year Limited Parts; 1-year Labor |
| Width (in) | 77.5 |
| Weight | 900.00 |
