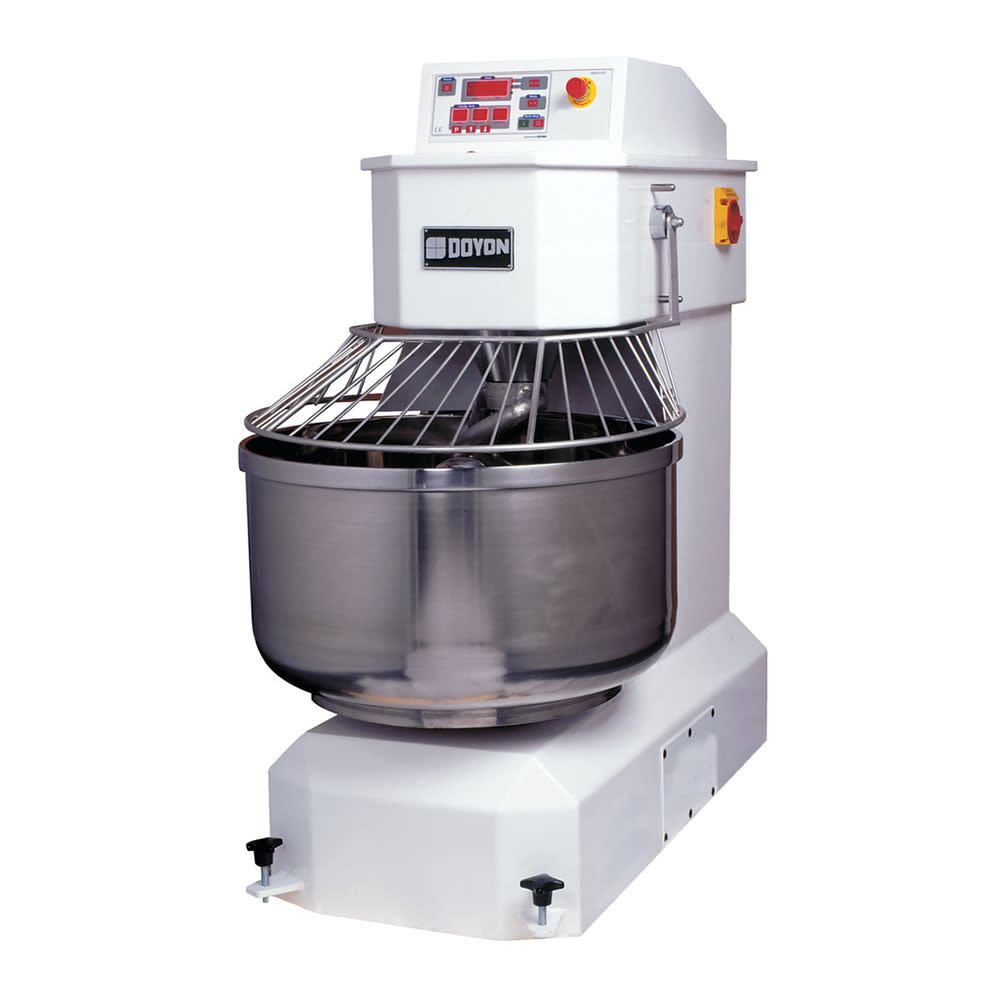

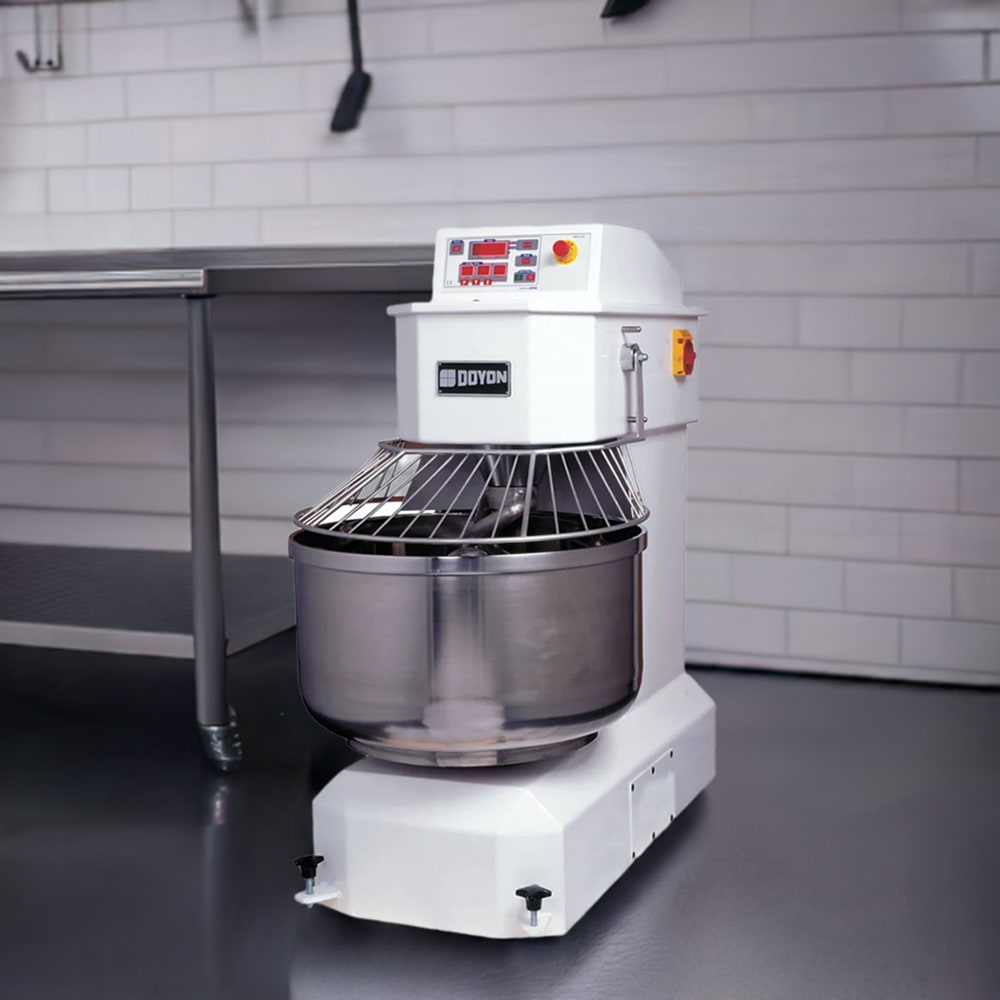

Doyon AEF050 100 qt Spiral Mixer - Floor Model, 208-240v, 3ph

Image may not depict product color, inclusions or accessories.

KaTom #: 013-AEF050 • MPN: AEF050
Ships Free

Typically ships within 1 - 3 business days

(0 reviews)Write a Review
Price: $18,190.15
Login or call us for more info!

Image may not depict product color, inclusions or accessories.

Doyon AEF050 Description


The Doyon AEF050 spiral mixer has a stainless steel bowl with an elevated center that eliminates the need for a dough feeder post. Its bowl guard is made of stainless steel and has a safety interlock that halts operation while the piece is open. This mixer can make bread, pizza, bagels, and more. The bowl and hook each have their own heavy-duty motor, and an innovative torque transmission reduces noise and vibration from heavy loads. The Doyon AEF050 spiral mixer can be moved around on its mounted casters and has nine programmable speeds and time settings with manual or digital controls.

Product Details

  • Stainless steel bowl with a high center eliminates the need for a dough feeder post
  • Spiral hook operates efficiently
  • Separate motors for the hook and bowl
  • Slip-resistant belt is durable and supports tough mixes
  • Superior torque transmission removes vibration and noise from heavy loads
  • Drain for bowl cleaning
  • Quick-locking device secures the mixer in place while mixing
  • Prevents dough from overheating, extends yeast growth, and improves gluten development
  • Stainless steel bowl guard has a safety interlock that stops operation when open
  • Durable, enamel-coated frame facilitates cleaning
  • Motor overload protection
  • 9 programmable time settings and speeds
  • 2 speeds for efficient operation
  • Manual or digital controls
  • Digital display of mixing time
  • Mounted on casters
  • 100-qt. bowl capacity
  • Flour capacity: 7-110 lbs.
  • Dough capacity: 12-175 lbs.
  • 20 A, 7 HP motor and 112 HP motor
  • 208-240 V/50-60 Hz/3 ph, NEMA 15-30P plug
  • Overall dimensions: 2658 in. W x 4714 in. D x 57116 in. H
  • ETL-sanitation and cETLus listed

Check out our mixer buyers’ guide to learn more about these units.

Spiral Mixer, 175 lb. dough capacity, 2 speeds, programmable digital control, stationary stainless steel bowl, safety guard & mixing tools, cast iron frame with enamel coated steel finish, 7 HP & 1-1/2 HP, 208-240/60/3-ph, 20 amps, NEMA 15-30P

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

Doyon AEF050 Specifications

PDF Spec Sheet
Manufacturer Doyon
Warranty 2 year parts & 1 year labor
Color White
Cord Attached Yes
Design Floor Model
Dough Capacity (lbs) 175
Flour Capacity (lbs) 110
Hertz 60
HP 7
Speeds 2
Type Spiral Mixer (Dough & Pizza)
Voltage 208/240
Transmission Belt Driven
Phase 3
Product Mixer
Product Type Food Prep Equipment
Bowl Capacity (qts) 100
Controls Digital
Special Features Includes Accessories
Bowl hp 1-1/2
Weight 1175.00
